VgMyNavigationHelper Class Reference

This class a helper for natural navigation management. More...

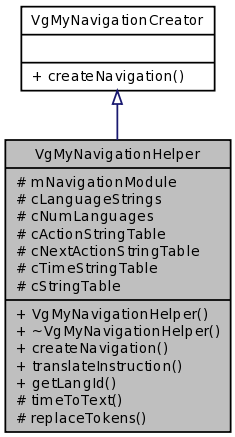

Inheritance diagram for VgMyNavigationHelper:

Collaboration diagram for VgMyNavigationHelper:

List of all members.

Classes
struct	VgTranslatedInstruction
	This structure holds the result of a instruciton translation. More...
Public Types
enum	StringType {   eStringFor, eStringThen, eStringAnd, eStringNear,   eStringUsing, eStringCount }
	This enum is used as an identifier for localized versions of navigation texts. More...
Public Member Functions
	VgMyNavigationHelper (VgNavigationModule::VgINavigationModule *pNavModule)
	Class constructor.
virtual	~VgMyNavigationHelper ()
	Class destructor.
void	createNavigation (VgNavigationModule::VgINavigationRequestParameters &pParameters)
	Implementation of interface : VgMyNavigationCreator.
Static Public Member Functions
static void	translateInstruction (VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigationInstruction > const &pInstruction, VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &pNavigation, VgTranslatedInstruction &pTranslated, VgMapModule::VgIMapModule &pMapModule, int pLang=0)
	This static method is used to translate a navigation instruction into a detailed message, along with other instruction-related data.
static int	getLangId (const std::string &pLangSr)
	Thi static method is used to get the integer lang id corresponding to a named language.
Static Protected Member Functions
static std::string	timeToText (float pTimeInMinutes, int pLang)
	Utility static method to generate a natural language "fuzzy" string for instruction duration.
static void	replaceTokens (std::string &pStringWithTokens, VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigationInstruction > const &pInstructionCurrent, VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigationInstruction > const &pInstructionNext)
	Takes a language string with tokens, then replaces those tokens with contextual data.
Protected Attributes
VgNavigationModule::VgINavigationModule *	mNavigationModule
	The navigationModule this helper is built on.
Static Protected Attributes
static const std::string	cLanguageStrings [2]
	The language identifiers.
static const size_t	cNumLanguages = sizeof(cLanguageStrings)/sizeof(std::string)
	The number of supported languages.
static const std::string	cActionStringTable [cNumLanguages][VgNavigationModule::eVgManeuverTypeMax]
	Action string table for localization.
static const std::string	cNextActionStringTable [cNumLanguages][VgNavigationModule::eVgManeuverTypeMax]
	Next action string table for localization (fr/en)
static const std::string	cTimeStringTable [cNumLanguages][3]
	Time string table for localization (fr/en)
static const std::string	cStringTable [cNumLanguages][eStringCount]
	Link words string table for localization (fr/en)

---

Detailed Description

This class a helper for natural navigation management.

---

Member Enumeration Documentation

enum VgMyNavigationHelper::StringType

This enum is used as an identifier for localized versions of navigation texts.

Enumerator:

eStringFor	Duration link word ("for" in English, "pendant" in French)
eStringThen	Duration link word ("then" in English, "puis" in French)
eStringAnd	Duration link word ("and" in English, "et" in French)
eStringNear	Duration link word ("near" in English, "à proximité de" in French)
eStringUsing	Duration link word ("using" in English, "en empruntant" in French)
eStringCount	Last entry does not identify a string it is the number of strings.

---

Constructor & Destructor Documentation

VgMyNavigationHelper::VgMyNavigationHelper

(

VgNavigationModule::VgINavigationModule *

pNavModule )

Class constructor.

Parameters:

pNavModule

The valid navigation module that will be used.

virtual VgMyNavigationHelper::~VgMyNavigationHelper

(

)

[virtual]

Class destructor.

---

Member Function Documentation

void VgMyNavigationHelper::createNavigation

(

VgNavigationModule::VgINavigationRequestParameters &

pParameters )

[virtual]

Implementation of interface : VgMyNavigationCreator.

Implements VgMyNavigationCreator.

static int VgMyNavigationHelper::getLangId

(

const std::string &

pLangSr )

[static]

Thi static method is used to get the integer lang id corresponding to a named language.

Parameters:

pLangStr

The string identifying the language. Possible values (as of today) are "fr" or "en" or "fr_XX" or "en_XX"

Returns:

The language index to use with the translateInstruction method. Default language (0) if requested language doesn't exist.

static void VgMyNavigationHelper::replaceTokens	(	std::string &	pStringWithTokens,
		VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigationInstruction > const &	pInstructionCurrent,
		VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigationInstruction > const &	pInstructionNext
	)		[static, protected]

Takes a language string with tokens, then replaces those tokens with contextual data.

Parameters:

pStringWithTokens	The language string containing the tokens.
pInstructionCurrent	The current isntruction.
pInstructionNext	The next instruction.

static std::string VgMyNavigationHelper::timeToText	(	float	pTimeInMinutes,
		int	pLang
	)		[static, protected]

Utility static method to generate a natural language "fuzzy" string for instruction duration.

static void VgMyNavigationHelper::translateInstruction	(	VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigationInstruction > const &	pInstruction,
		VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &	pNavigation,
		VgTranslatedInstruction &	pTranslated,
		VgMapModule::VgIMapModule &	pMapModule,
		int	pLang = 0
	)		[static]

This static method is used to translate a navigation instruction into a detailed message, along with other instruction-related data.

Parameters:

pInstruction	The instruction to translate.
pNavigation	The navigation object the instruction comes from.
pTranslated	A reference to the structure to feed with details.
pMapModule	The application's VgMapModule (needed for near places and floor heights).
pLang	The index of the language to use (see getLangId).

See also:

VgMyNavigationHelper::getLangId

---

Member Data Documentation

const std::string VgMyNavigationHelper::cActionStringTable[cNumLanguages][VgNavigationModule::eVgManeuverTypeMax] [static, protected]

Action string table for localization.

const std::string VgMyNavigationHelper::cLanguageStrings[2] [static, protected]

The language identifiers.

const std::string VgMyNavigationHelper::cNextActionStringTable[cNumLanguages][VgNavigationModule::eVgManeuverTypeMax] [static, protected]

Next action string table for localization (fr/en)

const size_t VgMyNavigationHelper::cNumLanguages = sizeof(cLanguageStrings)/sizeof(std::string) [static, protected]

The number of supported languages.

const std::string VgMyNavigationHelper::cStringTable[cNumLanguages][eStringCount] [static, protected]

Link words string table for localization (fr/en)

const std::string VgMyNavigationHelper::cTimeStringTable[cNumLanguages][3] [static, protected]

Time string table for localization (fr/en)

VgNavigationModule::VgINavigationModule* VgMyNavigationHelper::mNavigationModule [protected]

The navigationModule this helper is built on.

---

The documentation for this class was generated from the following file:

• VgMyNavigationHelper.h
