Creates a VgMyRoutingHelper which simplifies the task of managing a route and showing/hiding it when changing floors (layers). More...

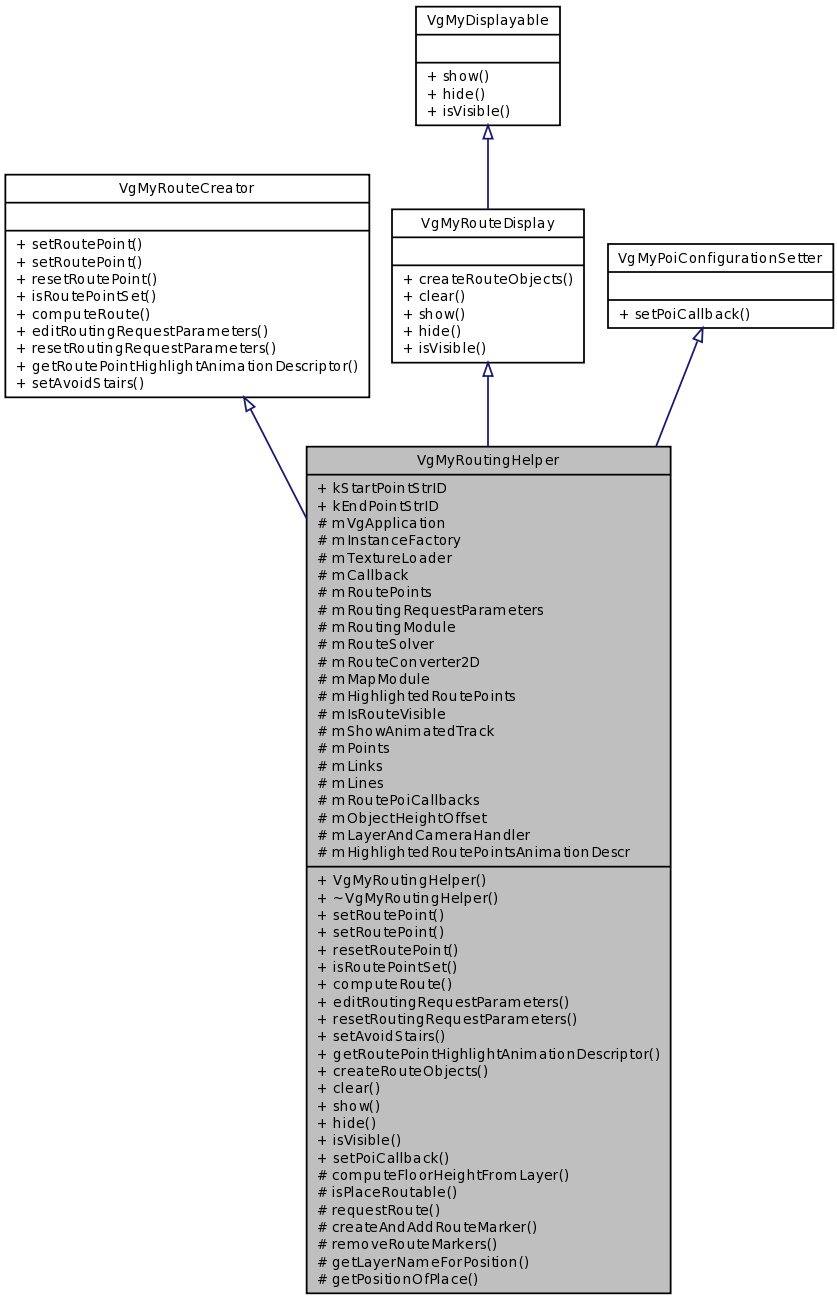

Inheritance diagram for VgMyRoutingHelper:

[legend]

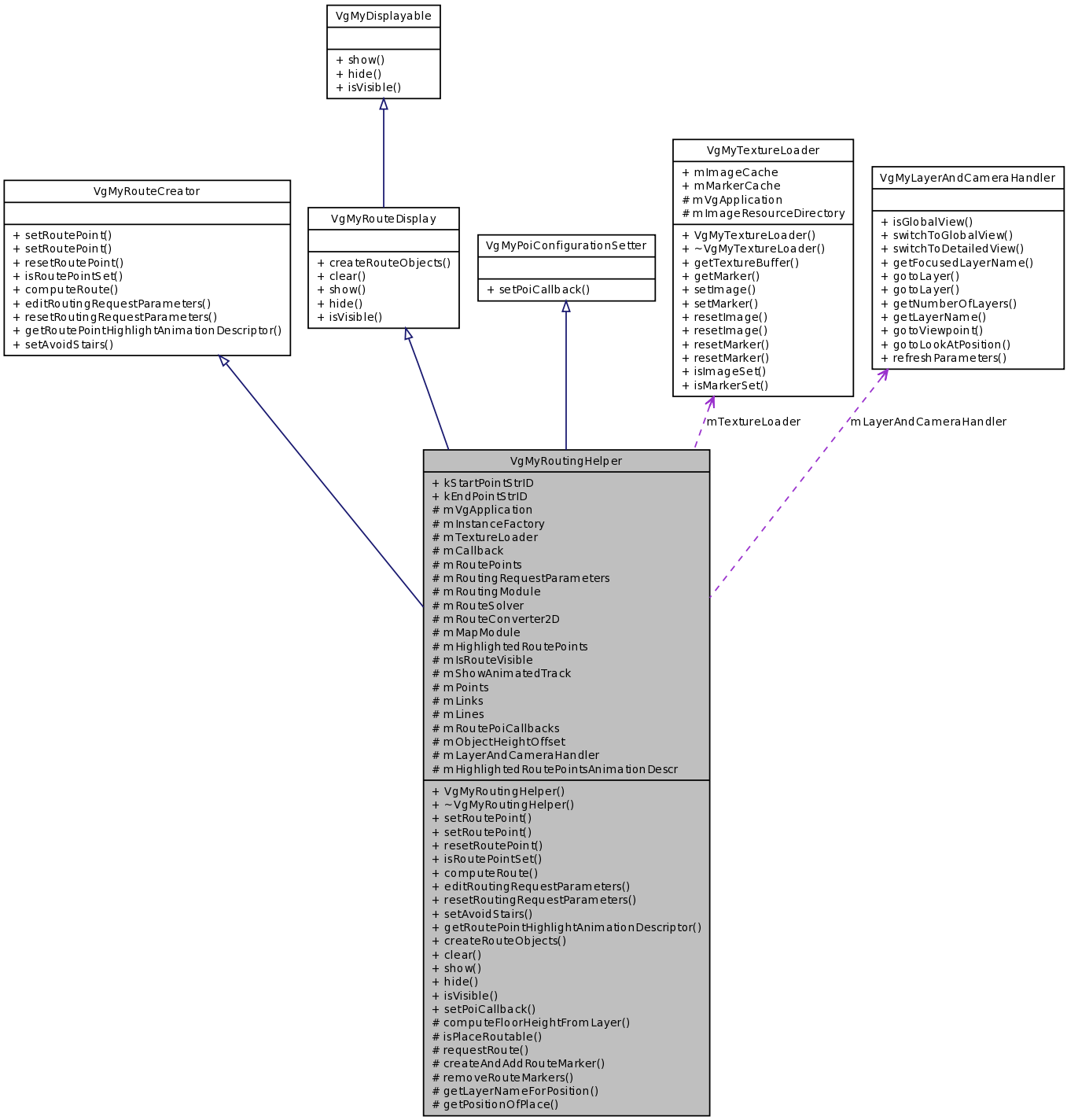

Collaboration diagram for VgMyRoutingHelper:

[legend]

List of all members.

Classes
struct	LineObject
struct	PointObject
Public Member Functions
	VgMyRoutingHelper (VgApplication::VgIApplication pVgApplication, VgMyTextureLoader pTextureLoader, VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback >const &pCallback, VgMyLayerAndCameraHandler *pLayerAndCamerHandler)
virtual	~VgMyRoutingHelper ()
virtual bool	setRoutePoint (VgMyRouteCreator::RoutePoint pPoint, const std::string &pPlaceID)
	Sets a RoutePoint to a specific place.
virtual bool	setRoutePoint (RoutePoint pPoint, VgEngine::VgPosition pPosition)
	Sets a RoutePoint to a position within the map.
virtual void	resetRoutePoint (VgMyRouteCreator::RoutePoint pPoint)
	Resets the place ID associated with a point.
virtual bool	isRoutePointSet (VgMyRouteCreator::RoutePoint pPoint)
virtual void	computeRoute ()
	Computes a route.
virtual VgRoutingModule::VgIRouteRequestParameters *	editRoutingRequestParameters ()
	Returns a reference to the routing request parameters that computeRoute uses.
virtual void	resetRoutingRequestParameters ()
	Resets the routing request parameters to their initial state.
virtual void	setAvoidStairs (bool pDisabledFriendly)
	Sets up the routing request parameters to include/exclude non disabled-friendly attributes.
VgEngine::VgRefPtr < VgEngine::VgAnimationDescriptor >	getRoutePointHighlightAnimationDescriptor ()
	Returns the descriptor of an animation intended to emphasize routing points.
bool	createRouteObjects (VgEngine::VgConstRefPtr< VgRoutingModule::VgIRoute > const &pRoute)
	Creates the geometry objects to be added to the view to represent the route.
void	clear ()
	Clears the object.
void	show ()
	Declaration from interface : VgMyDisplayable.
void	hide ()
	Hides this Object.
bool	isVisible ()
void	setPoiCallback (const std::string &pIdentifier, VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback >const &pCallback)
	Sets a callback for a specific POI identifier.
Static Public Attributes
static const std::string	kStartPointStrID
static const std::string	kEndPointStrID
Protected Types
typedef std::map< std::string, VgEngine::VgRefPtr < Vg3DModule::VgIGeometryCallback > >	POICallbackMap
Protected Member Functions
double	computeFloorHeightFromLayer (const std::string &pLayer) const
bool	isPlaceRoutable (const std::string &pID)
void	requestRoute (const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode > pOrigin, const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode > pDestination)
	Requests a route from the routing module given some routing nodes.
void	createAndAddRouteMarker (VgMyRouteCreator::RoutePoint pPoint, const VgEngine::VgPosition &pPosition)
void	removeRouteMarkers ()
std::string	getLayerNameForPosition (VgEngine::VgPosition pPosition)
VgEngine::VgPosition	getPositionOfPlace (const std::string &pPlaceId)
Protected Attributes
VgApplication::VgIApplication *	mVgApplication
VgEngine::VgInstanceFactory *	mInstanceFactory
VgMyTextureLoader *	mTextureLoader
VgEngine::VgRefPtr < VgRoutingModule::VgIRouteCallback >	mCallback
std::map < VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr < VgRoutingModule::VgIRoutingNode > >	mRoutePoints
VgRoutingModule::VgIRouteRequestParameters	mRoutingRequestParameters
VgRoutingModule::VgIRoutingModule *	mRoutingModule
VgRoutingModule::VgIRoutingSolver *	mRouteSolver
VgRoutingModule::VgIRouteConverter *	mRouteConverter2D
VgMapModule::VgIMapModule *	mMapModule
std::map < VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr < Vg3DModule::VgPoint > >	mHighlightedRoutePoints
bool	mIsRouteVisible
bool	mShowAnimatedTrack
std::vector< PointObject >	mPoints
std::list< VgEngine::VgRefPtr < Vg3DModule::VgLink > >	mLinks
std::vector< LineObject >	mLines
POICallbackMap	mRoutePoiCallbacks
float	mObjectHeightOffset
VgMyLayerAndCameraHandler *	mLayerAndCameraHandler
VgEngine::VgRefPtr < VgEngine::VgAnimationDescriptor >	mHighlightedRoutePointsAnimationDescr

Detailed Description

Creates a VgMyRoutingHelper which simplifies the task of managing a route and showing/hiding it when changing floors (layers).

It can configure the images used for the route.

Member Typedef Documentation

typedef std::map<std::string, VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback > > VgMyRoutingHelper::POICallbackMap [protected]

Constructor & Destructor Documentation

VgMyRoutingHelper::VgMyRoutingHelper	(	VgApplication::VgIApplication *	pVgApplication,
		VgMyTextureLoader *	pTextureLoader,
		VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback >const &	pCallback,
		VgMyLayerAndCameraHandler *	pLayerAndCamerHandler
	)

virtual VgMyRoutingHelper::~VgMyRoutingHelper ( ) [virtual]

Member Function Documentation

void VgMyRoutingHelper::clear ( ) [virtual]

Clears the object.

Implements VgMyRouteDisplay.

double VgMyRoutingHelper::computeFloorHeightFromLayer ( const std::string & pLayer ) const [protected]

virtual void VgMyRoutingHelper::computeRoute ( ) [virtual]

Computes a route.

Remarks:: Works only if both end points are set.

Implements VgMyRouteCreator.

void VgMyRoutingHelper::createAndAddRouteMarker	(	VgMyRouteCreator::RoutePoint	pPoint,
		const VgEngine::VgPosition &	pPosition
	)		`[protected]`

bool VgMyRoutingHelper::createRouteObjects ( VgEngine::VgConstRefPtr< VgRoutingModule::VgIRoute > const & pRoute ) [virtual]

Creates the geometry objects to be added to the view to represent the route.

Parameters:

pRoute The object containing the route data to represent.

Returns:: true if route objects where created successfully, otherwise false.

Implements VgMyRouteDisplay.

virtual VgRoutingModule::VgIRouteRequestParameters* VgMyRoutingHelper::editRoutingRequestParameters ( ) [virtual]

Returns a reference to the routing request parameters that computeRoute uses.

Returns:: a reference to the routing request parameters to be used on the next computeRoute.

Implements VgMyRouteCreator.

std::string VgMyRoutingHelper::getLayerNameForPosition ( VgEngine::VgPosition pPosition ) [protected]

VgEngine::VgPosition VgMyRoutingHelper::getPositionOfPlace ( const std::string & pPlaceId ) [protected]

VgEngine::VgRefPtr< VgEngine::VgAnimationDescriptor > VgMyRoutingHelper::getRoutePointHighlightAnimationDescriptor ( ) [virtual]

Returns the descriptor of an animation intended to emphasize routing points.

Implements VgMyRouteCreator.

void VgMyRoutingHelper::hide ( ) [virtual]

Hides this Object.

No effect if it is already hidden.

Implements VgMyRouteDisplay.

bool VgMyRoutingHelper::isPlaceRoutable ( const std::string & pID ) [protected]

Returns:: true if the pID is routable

virtual bool VgMyRoutingHelper::isRoutePointSet ( VgMyRouteCreator::RoutePoint pPoint ) [virtual]

Parameters:

pPoint RoutePoint to test.

Returns:: True if the specified point is already set.

Implements VgMyRouteCreator.

bool VgMyRoutingHelper::isVisible ( ) [virtual]

Returns:: TRUE if this Object is visible (i.e. shown). FALSE otherwise.

Implements VgMyRouteDisplay.

void VgMyRoutingHelper::removeRouteMarkers ( ) [protected]

void VgMyRoutingHelper::requestRoute	(	const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode >	pOrigin,
		const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode >	pDestination
	)		`[protected]`

Requests a route from the routing module given some routing nodes.

Parameters:

pOrigin	routing node to start from
pDestination	routing node to finish at

virtual void VgMyRoutingHelper::resetRoutePoint ( VgMyRouteCreator::RoutePoint pPoint ) [virtual]

Resets the place ID associated with a point.

Parameters:

pPoint RoutePoint to reset.

Implements VgMyRouteCreator.

virtual void VgMyRoutingHelper::resetRoutingRequestParameters ( ) [virtual]

Resets the routing request parameters to their initial state.

Implements VgMyRouteCreator.

virtual void VgMyRoutingHelper::setAvoidStairs ( bool pDisabledFriendly ) [virtual]

Sets up the routing request parameters to include/exclude non disabled-friendly attributes.

Parameters:

pDisabledFriendly True if disabled friendly routing is wanted, false if not

Implements VgMyRouteCreator.

void VgMyRoutingHelper::setPoiCallback	(	const std::string &	pIdentifier,
		VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback >const &	pCallback
	)		`[virtual]`

Sets a callback for a specific POI identifier.

Implements VgMyPoiConfigurationSetter.

virtual bool VgMyRoutingHelper::setRoutePoint	(	RoutePoint	pPoint,
		VgEngine::VgPosition	pPosition
	)		`[virtual]`

Sets a RoutePoint to a position within the map.

Finds the closest routing node from the routing network to the given position.

pPosition.getMZOrAltitude() is used to determine what layer the position is associated to.

Use the method VgMapModule::VgIMapModule::getHeightRangeForLayer() to find the appropriate altitude value for pPosition. For example:

        ...
        double lFloorHeight = 0.0;

        float pHeightMax;
        float pHeightMin;
        std::sring lLayerName = "0";
        if ( mMapModule->getHeightRangeForLayer(pLayer, pHeightMax, pHeightMin))
        {
            lFloorHeight = ((pHeightMax + pHeightMin) / 2);
        }

        lPosition.mZOrAltitude = lFloorHeight;
        ...

Parameters:

pPoint	RoutePoint to set
pPosition	Position to associates with pPoint.

Returns:: False if the pPosition is not routable.

Implements VgMyRouteCreator.

virtual bool VgMyRoutingHelper::setRoutePoint	(	VgMyRouteCreator::RoutePoint	pPoint,
		const std::string &	pPlaceID
	)		`[virtual]`

Sets a RoutePoint to a specific place.

Parameters:

pPoint	RoutePoint to set
pPlaceID	Place to associates with pPoint.

Returns:: False if the specified placeID is not routable.

Implements VgMyRouteCreator.

void VgMyRoutingHelper::show ( ) [virtual]

Declaration from interface : VgMyDisplayable.

Implements VgMyRouteDisplay.

Member Data Documentation

const std::string VgMyRoutingHelper::kEndPointStrID [static]

const std::string VgMyRoutingHelper::kStartPointStrID [static]

VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback > VgMyRoutingHelper::mCallback [protected]

std::map<VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr< Vg3DModule::VgPoint > > VgMyRoutingHelper::mHighlightedRoutePoints [protected]

VgEngine::VgRefPtr< VgEngine::VgAnimationDescriptor > VgMyRoutingHelper::mHighlightedRoutePointsAnimationDescr [protected]

VgEngine::VgInstanceFactory* VgMyRoutingHelper::mInstanceFactory [protected]

bool VgMyRoutingHelper::mIsRouteVisible [protected]

VgMyLayerAndCameraHandler* VgMyRoutingHelper::mLayerAndCameraHandler [protected]

std::vector< LineObject > VgMyRoutingHelper::mLines [protected]

std::list< VgEngine::VgRefPtr< Vg3DModule::VgLink > > VgMyRoutingHelper::mLinks [protected]

VgMapModule::VgIMapModule* VgMyRoutingHelper::mMapModule [protected]

float VgMyRoutingHelper::mObjectHeightOffset [protected]

std::vector< PointObject > VgMyRoutingHelper::mPoints [protected]

VgRoutingModule::VgIRouteConverter* VgMyRoutingHelper::mRouteConverter2D [protected]

POICallbackMap VgMyRoutingHelper::mRoutePoiCallbacks [protected]

std::map<VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr<VgRoutingModule::VgIRoutingNode> > VgMyRoutingHelper::mRoutePoints [protected]

VgRoutingModule::VgIRoutingSolver* VgMyRoutingHelper::mRouteSolver [protected]

VgRoutingModule::VgIRoutingModule* VgMyRoutingHelper::mRoutingModule [protected]

VgRoutingModule::VgIRouteRequestParameters VgMyRoutingHelper::mRoutingRequestParameters [protected]

bool VgMyRoutingHelper::mShowAnimatedTrack [protected]

VgMyTextureLoader* VgMyRoutingHelper::mTextureLoader [protected]

VgApplication::VgIApplication* VgMyRoutingHelper::mVgApplication [protected]

The documentation for this class was generated from the following file:

VgMyRoutingHelper.h
