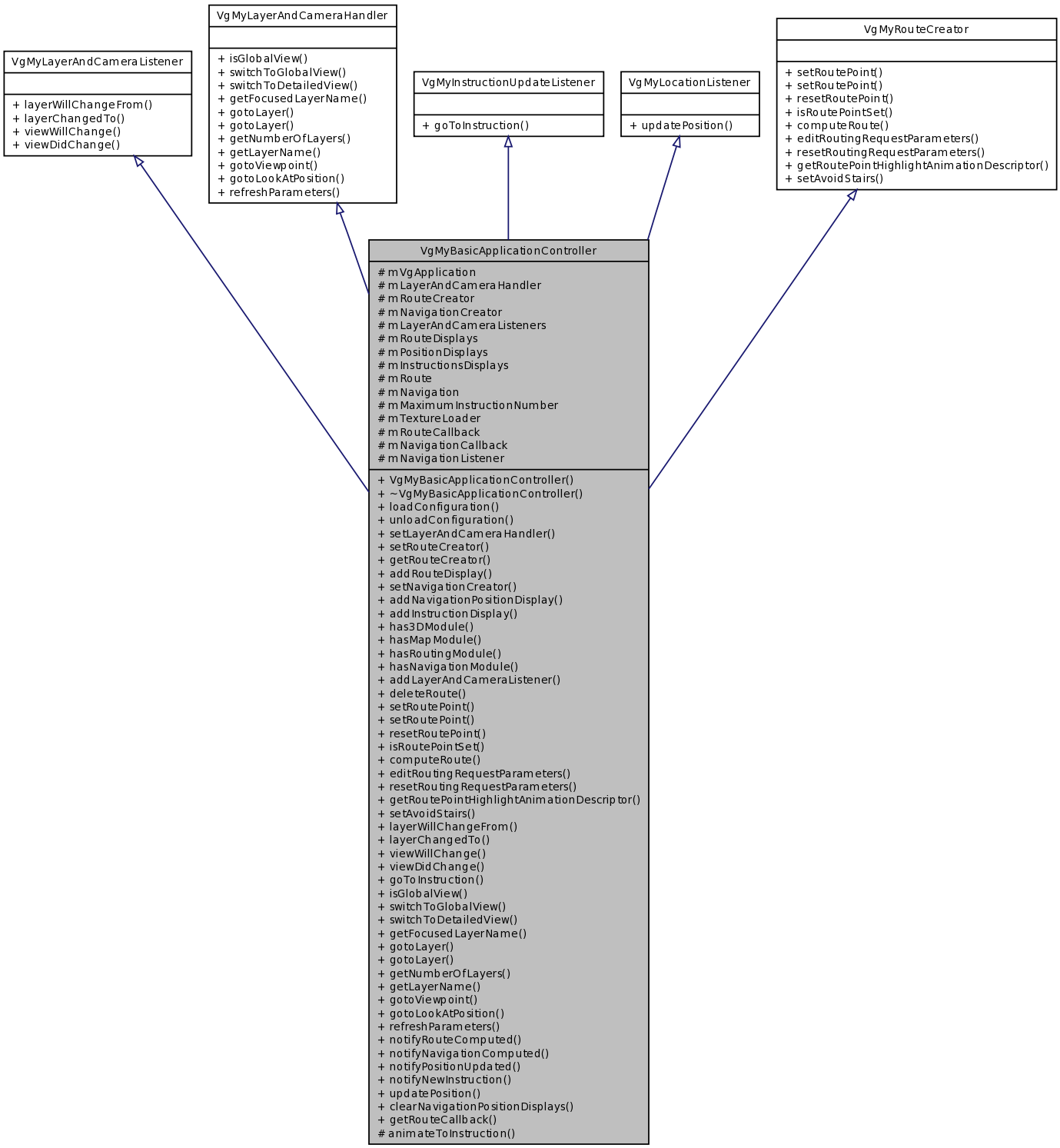

Inheritance diagram for VgMyBasicApplicationController:

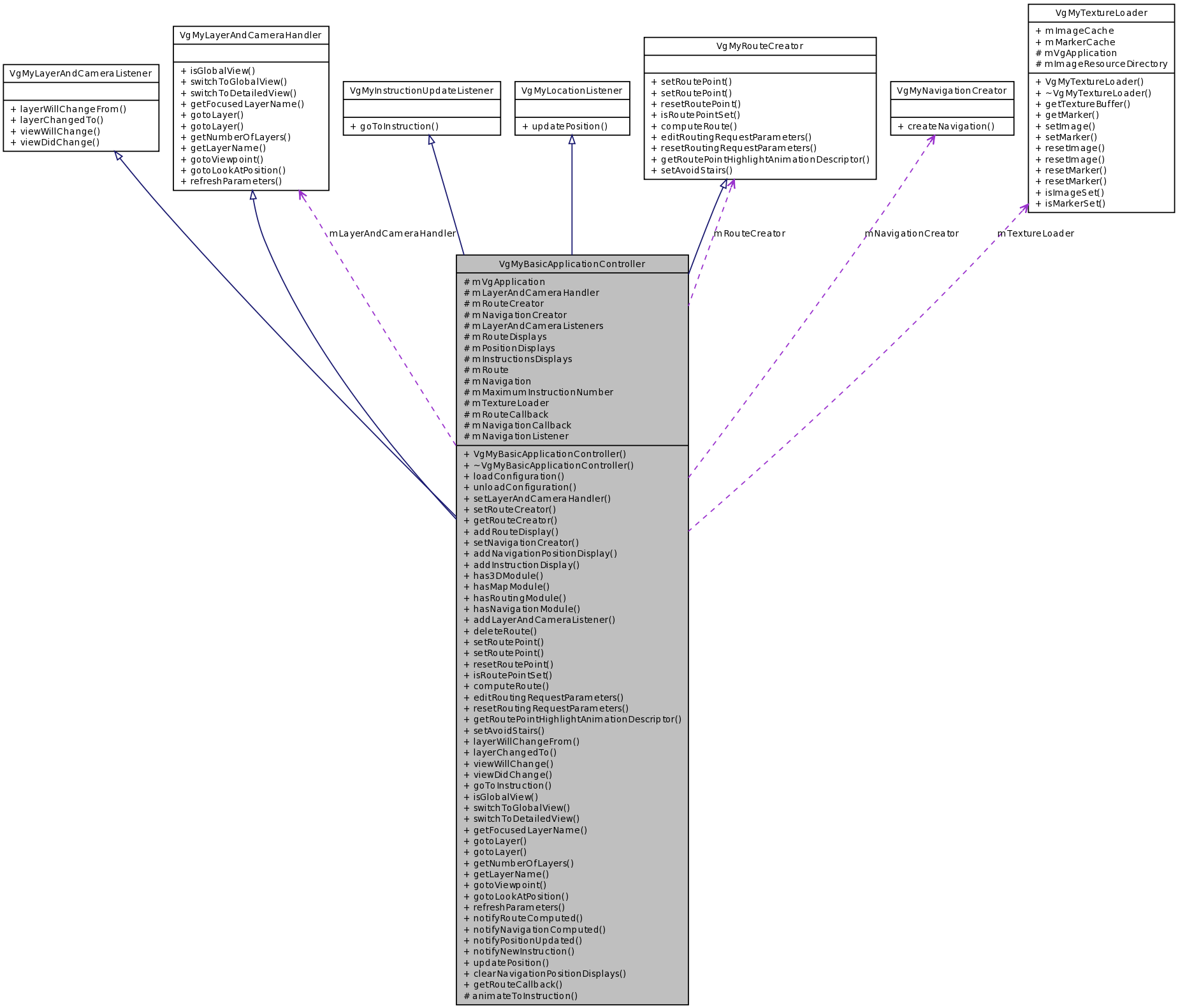

Collaboration diagram for VgMyBasicApplicationController:

Public Member Functions
	VgMyBasicApplicationController (VgApplication::VgIApplication &pApplication, VgMyTextureLoader *pTextureLoader)
virtual	~VgMyBasicApplicationController ()
bool	loadConfiguration (const std::string &pConfiguration, const unsigned int pSecretKey, const std::string &pLicenseURL, const int pDataset=0)
void	unloadConfiguration ()
void	setLayerAndCameraHandler (VgMyLayerAndCameraHandler *pHandler)
void	setRouteCreator (VgMyRouteCreator *pCreator)
VgMyRouteCreator *	getRouteCreator () const
void	addRouteDisplay (VgMyRouteDisplay *pDisplay)
void	setNavigationCreator (VgMyNavigationCreator *pCreator)
void	addNavigationPositionDisplay (VgMyNavigationPositionDisplay *pDisplay)
void	addInstructionDisplay (VgMyInstructionDisplay *pDisplay)
bool	has3DModule () const
bool	hasMapModule () const
bool	hasRoutingModule () const
bool	hasNavigationModule () const
void	addLayerAndCameraListener (VgMyLayerAndCameraListener *pListener)
void	deleteRoute ()
bool	setRoutePoint (VgMyRouteCreator::RoutePoint pPoint, const std::string &pPlaceID)
	Sets a RoutePoint to a specific place.
bool	setRoutePoint (VgMyRouteCreator::RoutePoint pPoint, const VgEngine::VgPosition pPosition)
	Sets a RoutePoint to a position within the map.
void	resetRoutePoint (VgMyRouteCreator::RoutePoint pPoint)
	Resets the place ID associated with a point.
bool	isRoutePointSet (VgMyRouteCreator::RoutePoint pPoint)
void	computeRoute ()
	Computes a route.
VgRoutingModule::VgIRouteRequestParameters *	editRoutingRequestParameters ()
	Returns a reference to the routing request parameters that computeRoute uses.
void	resetRoutingRequestParameters ()
	Resets the routing request parameters to their initial state.
virtual VgEngine::VgRefPtr < VgEngine::VgAnimationDescriptor >	getRoutePointHighlightAnimationDescriptor ()
	Returns the descriptor of an animation intended to emphasize routing points.
virtual void	setAvoidStairs (bool pDisabledFriendly)
	Sets up the routing request parameters to include/exclude non disabled-friendly attributes.
void	layerWillChangeFrom (VgMyLayerAndCameraHandler *pSender, const std::string &pFloorFrom, const std::string &pFloorTo)
	Notification that the layer focus is about to change.
void	layerChangedTo (VgMyLayerAndCameraHandler *pSender, const std::string &pFloorFrom, const std::string &pFloorTo)
	Notification that the layer focus did change.
void	viewWillChange (VgMyLayerAndCameraHandler *pSender, const bool pDoesChangeFromGlobalToDetailed)
	Notification that the view will change its 'mode' (global or detailed)
void	viewDidChange (VgMyLayerAndCameraHandler *pSender, const bool pDoesChangeFromGlobalToDetailed)
	Notification that the view has changed its 'mode' (global or detailed)
void	goToInstruction (const unsigned int pInstructionIndex)
	Updates the current instruction.
bool	isGlobalView ()
void	switchToGlobalView (bool pIsAnimated=true)
	Switches from the detailledView to the global view.
void	switchToDetailedView (bool pIsAnimated=true)
	Switches from the global to the detailled view.
const std::string &	getFocusedLayerName ()
	Gets the focused layer's name.
void	gotoLayer (const std::string &pLayerName, bool pIsAnimated=true)
	Focus a specific layer.
void	gotoLayer (const unsigned int pLayerIndex, bool pIsAnimated=true)
	Focus a specific layer.
unsigned int	getNumberOfLayers ()
	Returns the number of layers.
bool	getLayerName (const unsigned int pLayerIndex, std::string &pLayerNameOut)
	Returns the layer name for a given indes.
void	gotoViewpoint (const VgEngine::VgIViewPoint &pViewPoint, const std::string &pLayerName, bool pIsAnimated=true)
	Moves the camera to a specific view point.
void	gotoLookAtPosition (const VgEngine::VgPosition &pPosition, const std::string &pLayerName, bool pIsAnimated=true)
	Moves the camera so that it is focused on a given position.
void	refreshParameters (unsigned int pWidth, unsigned int pHeight)
	Refreshes the inner parameters.
void	notifyRouteComputed (VgRoutingModule::VgRouteRequestStatus pStatus, VgEngine::VgRefPtr< VgRoutingModule::VgIRoute > const &pRoute)
bool	notifyNavigationComputed (VgNavigationModule::VgNavigationRequestStatus pStatus, VgEngine::VgRefPtr< VgNavigationModule::VgINavigation > const &pNavigation)
void	notifyPositionUpdated (VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &pNavigation, const VgEngine::VgPosition &pPosition, double pTime)
void	notifyNewInstruction (VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &pNavigation, unsigned int pIndex)
void	updatePosition (const VgEngine::VgPosition &pPosition)
	Updates the current position.
void	clearNavigationPositionDisplays ()
VgEngine::VgRefPtr < VgRoutingModule::VgIRouteCallback >	getRouteCallback ()
Protected Member Functions
void	animateToInstruction (VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &pNavigation, unsigned int pIndex)
Protected Attributes
VgApplication::VgIApplication &	mVgApplication
VgMyLayerAndCameraHandler *	mLayerAndCameraHandler
VgMyRouteCreator *	mRouteCreator
VgMyNavigationCreator *	mNavigationCreator
std::list < VgMyLayerAndCameraListener * >	mLayerAndCameraListeners
std::list< VgMyRouteDisplay * >	mRouteDisplays
std::list < VgMyNavigationPositionDisplay * >	mPositionDisplays
std::list < VgMyInstructionDisplay * >	mInstructionsDisplays
VgEngine::VgRefPtr < VgRoutingModule::VgIRoute >	mRoute
	Current Route of NULL if no route request succeed.
VgEngine::VgRefPtr < VgNavigationModule::VgINavigation >	mNavigation
	Current Navigation of NULL if no route request succeed.
unsigned int	mMaximumInstructionNumber
VgMyTextureLoader *	mTextureLoader
VgEngine::VgRefPtr < VgMyBasicRouteCallback >	mRouteCallback
VgEngine::VgRefPtr < VgMyBasicNavigationCallback >	mNavigationCallback
VgEngine::VgRefPtr < VgMyBasicNavigationListener >	mNavigationListener

Constructor & Destructor Documentation

VgMyBasicApplicationController::VgMyBasicApplicationController	(	VgApplication::VgIApplication &	pApplication,
		VgMyTextureLoader *	pTextureLoader
	)

virtual VgMyBasicApplicationController::~VgMyBasicApplicationController ( ) [virtual]

Member Function Documentation

void VgMyBasicApplicationController::addInstructionDisplay ( VgMyInstructionDisplay * pDisplay )

void VgMyBasicApplicationController::addLayerAndCameraListener ( VgMyLayerAndCameraListener * pListener )

void VgMyBasicApplicationController::addNavigationPositionDisplay ( VgMyNavigationPositionDisplay * pDisplay )

void VgMyBasicApplicationController::addRouteDisplay ( VgMyRouteDisplay * pDisplay )

void VgMyBasicApplicationController::animateToInstruction	(	VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &	pNavigation,
		unsigned int	pIndex
	)		`[protected]`

void VgMyBasicApplicationController::clearNavigationPositionDisplays ( )

void VgMyBasicApplicationController::computeRoute ( ) [virtual]

Computes a route.

Remarks:: Works only if both end points are set.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::deleteRoute ( )

VgRoutingModule::VgIRouteRequestParameters* VgMyBasicApplicationController::editRoutingRequestParameters ( ) [virtual]

Returns a reference to the routing request parameters that computeRoute uses.

Returns:: a reference to the routing request parameters to be used on the next computeRoute.

Implements VgMyRouteCreator.

const std::string& VgMyBasicApplicationController::getFocusedLayerName ( ) [virtual]

Gets the focused layer's name.

The "focused" layer is the one that is displayed in the detailled view. if the global view is displayed, the focused layer should be the most visible one.

Returns:: The focused layer's name.

Implements VgMyLayerAndCameraHandler.

bool VgMyBasicApplicationController::getLayerName	(	const unsigned int	pLayerIndex,
		std::string &	pLayerNameOut
	)		`[virtual]`

Returns the layer name for a given indes.

Parameters:

pLayerIndex	Layer index, should be less than getNumberOfLayers().
pLayerNameOut	string to set with layer name.

Returns:: true if name was set, false if pLayerIndex is greater or equal to getNumberOfLayers().

Implements VgMyLayerAndCameraHandler.

unsigned int VgMyBasicApplicationController::getNumberOfLayers ( ) [virtual]

Returns the number of layers.

Implements VgMyLayerAndCameraHandler.

VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback > VgMyBasicApplicationController::getRouteCallback ( ) [inline]

VgMyRouteCreator* VgMyBasicApplicationController::getRouteCreator ( ) const

virtual VgEngine::VgRefPtr< VgEngine::VgAnimationDescriptor > VgMyBasicApplicationController::getRoutePointHighlightAnimationDescriptor ( ) [virtual]

Returns the descriptor of an animation intended to emphasize routing points.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::goToInstruction ( const unsigned int pInstructionIndex ) [virtual]

Updates the current instruction.

Parameters:

pInstructionIndex The new instruction index to use as the current one.

Implements VgMyInstructionUpdateListener.

void VgMyBasicApplicationController::gotoLayer	(	const std::string &	pLayerName,
		bool	pIsAnimated = `true`
	)		`[virtual]`

Focus a specific layer.

Parameters:

pLayerName	Layer that will be focused. keeps current mode.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::gotoLayer	(	const unsigned int	pLayerIndex,
		bool	pIsAnimated = `true`
	)		`[virtual]`

Focus a specific layer.

Parameters:

pLayerName	Layer index which is associated with the returned list given by VgLayerManager::getLayers(). keeps current mode.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::gotoLookAtPosition	(	const VgEngine::VgPosition &	pPosition,
		const std::string &	pLayerName,
		bool	pIsAnimated = `true`
	)		`[virtual]`

Moves the camera so that it is focused on a given position.

The camera's view, heading, pitch are always conserved. The altitude of pPosition is automatically set to zero.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note:: If the stack is in global view, the camera will not change.

Parameters:

pPosition	The position to focus on.
pLayerName	The name of the layer associated with the position.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::gotoViewpoint	(	const VgEngine::VgIViewPoint &	pViewPoint,
		const std::string &	pLayerName,
		bool	pIsAnimated = `true`
	)		`[virtual]`

Moves the camera to a specific view point.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note:: If the stack is in global view, the camera will not change.

Parameters:

pViewPoint	The view point to associate with the camera
pLayerName	The layer which should be given the focus.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

bool VgMyBasicApplicationController::has3DModule ( ) const

bool VgMyBasicApplicationController::hasMapModule ( ) const

bool VgMyBasicApplicationController::hasNavigationModule ( ) const

bool VgMyBasicApplicationController::hasRoutingModule ( ) const

bool VgMyBasicApplicationController::isGlobalView ( ) [virtual]

Returns:: TRUE if the Handler displays the global view. FALSE if displaying the detailed view.

Implements VgMyLayerAndCameraHandler.

bool VgMyBasicApplicationController::isRoutePointSet ( VgMyRouteCreator::RoutePoint pPoint ) [virtual]

Parameters:

pPoint RoutePoint to test.

Returns:: True if the specified point is already set.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::layerChangedTo	(	VgMyLayerAndCameraHandler *	pSender,
		const std::string &	pFloorFrom,
		const std::string &	pFloorTo
	)		`[virtual]`

Notification that the layer focus did change.

Parameters:

pSender
pFloorFrom	The layer which previously had the focus.
pFloorTo	The layer which currently has the focus.

Remarks:: do not use, as it is not called yet, use layerWillChangeFrom.

Implements VgMyLayerAndCameraListener.

void VgMyBasicApplicationController::layerWillChangeFrom	(	VgMyLayerAndCameraHandler *	pSender,
		const std::string &	pFloorFrom,
		const std::string &	pFloorTo
	)		`[virtual]`

Notification that the layer focus is about to change.

Parameters:

pSender
pLayerFrom	The layer which currently has focus
pLayerTo	The layer which will soon have the focus

Implements VgMyLayerAndCameraListener.

bool VgMyBasicApplicationController::loadConfiguration	(	const std::string &	pConfiguration,
		const unsigned int	pSecretKey,
		const std::string &	pLicenseURL,
		const int	pDataset = `0`
	)

bool VgMyBasicApplicationController::notifyNavigationComputed	(	VgNavigationModule::VgNavigationRequestStatus	pStatus,
		VgEngine::VgRefPtr< VgNavigationModule::VgINavigation > const &	pNavigation
	)

void VgMyBasicApplicationController::notifyNewInstruction	(	VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &	pNavigation,
		unsigned int	pIndex
	)

void VgMyBasicApplicationController::notifyPositionUpdated	(	VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &	pNavigation,
		const VgEngine::VgPosition &	pPosition,
		double	pTime
	)

void VgMyBasicApplicationController::notifyRouteComputed	(	VgRoutingModule::VgRouteRequestStatus	pStatus,
		VgEngine::VgRefPtr< VgRoutingModule::VgIRoute > const &	pRoute
	)

void VgMyBasicApplicationController::refreshParameters	(	unsigned int	pWidth,
		unsigned int	pHeight
	)		`[virtual]`

Refreshes the inner parameters.

Typically, subclasses can use it to recompute their view parameters when the rendering size changes.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::resetRoutePoint ( VgMyRouteCreator::RoutePoint pPoint ) [virtual]

Resets the place ID associated with a point.

Parameters:

pPoint RoutePoint to reset.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::resetRoutingRequestParameters ( ) [virtual]

Resets the routing request parameters to their initial state.

Implements VgMyRouteCreator.

virtual void VgMyBasicApplicationController::setAvoidStairs ( bool pDisabledFriendly ) [virtual]

Sets up the routing request parameters to include/exclude non disabled-friendly attributes.

Parameters:

pDisabledFriendly True if disabled friendly routing is wanted, false if not

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::setLayerAndCameraHandler ( VgMyLayerAndCameraHandler * pHandler )

void VgMyBasicApplicationController::setNavigationCreator ( VgMyNavigationCreator * pCreator )

void VgMyBasicApplicationController::setRouteCreator ( VgMyRouteCreator * pCreator )

bool VgMyBasicApplicationController::setRoutePoint	(	VgMyRouteCreator::RoutePoint	pPoint,
		const std::string &	pPlaceID
	)		`[virtual]`

Sets a RoutePoint to a specific place.

Parameters:

pPoint	RoutePoint to set
pPlaceID	Place to associates with pPoint.

Returns:: False if the specified placeID is not routable.

Implements VgMyRouteCreator.

bool VgMyBasicApplicationController::setRoutePoint	(	VgMyRouteCreator::RoutePoint	pPoint,
		const VgEngine::VgPosition	pPosition
	)		`[virtual]`

Sets a RoutePoint to a position within the map.

Finds the closest routing node from the routing network to the given position.

pPosition.getMZOrAltitude() is used to determine what layer the position is associated to.

Use the method VgMapModule::VgIMapModule::getHeightRangeForLayer() to find the appropriate altitude value for pPosition. For example:

        ...
        double lFloorHeight = 0.0;

        float pHeightMax;
        float pHeightMin;
        std::sring lLayerName = "0";
        if ( mMapModule->getHeightRangeForLayer(pLayer, pHeightMax, pHeightMin))
        {
            lFloorHeight = ((pHeightMax + pHeightMin) / 2);
        }

        lPosition.mZOrAltitude = lFloorHeight;
        ...

Parameters:

pPoint	RoutePoint to set
pPosition	Position to associates with pPoint.

Returns:: False if the pPosition is not routable.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::switchToDetailedView ( bool pIsAnimated = true ) [virtual]

Switches from the global to the detailled view.

Do nothing if alrady in detailled view.

Parameters:

pIsAnimated If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::switchToGlobalView ( bool pIsAnimated = true ) [virtual]

Switches from the detailledView to the global view.

Do nothing if already in global view.

Parameters:

pIsAnimated If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::unloadConfiguration ( )

void VgMyBasicApplicationController::updatePosition ( const VgEngine::VgPosition & pPosition ) [virtual]

Updates the current position.

Parameters:

pPosition A position representing a provided location

Implements VgMyLocationListener.

void VgMyBasicApplicationController::viewDidChange	(	VgMyLayerAndCameraHandler *	pSender,
		const bool	pDoesChangeFromGlobalToDetailed
	)		`[virtual]`

Notification that the view has changed its 'mode' (global or detailed)

Parameters:

pSender
pDoesChangeFromGlobalToDetailed	True if the view switch to global view, False if it switches to the detailed view.

Implements VgMyLayerAndCameraListener.

void VgMyBasicApplicationController::viewWillChange	(	VgMyLayerAndCameraHandler *	pSender,
		const bool	pDoesChangeFromGlobalToDetailed
	)		`[virtual]`

Notification that the view will change its 'mode' (global or detailed)

Parameters:

pSender
pDoesChangeFromGlobalToDetailed	True if the view switch to global view, False if it switches to the detailed view.

Implements VgMyLayerAndCameraListener.

Member Data Documentation

std::list<VgMyInstructionDisplay*> VgMyBasicApplicationController::mInstructionsDisplays [protected]

VgMyLayerAndCameraHandler* VgMyBasicApplicationController::mLayerAndCameraHandler [protected]

std::list<VgMyLayerAndCameraListener*> VgMyBasicApplicationController::mLayerAndCameraListeners [protected]

unsigned int VgMyBasicApplicationController::mMaximumInstructionNumber [protected]

VgEngine::VgRefPtr< VgNavigationModule::VgINavigation > VgMyBasicApplicationController::mNavigation [protected]

Current Navigation of NULL if no route request succeed.

Remarks:: Only this controller delete this object

VgEngine::VgRefPtr< VgMyBasicNavigationCallback > VgMyBasicApplicationController::mNavigationCallback [protected]

VgMyNavigationCreator* VgMyBasicApplicationController::mNavigationCreator [protected]

VgEngine::VgRefPtr< VgMyBasicNavigationListener > VgMyBasicApplicationController::mNavigationListener [protected]

std::list<VgMyNavigationPositionDisplay*> VgMyBasicApplicationController::mPositionDisplays [protected]

VgEngine::VgRefPtr< VgRoutingModule::VgIRoute > VgMyBasicApplicationController::mRoute [protected]

Current Route of NULL if no route request succeed.

Remarks:: Only this controller delete this object

VgEngine::VgRefPtr< VgMyBasicRouteCallback > VgMyBasicApplicationController::mRouteCallback [protected]

VgMyRouteCreator* VgMyBasicApplicationController::mRouteCreator [protected]

std::list<VgMyRouteDisplay*> VgMyBasicApplicationController::mRouteDisplays [protected]

VgMyTextureLoader* VgMyBasicApplicationController::mTextureLoader [protected]

VgApplication::VgIApplication& VgMyBasicApplicationController::mVgApplication [protected]

The documentation for this class was generated from the following file:

VgMyBasicApplicationController.h

VgMyBasicApplicationController Class Reference

Public Member Functions

Protected Member Functions

Protected Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
