Vg3DModule::VgLineDescriptor Struct Reference

A structure which describes the attributes of a Vg3DModule::VgLine. More...

Inheritance diagram for Vg3DModule::VgLineDescriptor:

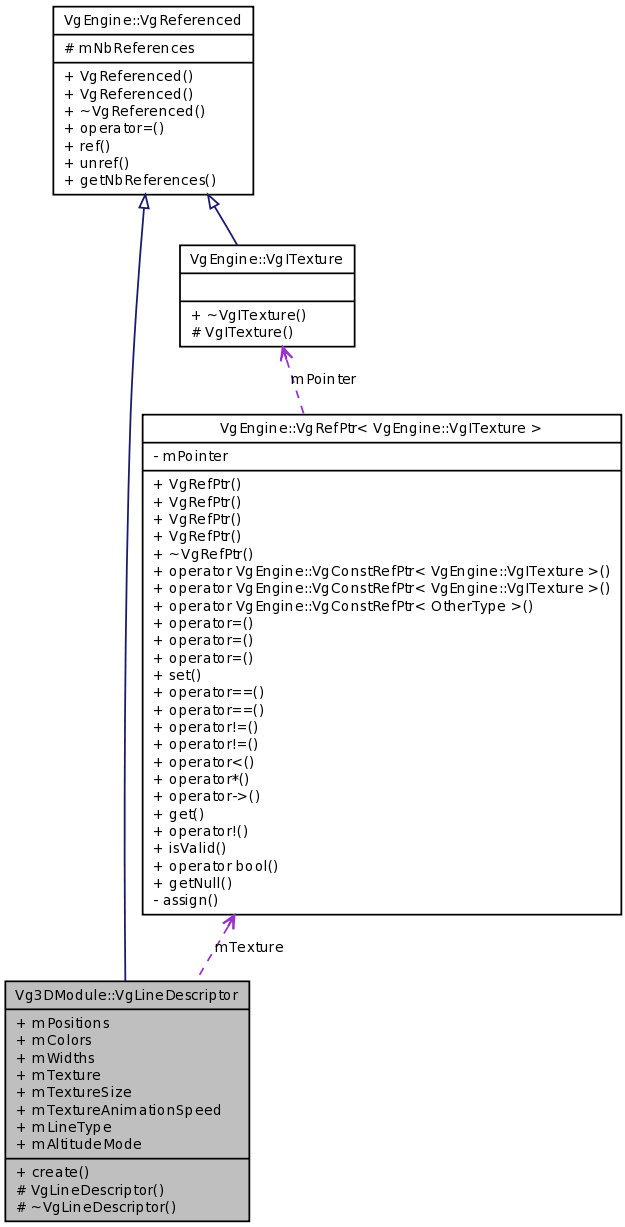

Collaboration diagram for Vg3DModule::VgLineDescriptor:

List of all members.

Public Types
typedef VgLine	Described
Static Public Member Functions
static VgEngine::VgRefPtr < Vg3DModule::VgLineDescriptor >	create ()
	This static method returns a new heap-allocated descriptor.
Public Attributes
std::vector< VgEngine::VgPosition >	mPositions
	The positions of the control points ordered sequentially.
std::vector< VgEngine::VgColor >	mColors
	The line colors.
std::vector< double >	mWidths
	The line widths.
VgEngine::VgRefPtr < VgEngine::VgITexture >	mTexture
	The texture that will be used when drawing the track.
float	mTextureSize
	The texture's size in y coordinate (metric).
float	mTextureAnimationSpeed
	The texture animation speed in meters/second (along the vertical axis of the texture).
VgLineType	mLineType
	The type of line that will be rendered.
VgEngine::VgAltitudeMode	mAltitudeMode
	The altitude mode tells how to interpret the 'mHeight' members for all the mPositions elements.
Protected Member Functions
	VgLineDescriptor ()
	Constructor.
virtual	~VgLineDescriptor ()

---

Detailed Description

A structure which describes the attributes of a Vg3DModule::VgLine.

Below is a code snippet showing how an allocated VgPointDescriptor can be configured:

     ...
     VgApplication::VgIApplication* mVgApplication;
     VgEngine::VgRefPtr< VgEngine::VgITexture > mTexture;
     VgEngine::VgPosition mStartPos;
     VgEngine::VgPosition mEndPos;
     ...

     Vg3DModule::VgLineDescriptor lLineDesc;
     const float lTextureSize = 1.0;

     lLineDesc.mLineType = Vg3DModule::eGeometryConstantSize;
     lLineDesc.mTextureAnimationSpeed = 4.0;
     lLineDesc.mWidths.push_back(lTextureSize);
     lLineDesc.mColors.push_back(VgEngine::VgColor(1.0, 1.0, 1.0, 1.0));
     lLineDesc.mTexture =mTexture.get();
     lLineDesc.mTextureSize = 1.0;
     lLineDesc.mAltitudeMode = = VgEngine::eAbsolute;

     lLineDesc.mPositions.push_back(mStartPos);
     lLineDesc.mPositions.push_back(mEndPos);
     ...

Version:

2.0

---

Member Typedef Documentation

typedef VgLine Vg3DModule::VgLineDescriptor::Described

---

Constructor & Destructor Documentation

Vg3DModule::VgLineDescriptor::VgLineDescriptor

(

)

[inline, protected]

Constructor.

virtual Vg3DModule::VgLineDescriptor::~VgLineDescriptor

(

)

[protected, virtual]

---

Member Function Documentation

static VgEngine::VgRefPtr< Vg3DModule::VgLineDescriptor > Vg3DModule::VgLineDescriptor::create

(

)

[static]

This static method returns a new heap-allocated descriptor.

It is the only method that should be used to instantiate new descriptors. It is a way to make sure no one will delete it, except the last VgRefPtr pointing to it.

---

Member Data Documentation

VgEngine::VgAltitudeMode Vg3DModule::VgLineDescriptor::mAltitudeMode

The altitude mode tells how to interpret the 'mHeight' members for all the mPositions elements.

Default is eAbsolute.

std::vector< VgEngine::VgColor > Vg3DModule::VgLineDescriptor::mColors

The line colors.

This vector should contain either 1 element in which case all the line will be drawn using that color. If the vector's size is greater or equal to the size of VgLineDescriptor::mPositions, then one color element will be used for each position, and these will be interpolated by the spline erp.

VgLineType Vg3DModule::VgLineDescriptor::mLineType

The type of line that will be rendered.

std::vector< VgEngine::VgPosition > Vg3DModule::VgLineDescriptor::mPositions

The positions of the control points ordered sequentially.

If you want to close the VgLine you have to push_back the first point at the end of the vector.

VgEngine::VgRefPtr< VgEngine::VgITexture > Vg3DModule::VgLineDescriptor::mTexture

The texture that will be used when drawing the track.

The texture mapping will ensure that the full texture width is mapped on the track's width.

Note:

If using a texture, then VgLineDescriptor::mLineType should be set to eGeometryConstantSize.

float Vg3DModule::VgLineDescriptor::mTextureAnimationSpeed

The texture animation speed in meters/second (along the vertical axis of the texture).

a zero or close-to-zero value (<1e-3) means no animation.

float Vg3DModule::VgLineDescriptor::mTextureSize

The texture's size in y coordinate (metric).

std::vector< double > Vg3DModule::VgLineDescriptor::mWidths

The line widths.

Depending on VgLineDescriptor::mLineType value these parameters can represent either pixel values (ePixelConstantSize) or meter values (eGeometryConstantSize). This vector should contain either 1 element in which case all the line will be drawn using that width. If the vector's size is greater or equal to the size of VgLineDescriptor::mPositions, then one width element will be used for each position, and these will be interpolated by the spline erp.

Note:

In case the line is of ePixelConstantSize type, only the first element will be used as the overall width, whatever the vector's size is.

---

The documentation for this struct was generated from the following file:

• VgLine.h
