This class wraps the CAEAGLLayer from CoreAnimation into a convenient UIView subclass. More...

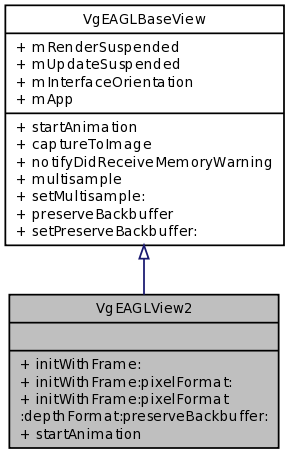

Inheritance diagram for VgEAGLView2:

Instance Methods
(id)	- initWithFrame:
	Creates a new VgEAGLView and as well as setting itself as the current context. More...

(id)	- initWithFrame:pixelFormat:

(id)	- initWithFrame:pixelFormat:depthFormat:preserveBackbuffer:

(void)	- startAnimation
	Responsible for creating the VisioDevKit application. More...

Instance Methods inherited from VgEAGLBaseView
(UIImage *)	- captureToImage

(void)	- notifyDidReceiveMemoryWarning
	Notifies the view when the application receives a memory warning from the system. More...

(BOOL)	- multisample
	Tells the application if multisample is enabled or not. More...

(void)	- setMultisample:
	enables/disabling multisampling (to reduce anti-aliasing) More...

(BOOL)	- preserveBackbuffer
	Tells the application if preserveBackbuffer is enabled or not. More...

(void)	- setPreserveBackbuffer:
	enables/disabling preserveBackbuffer (to be able to use captureToImage) More...

Additional Inherited Members
Properties inherited from VgEAGLBaseView
BOOL	mRenderSuspended
	A Boolean indicating whether the EAGL View is rendered. More...

BOOL	mUpdateSuspended
	A Boolean indicating whether the EAGL View is updated, this is different from rendering. More...

UIInterfaceOrientation	mInterfaceOrientation
	The current orientation of the VgEAGLView. More...

VgApplication::VgIApplication *	mApp
	The entry point to the VisioDevKit. More...

Detailed Description

This class wraps the CAEAGLLayer from CoreAnimation into a convenient UIView subclass.

The view content is basically an EAGL surface you render your OpenGL scene into.

Method Documentation

- (id) initWithFrame: (CGRect) frame

Creates a new VgEAGLView and as well as setting itself as the current context.

By default multiple touch support on the view is enabled. The default orientation is UIInterfaceOrientationPortrait.

Note: If not stipulated, the following defaults are used; pixel format set to kEAGLColorFormatRGBA8, depth format set to GL_DEPTH_COMPONENT16_OES and the preserve back buffer is disabled.

Parameters

frame - default frame size of the view

- (void) startAnimation

Responsible for creating the VisioDevKit application.

This means it will call VgApplication::VgIApplication::createApplication on your behalf as well as initiating the animation timer responsible for invoking the render scene.

The documentation for this class was generated from the following file:
