The VgPoint object can be associated with a layer within the 3D view. More...

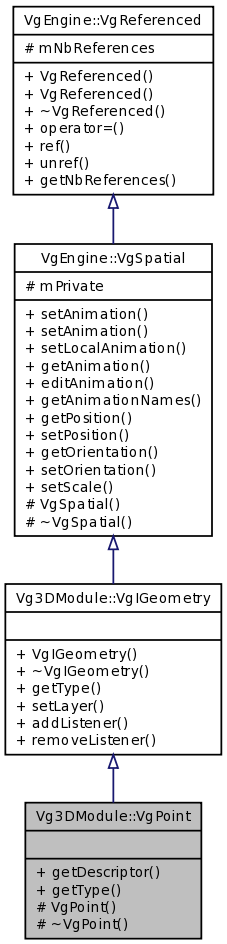

Inheritance diagram for Vg3DModule::VgPoint:

Public Types
typedef VgPointDescriptor	Descriptor

Public Member Functions
VgEngine::VgConstRefPtr < Descriptor >	getDescriptor () const

Vg3DModule::VgIGeometryType	getType () const

Public Member Functions inherited from Vg3DModule::VgIGeometry
	VgIGeometry ()
	Constructor. More...

virtual	~VgIGeometry ()
	Destructor. More...

virtual void	setLayer (VgEngine::VgRefPtr< VgEngine::VgLayer > pLayer, bool pHaveGeographicCoherence=true)
	Sets the associated layer. More...

virtual void	addListener (VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback > pCallback)
	Adds a listener to the geometry object. More...

virtual void	removeListener (VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback > pCallback)
	Removes a listener from the geometry object. More...

Public Member Functions inherited from VgEngine::VgSpatial
void	setAnimation (const std::string &pAnimationName, VgEngine::VgRefPtr< VgEngine::VgAnimation > &pAnimation)
	Sets an animation on this spatial. More...

void	setAnimation (VgEngine::VgRefPtr< VgEngine::VgAnimation > pAnimation)
	Sets an animation with an empty name on this spatial. More...

void	setLocalAnimation (VgEngine::VgRefPtr< VgEngine::VgAnimation > pAnimation)
	Sets an animation on this spatial. More...

VgConstRefPtr< VgAnimation >	getAnimation (const std::string &pName) const
	Gets an animation from the spatial's animation map. More...

VgRefPtr< VgAnimation >	editAnimation (const std::string &pName)
	Edits an animation from the spatial's animation map. More...

void	getAnimationNames (std::list< std::string > &pNameList) const
	Gets the list of the stored animation names. More...

VgEngine::VgPosition	getPosition () const
	Gets spatial's position. More...

void	setPosition (const VgEngine::VgPosition &pPosition, bool pHaveGeographicCoherence=true)
	Sets the spatial position. More...

VgEngine::VgOrientation	getOrientation () const
	Gets spatial's orientation. More...

void	setOrientation (const VgEngine::VgOrientation &pOrientation)
	Sets the spatial orientation. More...

void	setScale (float pScale)
	Sets the spatial's scale. More...

Public Member Functions inherited from VgEngine::VgReferenced
	VgReferenced ()
	Constructor. More...

	VgReferenced (const VgReferenced &pThis)
	Copy constructor. More...

virtual	~VgReferenced ()
	Destructor. More...

VgReferenced &	operator= (const VgReferenced &pThis)
	Assignment operator. More...

void	ref () const
	This method is used to add a reference to this object. More...

void	unref () const
	This method is used to remove a reference to this object. More...

int	getNbReferences () const
	Retrieves the number of references to this object. More...

Protected Member Functions
	VgPoint ()
	Constructor. More...

virtual	~VgPoint ()
	Destructor. More...

Protected Member Functions inherited from VgEngine::VgSpatial
	VgSpatial ()
	Default constructor. More...

virtual	~VgSpatial ()
	Destructor. More...

Friends
class	VgEngine::VgInstanceFactory

class	VgEngine::VgObjectBridge

Additional Inherited Members
Protected Attributes inherited from VgEngine::VgSpatial
Private *	mPrivate
	Private. More...

Protected Attributes inherited from VgEngine::VgReferenced
int	mNbReferences
	The number of references to this object. More...

Detailed Description

The VgPoint object can be associated with a layer within the 3D view.

When the associated layer is visible, so to will the VgPoint. The VgPoint is located at a specified geographical position and is represented as a textured square.

To use a VgPoint, one must first create it (using Vg3DModule::VgInstanceFactory::instantiate) and then associate it with a layer (using setLayer).

...
VgApplication::VgIApplication* mVgApplication;
Vg3DModule::VgPointDescriptor lPointDesc;
...

// Instantiate the VgPoint object.
VgEngine::VgRefPtr< Vg3DModule::VgPoint > lPoint = mVgApplication->editEngine()->editInstanceFactory()->instantiate(lPointDesc);
const VgEngine::VgLayerManager::LayerList& lLayers = mVgApplication->editEngine()->editLayerManager()->getLayers();
// Choose the first layer.
VgEngine::VgRefPtr< VgEngine::VgLayer > lLayer = lLayers.at(0);
// Note: The Point will only be seen if the associated layer is visible.  See VgEngine::VgVgLayer for more information.
lPoint->setLayer(lLayer);
// To remove the Point from the layer.
lPoint->setLayer(NULL);
// If the point is no longer required, then we can release it's memory.
// But since it is reference counted we don't delete, we null-out the VgRefPtr.
lPoint = NULL;
*

Subclassing

It's possible to subclass VgPoint in order to add custom data. This is demonstrated by the following code snippet:

// Custom VgPoint class to encapsulate some additional information (just a simple string mName in this case)
class MyPoint : public Vg3DModule::VgPoint
{
public:
MyPoint(VgEngine::VgRefPtr< Vg3DModule::VgPoint >& pPoint, const std::string& pName)
   : mPoint(pPoint)
   , mName(pName)
{}
virtual ~MyPoint()
{
   mPoint = NULL;
}
virtual Vg3DModule::VgIGeometryType getType () const
{
   return mPoint->getType();
}
virtual const Vg3DModule::VgPointDescriptor& getDescriptor () const
{
   return mPoint->getDescriptor();
}
VgEngine::VgRefPtr< Vg3DModule::VgPoint > getPoint () const
{
   return mPoint;
}
const std::string& getName () const
{
   return mName;
}
protected:
VgEngine::VgRefPtr< Vg3DModule::VgPoint > mPoint;
// MyPoint specific information below
const std::string mName;
};
*

Once the Point is created, it can be wrapped by MyPoint and associated with a layer.

...
VgApplication::VgIApplication* mVgApplication;
Vg3DModule::VgPointDescriptor lPointDesc;
...
VgEngine::VgRefPtr< Vg3DModule::VgPoint > lPoint = mApplication->editEngine()->editInstanceFactory()->instantiate(lPointDescr);
MyPoint* lMyPoint = new MyPoint(lPoint.get());
lMyPoint->getPoint()->setLayer(lLayerName);
*

Version: 2.0

Member Typedef Documentation

typedef VgPointDescriptor Vg3DModule::VgPoint::Descriptor

Constructor & Destructor Documentation

Vg3DModule::VgPoint::VgPoint ( )

protected

Constructor.

virtual Vg3DModule::VgPoint::~VgPoint ( )

protectedvirtual

Destructor.

Member Function Documentation

VgEngine::VgConstRefPtr< Descriptor > Vg3DModule::VgPoint::getDescriptor ( ) const

Returns: The descriptor

Vg3DModule::VgIGeometryType Vg3DModule::VgPoint::getType ( ) const

virtual

Returns: The geometry type.

Reimplemented from Vg3DModule::VgIGeometry.

Friends And Related Function Documentation

friend class VgEngine::VgInstanceFactory

friend

friend class VgEngine::VgObjectBridge

friend

The documentation for this class was generated from the following file:

VgPoint.h
