VgMapModule::VgIMapModule Interface Reference

The VgIMapModule defines all the needed interfaces to interact with the map module. More...

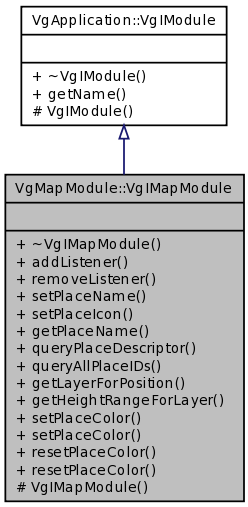

Inheritance diagram for VgMapModule::VgIMapModule:

Public Member Functions
virtual	~VgIMapModule ()
	Destructor. More...
virtual void	addListener (VgEngine::VgRefPtr< VgIPlaceListener >const &pListener)=0
	Adds a place listener. More...
virtual void	removeListener (VgEngine::VgRefPtr< VgIPlaceListener >const &pListener)=0
	Removes a place listener. More...
virtual void	setPlaceName (const std::string &pID, const std::string &pName)=0
	Sets a place name according to its ID. More...
virtual void	setPlaceIcon (const std::string &pID, const VgPlaceIconDescriptor &pPlaceIconDescriptor)=0
	Sets a place icon according to its ID. More...
virtual bool	getPlaceName (const std::string &pID, std::string &pPlaceName) const =0
	Gets a place name according to its ID. More...
virtual bool	queryPlaceDescriptor (const std::string &pID, VgPlaceDescriptor &pPlaceDescriptor) const =0
	Queries a place descriptor. More...
virtual void	queryAllPlaceIDs (std::vector< std::string > &pPlaceIDs) const =0
	Queries all place IDs. More...
virtual bool	getLayerForPosition (const VgEngine::VgPosition &pPos, std::string &pLayerNameContainingPosition) const =0
	Finds the best fitting layer for a given position. More...
virtual bool	getHeightRangeForLayer (const std::string &pLayerName, float &pHeightMin, float &pHeightMax) const =0
	Gets the height range (min and max) for a given layer. More...
virtual void	setPlaceColor (const std::string &pID, const VgPlaceColorDescriptor &pColorDescriptor)=0
	Sets a place color according to its ID. More...
virtual void	setPlaceColor (const std::vector< std::string > &pIDs, const VgPlaceColorDescriptor &pColorDescriptor)=0
	Sets a place color according to a list of place ID's. More...
virtual void	resetPlaceColor (const std::string &pID)=0
	Resets the original color of a place. More...
virtual void	resetPlaceColor (const std::vector< std::string > &pIDs)=0
	Resets the original color of a list of place. More...
Public Member Functions inherited from VgApplication::VgIModule
virtual	~VgIModule ()
	Destructor. More...
virtual const std::string &	getName () const =0
	Retrieves the module name. More...

Protected Member Functions
	VgIMapModule ()
	Constructor. More...
Protected Member Functions inherited from VgApplication::VgIModule
	VgIModule ()
	Constructor. More...

Detailed Description

The VgIMapModule defines all the needed interfaces to interact with the map module.

Date

25/02/2010

Constructor & Destructor Documentation

VgMapModule::VgIMapModule::VgIMapModule ( )

inlineprotected

Constructor.

virtual VgMapModule::VgIMapModule::~VgIMapModule ( )

inlinevirtual

Destructor.

Member Function Documentation

virtual void VgMapModule::VgIMapModule::addListener ( VgEngine::VgRefPtr< VgIPlaceListener >const &  pListener )

pure virtual

Adds a place listener.

Parameters

pListener

The place listener to be added.

virtual bool VgMapModule::VgIMapModule::getHeightRangeForLayer ( const std::string &  pLayerName, float &  pHeightMin, float &  pHeightMax  ) const

pure virtual

Gets the height range (min and max) for a given layer.

Parameters

	pLayerName	The layer who's height range is of interest
[out]	pHeightMin	An output parameter containing the minimum height (i.e. the floor) of pLayerName.
[out]	pHeightMax	An output parameter containing the maximum height (i.e. the ceiling) of pLayerName.

Returns

true if output range parameters have been correctly assigned, otherwise false.

Version

2.0

virtual bool VgMapModule::VgIMapModule::getLayerForPosition ( const VgEngine::VgPosition &  pPos, std::string &  pLayerNameContainingPosition  ) const

pure virtual

Finds the best fitting layer for a given position.

Parameters

	pPos	the position of interest
[out]	pLayerNameContainingPosition	A string which will be populated with the name of the best fitting layer.

Returns

true if a corresponding layer has been found, otherwise false.

Warning

This method ignores the VgEngine::VgPosition::mSRS member. It will use solely the mZOrAltitude member to determine the layer.

This means that the positions returned by picking in VgIPlaceListener subclasses will not be suitable to determine the layer in which the "click" occured, instead use the VgMapModule::VgPlaceDescriptor structure.

This behavior will change in the near future to take SRSs into account.

Version

2.0

virtual bool VgMapModule::VgIMapModule::getPlaceName ( const std::string &  pID, std::string &  pPlaceName  ) const

pure virtual

Gets a place name according to its ID.

Parameters

	pID	the place ID.
[out]	pPlaceName	the place name.

Returns

false if pID does not exist.

virtual void VgMapModule::VgIMapModule::queryAllPlaceIDs ( std::vector< std::string > &  pPlaceIDs ) const

pure virtual

Queries all place IDs.

Parameters

[out]

pPlaceIDs

A string vector which will be populated with place IDs for the current dataset.

virtual bool VgMapModule::VgIMapModule::queryPlaceDescriptor ( const std::string &  pID, VgPlaceDescriptor &  pPlaceDescriptor  ) const

pure virtual

Queries a place descriptor.

Parameters

	pID	the place ID.
[out]	pPlaceDescriptor	the place descriptor.

Returns

true if the place descriptor was found, otherwise false.

virtual void VgMapModule::VgIMapModule::removeListener ( VgEngine::VgRefPtr< VgIPlaceListener >const &  pListener )

pure virtual

Removes a place listener.

Parameters

pListener

The place listener to be removed.

virtual void VgMapModule::VgIMapModule::resetPlaceColor ( const std::string &  pID )

pure virtual

Resets the original color of a place.

There are no effect if the place color has not been changed.

Parameters

pID	The place ID.

virtual void VgMapModule::VgIMapModule::resetPlaceColor ( const std::vector< std::string > &  pIDs )

pure virtual

Resets the original color of a list of place.

There are no effect on places whose color has not been changed.

Parameters

pIDs	A list of place IDs.

virtual void VgMapModule::VgIMapModule::setPlaceColor ( const std::string &  pID, const VgPlaceColorDescriptor &  pColorDescriptor  )

pure virtual

Sets a place color according to its ID.

Parameters

pID	The place ID to color.
pColorDescriptor	The place color descriptor to be set.

Remarks

With non-extruded maps, only the VgPlaceColorDescriptor.mTopColor will be used.

It is advised to achieve the best performance to call setPlaceColor after loadConfiguration, but before loadDataset when updating many places.

It is advised to use this method when setting a single place with a unique color.

virtual void VgMapModule::VgIMapModule::setPlaceColor ( const std::vector< std::string > &  pIDs, const VgPlaceColorDescriptor &  pColorDescriptor  )

pure virtual

Sets a place color according to a list of place ID's.

Parameters

pIDs	the list of place IDs to color.
pColorDescriptor	the place color descriptor to be set.

Remarks

With non-extruded maps, only the VgPlaceColorDescriptor.mTopColor will be used.

It is advised to achieve the best performance to call setPlaceColor after loadConfiguration, but before loadDataset when updating many places.

It is advised to use this method when setting two or more places with the same color.

virtual void VgMapModule::VgIMapModule::setPlaceIcon ( const std::string &  pID, const VgPlaceIconDescriptor &  pPlaceIconDescriptor  )

pure virtual

Sets a place icon according to its ID.

The Texture it adds will be available on all datasets and will only be released if a different Texture is set for the same place ID or if a different configuration is loaded.

Parameters

[in]	pID	the place ID.
[in]	pPlaceIconDescriptor	The place icon descriptor

Remarks

adding an icon changes the size of the place name, this function should not be used at the same time as setPlaceName for the same pID.

It is advised to achieve the best performance to call setPlaceIcon after loadConfiguration, but before loadDataset when updating many places.

virtual void VgMapModule::VgIMapModule::setPlaceName ( const std::string &  pID, const std::string &  pName  )

pure virtual

Sets a place name according to its ID.

Parameters

pID	the place ID.
pName	the place name to be set.

Remarks

It is advised to achieve the best performance to call setPlaceIcon after loadConfiguration, but before loadDataset when updating many places.

---

The documentation for this interface was generated from the following file:

• VgIMapModule.h
