VgMyRoutingHelper Class Reference

Provides common operation on routes. More...

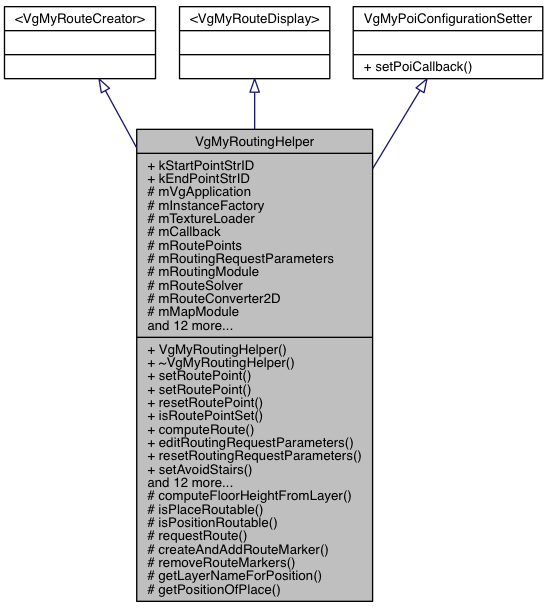

Inheritance diagram for VgMyRoutingHelper:

Classes
struct	LineObject
	Holds information on Lines to ease show/hide. More...
struct	PointObject
	Holds information on Points to ease show/hide. More...

Public Member Functions
	VgMyRoutingHelper (VgApplication::VgIApplication *pVgApplication, VgMyTextureLoader *pTextureLoader, VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback >const &pCallback, VgMyLayerAndCameraHandler *pLayerAndCamerHandler)
	Constructor. More...
virtual	~VgMyRoutingHelper ()
virtual bool	setRoutePoint (VgMyRouteCreator::RoutePoint pPoint, const std::string &pPlaceID)
	Implementation of interface : VgMyRouteCreator. More...
virtual bool	setRoutePoint (RoutePoint pPoint, const VgEngine::VgPosition &pPosition)
virtual void	resetRoutePoint (VgMyRouteCreator::RoutePoint pPoint)
virtual bool	isRoutePointSet (VgMyRouteCreator::RoutePoint pPoint)
virtual void	computeRoute ()
virtual VgRoutingModule::VgIRouteRequestParameters *	editRoutingRequestParameters ()
virtual void	resetRoutingRequestParameters ()
virtual void	setAvoidStairs (bool pDisabledFriendly)
VgEngine::VgRefPtr < VgEngine::VgAnimationDescriptor >	getRoutePointHighlightAnimationDescriptor ()
std::vector< VgEngine::VgPosition >	simplifyForWidth (const std::vector< VgEngine::VgPosition > &pPositions, double pWidth)
void	setRouteStyle (VgMyRouteStyler::RouteStyle pRouteStyle, bool pRecomputeRoute=true)
VgMyRouteStyler::RouteStyle	getRouteStyle () const
void	setRouteWidth (float pWidth)
void	setRouteMarkerHeight (float pHeight)
bool	createRouteObjects (VgEngine::VgConstRefPtr< VgRoutingModule::VgIRoute > const &pRoute)
	Implementation of interface : VgMyRouteDisplay. More...
void	clear ()
void	show ()
void	hide ()
bool	isVisible ()
void	setPoiCallback (const std::string &pIdentifier, VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback >const &pCallback)
	Implementation of interface : VgMyPoiConfigurationSetter. More...

Static Public Attributes
static const std::string	kStartPointStrID
static const std::string	kEndPointStrID

Protected Types
typedef std::map< std::string, VgEngine::VgRefPtr < Vg3DModule::VgIGeometryCallback > >	POICallbackMap

Protected Member Functions
double	computeFloorHeightFromLayer (const std::string &pLayer) const
bool	isPlaceRoutable (const std::string &pID)
bool	isPositionRoutable (const VgEngine::VgPosition &pPosition)
void	requestRoute (const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode > pOrigin, const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode > pDestination)
	Requests a route from the routing module given some routing nodes. More...
void	createAndAddRouteMarker (VgMyRouteCreator::RoutePoint pPoint, const VgEngine::VgPosition &pPosition)
void	removeRouteMarkers ()
std::string	getLayerNameForPosition (VgEngine::VgPosition pPosition)
VgEngine::VgPosition	getPositionOfPlace (const std::string &pPlaceId)

Protected Attributes
VgApplication::VgIApplication *	mVgApplication
VgEngine::VgInstanceFactory *	mInstanceFactory
VgMyTextureLoader *	mTextureLoader
VgEngine::VgRefPtr < VgRoutingModule::VgIRouteCallback >	mCallback
std::map < VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr < VgRoutingModule::VgIRoutingNode > >	mRoutePoints
VgRoutingModule::VgIRouteRequestParameters	mRoutingRequestParameters
VgRoutingModule::VgIRoutingModule *	mRoutingModule
VgRoutingModule::VgIRoutingSolver *	mRouteSolver
VgRoutingModule::VgIRouteConverter *	mRouteConverter2D
VgMapModule::VgIMapModule *	mMapModule
std::map < VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr < Vg3DModule::VgPoint > >	mHighlightedRoutePoints
bool	mIsRouteVisible
VgMyRouteStyler::RouteStyle	mRouteStyle
std::vector< PointObject >	mPoints
std::list< VgEngine::VgRefPtr < Vg3DModule::VgLink > >	mLinks
std::vector< LineObject >	mLines
POICallbackMap	mRoutePoiCallbacks
float	mObjectHeightOffset
float	mRouteWidth
VgMyLayerAndCameraHandler *	mLayerAndCameraHandler
VgEngine::VgRefPtr < VgEngine::VgAnimationDescriptor >	mHighlightedRoutePointsAnimationDescr
VgMyRouteStyler	mRouteStyler

Detailed Description

Provides common operation on routes.

This helper simplifies the task of managing a route and showing/hiding it when changing floors (layers).

IMPLEMENTATION TIPS: In this class, you can configure :

• The image used for the route.
• The starting&ending POIs (images, callback etc etc)

Member Typedef Documentation

typedef std::map<std::string, VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback > > VgMyRoutingHelper::POICallbackMap

protected

Constructor & Destructor Documentation

VgMyRoutingHelper::VgMyRoutingHelper	(	VgApplication::VgIApplication *	pVgApplication,
		VgMyTextureLoader *	pTextureLoader,
		VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback >const &	pCallback,
		VgMyLayerAndCameraHandler *	pLayerAndCamerHandler
	)

Constructor.

You can customize the textures here.

virtual VgMyRoutingHelper::~VgMyRoutingHelper ( )

virtual

Member Function Documentation

void VgMyRoutingHelper::clear

(

)

double VgMyRoutingHelper::computeFloorHeightFromLayer ( const std::string &  pLayer ) const

protected

virtual void VgMyRoutingHelper::computeRoute ( )

virtual

void VgMyRoutingHelper::createAndAddRouteMarker ( VgMyRouteCreator::RoutePoint  pPoint, const VgEngine::VgPosition &  pPosition  )

protected

bool VgMyRoutingHelper::createRouteObjects

(

VgEngine::VgConstRefPtr< VgRoutingModule::VgIRoute > const &

pRoute

)

Implementation of interface : VgMyRouteDisplay.

Creates the routes and its associated POIs

You can customize the route display as well as its starting&ending points.

virtual VgRoutingModule::VgIRouteRequestParameters* VgMyRoutingHelper::editRoutingRequestParameters ( )

virtual

std::string VgMyRoutingHelper::getLayerNameForPosition ( VgEngine::VgPosition  pPosition )

protected

VgEngine::VgPosition VgMyRoutingHelper::getPositionOfPlace ( const std::string &  pPlaceId )

protected

VgEngine::VgRefPtr< VgEngine::VgAnimationDescriptor > VgMyRoutingHelper::getRoutePointHighlightAnimationDescriptor

(

)

VgMyRouteStyler::RouteStyle VgMyRoutingHelper::getRouteStyle

(

)

const

void VgMyRoutingHelper::hide

(

)

bool VgMyRoutingHelper::isPlaceRoutable ( const std::string &  pID )

protected

Returns

true if the pID is routable

bool VgMyRoutingHelper::isPositionRoutable ( const VgEngine::VgPosition &  pPosition )

protected

Returns

true if the pPosition is routable, uses its altitude to figure out floor.

virtual bool VgMyRoutingHelper::isRoutePointSet ( VgMyRouteCreator::RoutePoint  pPoint )

virtual

bool VgMyRoutingHelper::isVisible

(

)

void VgMyRoutingHelper::removeRouteMarkers ( )

protected

void VgMyRoutingHelper::requestRoute ( const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode >  pOrigin, const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode >  pDestination  )

protected

Requests a route from the routing module given some routing nodes.

Parameters

pOrigin	routing node to start from
pDestination	routing node to finish at

virtual void VgMyRoutingHelper::resetRoutePoint ( VgMyRouteCreator::RoutePoint  pPoint )

virtual

virtual void VgMyRoutingHelper::resetRoutingRequestParameters ( )

virtual

virtual void VgMyRoutingHelper::setAvoidStairs ( bool  pDisabledFriendly )

virtual

void VgMyRoutingHelper::setPoiCallback ( const std::string &  pIdentifier, VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback >const &  pCallback  )

virtual

Implementation of interface : VgMyPoiConfigurationSetter.

Implements VgMyPoiConfigurationSetter.

void VgMyRoutingHelper::setRouteMarkerHeight

(

float

pHeight

)

virtual bool VgMyRoutingHelper::setRoutePoint ( VgMyRouteCreator::RoutePoint  pPoint, const std::string &  pPlaceID  )

virtual

Implementation of interface : VgMyRouteCreator.

virtual bool VgMyRoutingHelper::setRoutePoint ( RoutePoint  pPoint, const VgEngine::VgPosition &  pPosition  )

virtual

void VgMyRoutingHelper::setRouteStyle	(	VgMyRouteStyler::RouteStyle	pRouteStyle,
		bool	pRecomputeRoute = true
	)

void VgMyRoutingHelper::setRouteWidth

(

float

pWidth

)

void VgMyRoutingHelper::show

(

)

std::vector< VgEngine::VgPosition > VgMyRoutingHelper::simplifyForWidth	(	const std::vector< VgEngine::VgPosition > &	pPositions,
		double	pWidth
	)

Member Data Documentation

const std::string VgMyRoutingHelper::kEndPointStrID

static

const std::string VgMyRoutingHelper::kStartPointStrID

static

VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback > VgMyRoutingHelper::mCallback

protected

std::map<VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr< Vg3DModule::VgPoint > > VgMyRoutingHelper::mHighlightedRoutePoints

protected

VgEngine::VgRefPtr< VgEngine::VgAnimationDescriptor > VgMyRoutingHelper::mHighlightedRoutePointsAnimationDescr

protected

VgEngine::VgInstanceFactory* VgMyRoutingHelper::mInstanceFactory

protected

bool VgMyRoutingHelper::mIsRouteVisible

protected

VgMyLayerAndCameraHandler* VgMyRoutingHelper::mLayerAndCameraHandler

protected

std::vector< LineObject > VgMyRoutingHelper::mLines

protected

std::list< VgEngine::VgRefPtr< Vg3DModule::VgLink > > VgMyRoutingHelper::mLinks

protected

VgMapModule::VgIMapModule* VgMyRoutingHelper::mMapModule

protected

float VgMyRoutingHelper::mObjectHeightOffset

protected

std::vector< PointObject > VgMyRoutingHelper::mPoints

protected

VgRoutingModule::VgIRouteConverter* VgMyRoutingHelper::mRouteConverter2D

protected

POICallbackMap VgMyRoutingHelper::mRoutePoiCallbacks

protected

std::map<VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr<VgRoutingModule::VgIRoutingNode> > VgMyRoutingHelper::mRoutePoints

protected

VgRoutingModule::VgIRoutingSolver* VgMyRoutingHelper::mRouteSolver

protected

VgMyRouteStyler::RouteStyle VgMyRoutingHelper::mRouteStyle

protected

VgMyRouteStyler VgMyRoutingHelper::mRouteStyler

protected

float VgMyRoutingHelper::mRouteWidth

protected

VgRoutingModule::VgIRoutingModule* VgMyRoutingHelper::mRoutingModule

protected

VgRoutingModule::VgIRouteRequestParameters VgMyRoutingHelper::mRoutingRequestParameters

protected

VgMyTextureLoader* VgMyRoutingHelper::mTextureLoader

protected

VgApplication::VgIApplication* VgMyRoutingHelper::mVgApplication

protected

---

The documentation for this class was generated from the following file:

• VgMyRoutingHelper.h
