VgMyStackedLayerAndCameraHandler Class Reference

Controls the camera & the Layer display. More...

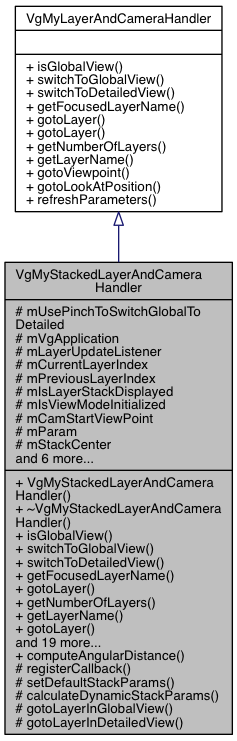

Inheritance diagram for VgMyStackedLayerAndCameraHandler:

Public Types
enum	VgMyConfigurableParam {   eFarAwayHeight, eStackViewHeading, eStackViewPitch, eLayerMaxSize,   eStackViewDistance, eLayerDistance, eLayerDistanceFromCurrent, eAnimateToDetailCameraDuration,   eAnimateToGlobalCameraDuration, eAnimateToGlobalLayerDuration, eAnimateToDetailLayerDuration, eAnimateChangeOfLayerDuration,   eAnimateCancelPinchDuration, eAnimateCancelDragDuration, eAnimateMaxViewPointDuration, eChangeLayerTriggerThreshold,   eStackNonActiveLayerAngle, eStackActiveLayerAngle, eMaxDoubleParams }
	The below enum represents parameters that can be configured to change the behaviour of the VgMyStackedLayerAndCameraHandler object. More...
enum	eFromToViewEnum { eFromStackToDetailedView, eFromDetailedToStackView, eFromGlobalToGlobaView }
typedef enum VgMyStackedLayerAndCameraHandler::VgMyConfigurableParam	VgMyConfigurableParam
	The below enum represents parameters that can be configured to change the behaviour of the VgMyStackedLayerAndCameraHandler object. More...

Public Member Functions
	VgMyStackedLayerAndCameraHandler (VgApplication::VgIApplication *pVgApplication, VgMyLayerAndCameraListener *pListener, unsigned int pViewWidthInPixels, unsigned int pViewHeightInPixels)
virtual	~VgMyStackedLayerAndCameraHandler ()
bool	isGlobalView ()
void	switchToGlobalView (bool pIsAnimated=true)
	Switches from the detailledView to the global view. More...
void	switchToDetailedView (bool pIsAnimated=true)
	Switches from the global to the detailled view. More...
const std::string &	getFocusedLayerName ()
	Gets the focused layer's name. More...
void	gotoLayer (const std::string &pLayerName, bool pIsAnimated=true)
	Focus a specific layer. More...
unsigned int	getNumberOfLayers ()
	Returns the number of layers. More...
bool	getLayerName (const unsigned int pLayerIndex, std::string &pLayerNameOut)
	Returns the layer name for a given indes. More...
void	gotoLayer (const unsigned int pLayerIndex, bool pIsAnimated=true)
	Focus a specific layer. More...
void	gotoViewpoint (const VgEngine::VgIViewPoint &pViewpoint, const std::string &pLayerName, bool pIsAnimated=true)
	Moves the camera to a specific view point. More...
void	gotoLookAtPosition (const VgEngine::VgPosition &pPosition, const std::string &pLayerName, bool pIsAnimated=true)
	Moves the camera so that it is focused on a given position. More...
void	refreshParameters (unsigned int pWidth, unsigned int pHeight)
	Refreshes the inner parameters. More...
unsigned int	getCurrentLayerIndex () const
VgEngine::VgPosition *	getCameraPosition ()
void	onLayerSelected ()
void	onSelectorReady ()
void	animateCameraToViewPoint (const VgEngine::VgIViewPoint &pViewPoint, float pDuration, bool pIsAnimated)
void	animateLayersFromCloseToStackView (eFromToViewEnum pDirection, float pDuration, bool pIsAnimated)
VgEngine::VgPosition	getPositionForLayerInGlobalView (unsigned int pLayerIndex, unsigned int pFocusedLayer)
	Gets the position for a layer when in global view. More...
VgEngine::VgPosition	getPositionForLayerInDetailedView (unsigned int pLayerIndex, unsigned int pFocusedLayer)
	Gets the position for a layer when in detailed view. More...
void	animateLayerToPositionAndRotation (VgEngine::VgRefPtr< VgEngine::VgLayer >const &pLayer, const VgEngine::VgPosition &pStartPos, const VgEngine::VgPosition &pEndPos, VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback >const &pCallback, float pDuration, float pStartAngle, float pEndAngle)
	Gets the position for a layer when in detailed view. More...
VgEngine::VgIViewPoint &	getStackViewPoint ()
void	setStackCenterPosition (const VgEngine::VgPosition &pCenter)
	Sets the stack center position. More...
const VgEngine::VgPosition &	getStackCenter ()
	Get the stack center. More...
void	refreshStackView ()
	Force the global stack view to redraw it self. More...
void	setParam (const VgMyConfigurableParam pParam, const double pDouble)
	Allows application to customise the look and feel of the VgMyStackedLayerAndCameraHandler. More...
double	getParam (const VgMyConfigurableParam pParam)
	Retrieve a parameter value. More...
void	updateManipulatorForGlobalView (bool pIsGlobalView)
	Updates the manipulator, according to the stack state. More...

Static Public Member Functions
static double	computeAngularDistance (double pA, double pB)
	Computes the angular distance between two angle values in degrees. More...

Protected Member Functions
VgEngine::VgRefPtr < VgEngine::VgIAnimationCallback >	registerCallback (VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback > pCallback, unsigned int pLayerIndex)
void	setDefaultStackParams ()
void	calculateDynamicStackParams ()
void	gotoLayerInGlobalView (const unsigned int pLayerIndex, bool pIsAnimated)
void	gotoLayerInDetailedView (const unsigned int pLayerIndex, bool pIsAnimated)

Protected Attributes
bool	mUsePinchToSwitchGlobalToDetailed
VgApplication::VgIApplication *	mVgApplication
VgMyLayerAndCameraListener *	mLayerUpdateListener
unsigned int	mCurrentLayerIndex
unsigned int	mPreviousLayerIndex
bool	mIsLayerStackDisplayed
bool	mIsViewModeInitialized
VgEngine::VgIViewPoint	mCamStartViewPoint
double	mParam [eMaxDoubleParams]
VgEngine::VgPosition	mStackCenter
VgEngine::VgIViewPoint	mCameraGlobalViewPoint
VgEngine::VgRefPtr < VgEngine::VgIAnimationCallback >	mCameraCallback
std::vector < VgEngine::VgRefPtr < VgEngine::VgIAnimationCallback > >	mLayersCallback
VgEngine::VgRefPtr < FloorSelectorManipulator >	mManipulatorListener
std::hash_map< std::string, float >	mLODsFactors
std::hash_map< std::string, float >	mLoadFactors

Detailed Description

Controls the camera & the Layer display.

This helper simplifies the management of the camera wihtin a stack of layer. This layers are usually floors.

IMPLEMENTATION TIPS: This is an advanced class. You can customize it at will to change its behavior or get some inspiration to build other eye-candy display & behavior for your layers (carousel for example) This would require knowledge in 3D mathematics.

Member Typedef Documentation

typedef enum VgMyStackedLayerAndCameraHandler::VgMyConfigurableParam VgMyStackedLayerAndCameraHandler::VgMyConfigurableParam

The below enum represents parameters that can be configured to change the behaviour of the VgMyStackedLayerAndCameraHandler object.

Member Enumeration Documentation

enum VgMyStackedLayerAndCameraHandler::eFromToViewEnum

Enumerator
eFromStackToDetailedView
eFromDetailedToStackView
eFromGlobalToGlobaView

enum VgMyStackedLayerAndCameraHandler::VgMyConfigurableParam

The below enum represents parameters that can be configured to change the behaviour of the VgMyStackedLayerAndCameraHandler object.

Enumerator
eFarAwayHeight	This distance will be applied to the layers which are neighbouring the current layers when in detailed view.
eStackViewHeading	Heading used when the stack is displayed. Note: The default heading comes from "yaw" attribute of the "camera" tag within the bundles configuration file.
eStackViewPitch	Pitch used when the stack is displayed.
eLayerMaxSize	The maximum distance (meters) across the dataset. Setting this parameter will automatically reset the following parameters: eStackViewDistance eLayerDistance eLayerDistanceFromCurrent Note the default max size is calculated from the limits of the dataset indicated by the bundles configuration file.
eStackViewDistance	Distance between the camera and the layer stack. Note: This param will be re-calculated automatically given the following conditions when eLayerMaxSize is set. when the refreshParameters(pWidth, pHeight) is called. When this value is calculated automatically, the camera will be displaced just far enough away to ensure that the width of the eLayerMaxSize will fit within the available view width.
eLayerDistance	Distance between layers (except ones around the current) Note: This param will be re-calculated automatically given the following conditions when eLayerMaxSize is set. when the refreshParameters(pWidth, pHeight) is called.
eLayerDistanceFromCurrent	Distance between layers around the current. Note: This param will be re-calculated automatically given the following conditions when eLayerMaxSize is set. when the refreshParameters(pWidth, pHeight) is called.
eAnimateToDetailCameraDuration	Duration of of camera animation when moving to detailed view. Note : camera animation duration must be <= layer animation duration due to the manipulator change at the end of layers animation.
eAnimateToGlobalCameraDuration	Duration of camera animation when moving to global view (seconds).
eAnimateToGlobalLayerDuration	Duration of layer animation when moving to global view (seconds).
eAnimateToDetailLayerDuration	See note assocated with eAnimateToDetailCameraDuration to see restrictions associated with this value (seconds).
eAnimateChangeOfLayerDuration	Duration of animation when changing layer within the global view (seconds).
eAnimateCancelPinchDuration	Duration of animation when cancelling a pinch gesture (seconds).
eAnimateCancelDragDuration	Duration of animation when cancelling a drag gesture (seconds).
eAnimateMaxViewPointDuration	Limits the maximum possible duration when animating to a view point.
eChangeLayerTriggerThreshold	This threshold determines how long a drag is required in the global stack view before the current layer is changed. Measured as a percentage value [0.0 - 1.0] of the views pixel.
eStackNonActiveLayerAngle	Angle on stack view for non active layer (in degrees)
eStackActiveLayerAngle	Angle on stack view for non active layer (in degrees)
eMaxDoubleParams	DO NOT USE.

Constructor & Destructor Documentation

VgMyStackedLayerAndCameraHandler::VgMyStackedLayerAndCameraHandler	(	VgApplication::VgIApplication *	pVgApplication,
		VgMyLayerAndCameraListener *	pListener,
		unsigned int	pViewWidthInPixels,
		unsigned int	pViewHeightInPixels
	)

virtual VgMyStackedLayerAndCameraHandler::~VgMyStackedLayerAndCameraHandler ( )

virtual

Member Function Documentation

void VgMyStackedLayerAndCameraHandler::animateCameraToViewPoint	(	const VgEngine::VgIViewPoint &	pViewPoint,
		float	pDuration,
		bool	pIsAnimated
	)

void VgMyStackedLayerAndCameraHandler::animateLayersFromCloseToStackView	(	eFromToViewEnum	pDirection,
		float	pDuration,
		bool	pIsAnimated
	)

void VgMyStackedLayerAndCameraHandler::animateLayerToPositionAndRotation	(	VgEngine::VgRefPtr< VgEngine::VgLayer >const &	pLayer,
		const VgEngine::VgPosition &	pStartPos,
		const VgEngine::VgPosition &	pEndPos,
		VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback >const &	pCallback,
		float	pDuration,
		float	pStartAngle,
		float	pEndAngle
	)

Gets the position for a layer when in detailed view.

Parameters

pLayer	pointer to layer to manipulate
pStartPos	starting position of layer. If not the same as its current position it will jump.
pEndPos	ending position of layer.
pCallback	callback at end of animation.
pDuration	duration of animation in seconds.
pStartAngle	start angle of layer, used for carrousel mode, otherwise use 0.0f
pEndAngle	start angle of layer, used for carrousel mode, otherwise use 0.0f

void VgMyStackedLayerAndCameraHandler::calculateDynamicStackParams ( )

protected

static double VgMyStackedLayerAndCameraHandler::computeAngularDistance ( double  pA, double  pB  )

static

Computes the angular distance between two angle values in degrees.

Takes the 360 degrees periodicity into account.

Parameters

pA	The first angle (in degrees).
pB	The second angle (in degrees).

Returns

The angular distance between the two angles (in [0, 180]).

VgEngine::VgPosition* VgMyStackedLayerAndCameraHandler::getCameraPosition

(

)

unsigned int VgMyStackedLayerAndCameraHandler::getCurrentLayerIndex

(

)

const

const std::string& VgMyStackedLayerAndCameraHandler::getFocusedLayerName ( )

virtual

Gets the focused layer's name.

The "focused" layer is the one that is displayed in the detailled view. if the global view is displayed, the focused layer should be the most visible one.

Returns

The focused layer's name.

Implements VgMyLayerAndCameraHandler.

bool VgMyStackedLayerAndCameraHandler::getLayerName ( const unsigned int  pLayerIndex, std::string &  pLayerNameOut  )

virtual

Returns the layer name for a given indes.

Parameters

pLayerIndex	Layer index, should be less than getNumberOfLayers().
pLayerNameOut	string to set with layer name.

Returns

true if name was set, false if pLayerIndex is greater or equal to getNumberOfLayers().

Implements VgMyLayerAndCameraHandler.

unsigned int VgMyStackedLayerAndCameraHandler::getNumberOfLayers ( )

virtual

Returns the number of layers.

Implements VgMyLayerAndCameraHandler.

double VgMyStackedLayerAndCameraHandler::getParam

(

const VgMyConfigurableParam

pParam

)

Retrieve a parameter value.

VgEngine::VgPosition VgMyStackedLayerAndCameraHandler::getPositionForLayerInDetailedView	(	unsigned int	pLayerIndex,
		unsigned int	pFocusedLayer
	)

Gets the position for a layer when in detailed view.

Parameters

pLayerIndex	The index of the layer whose position is to be calculated
pFocusedLayer	Layer The index of the layer which currently has the stacked view focus.

Returns

The position for the requested layer.

VgEngine::VgPosition VgMyStackedLayerAndCameraHandler::getPositionForLayerInGlobalView	(	unsigned int	pLayerIndex,
		unsigned int	pFocusedLayer
	)

Gets the position for a layer when in global view.

Parameters

pLayerIndex	The index of the layer whose position is to be calculated
pFocusedLayer	Layer The index of the layer which currently has the stacked view focus.

Returns

The position for the requested layer.

const VgEngine::VgPosition& VgMyStackedLayerAndCameraHandler::getStackCenter

(

)

Get the stack center.

VgEngine::VgIViewPoint& VgMyStackedLayerAndCameraHandler::getStackViewPoint

(

)

void VgMyStackedLayerAndCameraHandler::gotoLayer ( const std::string &  pLayerName, bool  pIsAnimated = true  )

virtual

Focus a specific layer.

Parameters

pLayerName	Layer that will be focused. keeps current mode.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::gotoLayer ( const unsigned int  pLayerIndex, bool  pIsAnimated = true  )

virtual

Focus a specific layer.

Parameters

pLayerIndex	Layer index which is associated with the returned list given by VgLayerManager::getLayers(). keeps current mode.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::gotoLayerInDetailedView ( const unsigned int  pLayerIndex, bool  pIsAnimated  )

protected

void VgMyStackedLayerAndCameraHandler::gotoLayerInGlobalView ( const unsigned int  pLayerIndex, bool  pIsAnimated  )

protected

void VgMyStackedLayerAndCameraHandler::gotoLookAtPosition ( const VgEngine::VgPosition &  pPosition, const std::string &  pLayerName, bool  pIsAnimated = true  )

virtual

Moves the camera so that it is focused on a given position.

The camera's view, heading, pitch are always conserved. The altitude of pPosition is automatically set to zero.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note

If the stack is in global view, the camera will not change.

Parameters

pPosition	The position to focus on.
pLayerName	The name of the layer associated with the position.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::gotoViewpoint ( const VgEngine::VgIViewPoint &  pViewPoint, const std::string &  pLayerName, bool  pIsAnimated = true  )

virtual

Moves the camera to a specific view point.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note

If the stack is in global view, the camera will not change.

Parameters

pViewPoint	The view point to associate with the camera
pLayerName	The layer which should be given the focus.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

bool VgMyStackedLayerAndCameraHandler::isGlobalView ( )

virtual

Returns

TRUE if the Handler displays the global view. FALSE if displaying the detailed view.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::onLayerSelected

(

)

void VgMyStackedLayerAndCameraHandler::onSelectorReady

(

)

void VgMyStackedLayerAndCameraHandler::refreshParameters ( unsigned int  pWidth, unsigned int  pHeight  )

virtual

Refreshes the inner parameters.

Typically, subclasses can use it to recompute their view parameters when the rendering size changes.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::refreshStackView

(

)

Force the global stack view to redraw it self.

Needs to be called after having changed any of the configurable parameters.

VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback > VgMyStackedLayerAndCameraHandler::registerCallback ( VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback >  pCallback, unsigned int  pLayerIndex  )

protected

void VgMyStackedLayerAndCameraHandler::setDefaultStackParams ( )

protected

void VgMyStackedLayerAndCameraHandler::setParam	(	const VgMyConfigurableParam	pParam,
		const double	pDouble
	)

Allows application to customise the look and feel of the VgMyStackedLayerAndCameraHandler.

Parameters

pParam	The parameter to be set. Please see the VgMyConfigurableParam type to gain an understanding of what each configurable parameter is responsible for.
pDouble	The value to be set.

Note

If parameters are changed via this method, then it is necessary to call refreshStackView() in order for the global stack view to be updated to reflect the new values.

void VgMyStackedLayerAndCameraHandler::setStackCenterPosition

(

const VgEngine::VgPosition &

pCenter

)

Sets the stack center position.

The stack center position is shared by all the layer that make up the stack.

void VgMyStackedLayerAndCameraHandler::switchToDetailedView ( bool  pIsAnimated = true )

virtual

Switches from the global to the detailled view.

Do nothing if alrady in detailled view.

Parameters

pIsAnimated

If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::switchToGlobalView ( bool  pIsAnimated = true )

virtual

Switches from the detailledView to the global view.

Do nothing if already in global view.

Parameters

pIsAnimated

If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::updateManipulatorForGlobalView

(

bool

pIsGlobalView

)

Updates the manipulator, according to the stack state.

Parameters

pIsGlobalView

True if the stack state is currently the global view. False if the the stack state is detailed view.

Member Data Documentation

VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback > VgMyStackedLayerAndCameraHandler::mCameraCallback

protected

VgEngine::VgIViewPoint VgMyStackedLayerAndCameraHandler::mCameraGlobalViewPoint

protected

VgEngine::VgIViewPoint VgMyStackedLayerAndCameraHandler::mCamStartViewPoint

protected

unsigned int VgMyStackedLayerAndCameraHandler::mCurrentLayerIndex

protected

bool VgMyStackedLayerAndCameraHandler::mIsLayerStackDisplayed

protected

bool VgMyStackedLayerAndCameraHandler::mIsViewModeInitialized

protected

std::vector<VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback > > VgMyStackedLayerAndCameraHandler::mLayersCallback

protected

VgMyLayerAndCameraListener* VgMyStackedLayerAndCameraHandler::mLayerUpdateListener

protected

std::hash_map<std::string, float> VgMyStackedLayerAndCameraHandler::mLoadFactors

protected

std::hash_map<std::string, float> VgMyStackedLayerAndCameraHandler::mLODsFactors

protected

VgEngine::VgRefPtr< FloorSelectorManipulator > VgMyStackedLayerAndCameraHandler::mManipulatorListener

protected

double VgMyStackedLayerAndCameraHandler::mParam[eMaxDoubleParams]

protected

unsigned int VgMyStackedLayerAndCameraHandler::mPreviousLayerIndex

protected

VgEngine::VgPosition VgMyStackedLayerAndCameraHandler::mStackCenter

protected

bool VgMyStackedLayerAndCameraHandler::mUsePinchToSwitchGlobalToDetailed

protected

VgApplication::VgIApplication* VgMyStackedLayerAndCameraHandler::mVgApplication

protected

---

The documentation for this class was generated from the following file:

• VgMyStackedLayerAndCameraHandler.h
