Receives location provider events and when position tracking is enabled, will animate the camera to that location. More...

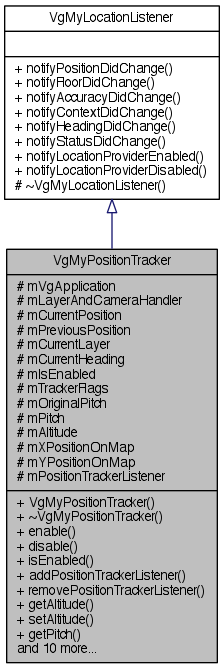

Inheritance diagram for VgMyPositionTracker:

Public Types
enum	{ ePositionTrackerPosition = 1 << 0, ePositionTrackerHeading = 1 << 1, ePositionTrackerAltitude = 1 << 2, ePositionTrackerPitch = 1 << 3 }
	Flags used to determine the behavior of the tracking camera. More...

Public Member Functions
	VgMyPositionTracker (VgApplication::VgIApplication pVgApplication, VgMyLayerAndCameraHandler pLayerAndCameraHandler, int pTrackerFlags)
	Constructor. More...

	~VgMyPositionTracker ()

void	enable ()
	Enable the Position Tracker. More...

void	disable ()
	Disable the Position Tracker. More...

bool	isEnabled ()

void	addPositionTrackerListener (VgMyPositionTrackerListener *pPositionTrackerListener)
	Add a listener to this position tracker. More...

void	removePositionTrackerListener (VgMyPositionTrackerListener *pPositionTrackerListener)
	Remove a listener to this position tracker. More...

double	getAltitude ()

void	setAltitude (double pAltitude)
	Sets the camera's altitude that's used when tracking. More...

double	getPitch ()

void	setPitch (double pPitch)
	Sets the camera's pitch that's used when tracking. More...

void	setPositionOnMap (const double pX, const double pY)
	Sets the screen location where the current position will appear. More...

void	notifyPositionDidChange (const std::string &pProvider, const VgEngine::VgPosition &pPosition)
	Called when the location has changed. More...

void	notifyFloorDidChange (const std::string &pProvider, const std::string &pFloor)
	Called when the floor has changed. More...

void	notifyAccuracyDidChange (const std::string &pProvider, double pAccuracy)
	Called when the accuracy has changed. More...

void	notifyContextDidChange (const std::string &pProvider, int pContext)
	Called when the context has changed. More...

void	notifyHeadingDidChange (const std::string &pProvider, double pHeading)
	Called when the heading has changed. More...

void	notifyStatusDidChange (const std::string &pProvider, int pStatus)
	Called when the status has changed. More...

void	notifyLocationProviderEnabled (const std::string &pProvider)
	Called when the provider is enabled. More...

void	notifyLocationProviderDisabled (const std::string &pProvider)
	Called when the provider is disabled. More...

Protected Attributes
VgApplication::VgIApplication *	mVgApplication

VgMyLayerAndCameraHandler *	mLayerAndCameraHandler

VgEngine::VgPosition	mCurrentPosition

VgEngine::VgPosition	mPreviousPosition

std::string	mCurrentLayer

double	mCurrentHeading

bool	mIsEnabled

int	mTrackerFlags

double	mOriginalPitch
	The camera's original pitch is recorded in order so that it can be reset when tracking is disabled. More...

double	mPitch
	The pitch to use when in tracking mode. More...

double	mAltitude
	The altitude to use when in tracking mode. More...

double	mXPositionOnMap

double	mYPositionOnMap

VgMyPositionTrackerListener *	mPositionTrackerListener

Additional Inherited Members
Protected Member Functions inherited from VgMyLocationListener
virtual	~VgMyLocationListener ()

Detailed Description

Receives location provider events and when position tracking is enabled, will animate the camera to that location.

Must be registered with VgMyLocationManager before it will receive location notification.

Member Enumeration Documentation

anonymous enum

Flags used to determine the behavior of the tracking camera.

Enumerator
ePositionTrackerPosition	The camera tracks the location's position. To determine where the position appears on the screen see VgMyPositionTracker::setPositionOnMap()
ePositionTrackerHeading	The camera tracks the location's heading.
ePositionTrackerAltitude	The camera is set to a specified altitude. To determine the altitude see VgMyPositionTracker::setAltitude
ePositionTrackerPitch	The camera is set to a specified pitch. To determine the altitude see VgMyPositionTracker::setPitch IMPORTANT: This feature will not function correctly when used in conjunction with global view.

Constructor & Destructor Documentation

VgMyPositionTracker::VgMyPositionTracker	(	VgApplication::VgIApplication *	pVgApplication,
		VgMyLayerAndCameraHandler *	pLayerAndCameraHandler,
		int	pTrackerFlags
	)

Constructor.

Parameters

pVgApplication	VgIApplication to use. Can't be NULL
pLayerAndCameraHandler	The interface which allows this class to manipulate the camera.
pTrackerFlags	Determines how the camera should behave when a new location is received.

VgMyPositionTracker::~VgMyPositionTracker ( )

Member Function Documentation

void VgMyPositionTracker::addPositionTrackerListener ( VgMyPositionTrackerListener * pPositionTrackerListener )

Add a listener to this position tracker.

Parameters

pPositionTrackerListener The position tracker listener to add. Currently, only one listener supported. If there is already a position tracking listener, this will override an existing one.

void VgMyPositionTracker::disable ( )

Disable the Position Tracker.

void VgMyPositionTracker::enable ( )

Enable the Position Tracker.

double VgMyPositionTracker::getAltitude ( )

Returns: Retrieves the camera's altitude used when tracking.

double VgMyPositionTracker::getPitch ( )

Returns: Retrieves the camera's pitch used when tracking.

bool VgMyPositionTracker::isEnabled ( )

Returns: The current enabled/disabled state of the position tracker.

void VgMyPositionTracker::notifyAccuracyDidChange	(	const std::string &	pProvider,
		double	pAccuracy
	)

virtual

Called when the accuracy has changed.

Parameters

pProvider	The location provider responsible for sending the notification.
pAccuracy	The new accuracy

Implements VgMyLocationListener.

void VgMyPositionTracker::notifyContextDidChange	(	const std::string &	pProvider,
		int	pContext
	)

virtual

Called when the context has changed.

Parameters

pProvider	The location provider responsible for sending the notification.
pContext	The new context

Implements VgMyLocationListener.

void VgMyPositionTracker::notifyFloorDidChange	(	const std::string &	pProvider,
		const std::string &	pFloor
	)

virtual

Called when the floor has changed.

Parameters

pProvider	The location provider responsible for sending the notification.
pFloor	The new floor

Implements VgMyLocationListener.

void VgMyPositionTracker::notifyHeadingDidChange	(	const std::string &	pProvider,
		double	pHeading
	)

virtual

Called when the heading has changed.

Heading is the horizontal direction of travel of this device, and is not related to the device orientation.

Parameters

pProvider	The location provider responsible for sending the notification.
pHeading	The new heading. The valid range for the heading is [0.0, 360.0]. Where 0.0 is North, and increasing values starts towards the East.

Implements VgMyLocationListener.

void VgMyPositionTracker::notifyLocationProviderDisabled ( const std::string & pProvider )

virtual

Called when the provider is disabled.

Parameters

pProvider The location provider responsible for sending the notification.

Implements VgMyLocationListener.

void VgMyPositionTracker::notifyLocationProviderEnabled ( const std::string & pProvider )

virtual

Called when the provider is enabled.

Parameters

pProvider The location provider responsible for sending the notification.

Implements VgMyLocationListener.

void VgMyPositionTracker::notifyPositionDidChange	(	const std::string &	pProvider,
		const VgEngine::VgPosition &	pPosition
	)

virtual

Called when the location has changed.

Parameters

pProvider	The location provider responsible for sending the notification
pPosition	The new position

Implements VgMyLocationListener.

void VgMyPositionTracker::notifyStatusDidChange	(	const std::string &	pProvider,
		int	pStatus
	)

virtual

Called when the status has changed.

Parameters

pProvider	The location provider responsible for sending the notification.
pStatus	The new status. See for available values.

Implements VgMyLocationListener.

void VgMyPositionTracker::removePositionTrackerListener ( VgMyPositionTrackerListener * pPositionTrackerListener )

Remove a listener to this position tracker.

Parameters

pPositionTrackerListener The position tracker listener to remove.

void VgMyPositionTracker::setAltitude ( double pAltitude )

Sets the camera's altitude that's used when tracking.

This value is only used if the ePositionTrackerAltitude flag is active.

Parameters

pAltitude The altitude to set. If pAltitude falls outside of the manipulator limits, then the limit value will be used.

void VgMyPositionTracker::setPitch ( double pPitch )

Sets the camera's pitch that's used when tracking.

This value is only used if the ePositionTrackerPitch flag is active. pPitch The pitch value to use when tracking a position. Accepted values are [0.0 to -90.0].

void VgMyPositionTracker::setPositionOnMap	(	const double	pX,
		const double	pY
	)

Sets the screen location where the current position will appear.

These values are only used when the ePositionTrackerPosition flag is active.

Parameters

pX	the normalized X screen coordinate (0 is on the left of the screen, 1 on the right).
pY	the normalized Y screen coordinate (0 is on the bottom of the screen, 1 on the top).

Member Data Documentation

double VgMyPositionTracker::mAltitude

protected

The altitude to use when in tracking mode.

double VgMyPositionTracker::mCurrentHeading

protected

std::string VgMyPositionTracker::mCurrentLayer

protected

VgEngine::VgPosition VgMyPositionTracker::mCurrentPosition

protected

bool VgMyPositionTracker::mIsEnabled

protected

VgMyLayerAndCameraHandler* VgMyPositionTracker::mLayerAndCameraHandler

protected

double VgMyPositionTracker::mOriginalPitch

protected

The camera's original pitch is recorded in order so that it can be reset when tracking is disabled.

double VgMyPositionTracker::mPitch

protected

The pitch to use when in tracking mode.

VgMyPositionTrackerListener* VgMyPositionTracker::mPositionTrackerListener

protected

VgEngine::VgPosition VgMyPositionTracker::mPreviousPosition

protected

int VgMyPositionTracker::mTrackerFlags

protected

VgApplication::VgIApplication* VgMyPositionTracker::mVgApplication

protected

double VgMyPositionTracker::mXPositionOnMap

protected

double VgMyPositionTracker::mYPositionOnMap

protected

The documentation for this class was generated from the following file:

VgMyPositionTracker.h
