FloorSelectorManipulator Class Reference

This manipulator handles the user's gestures while the layer selector is active. More...

Inherits VgApplication::VgISimpleGestureManipulatorListener, and VgApplication::VgISimpleGestureManipulatorListener.

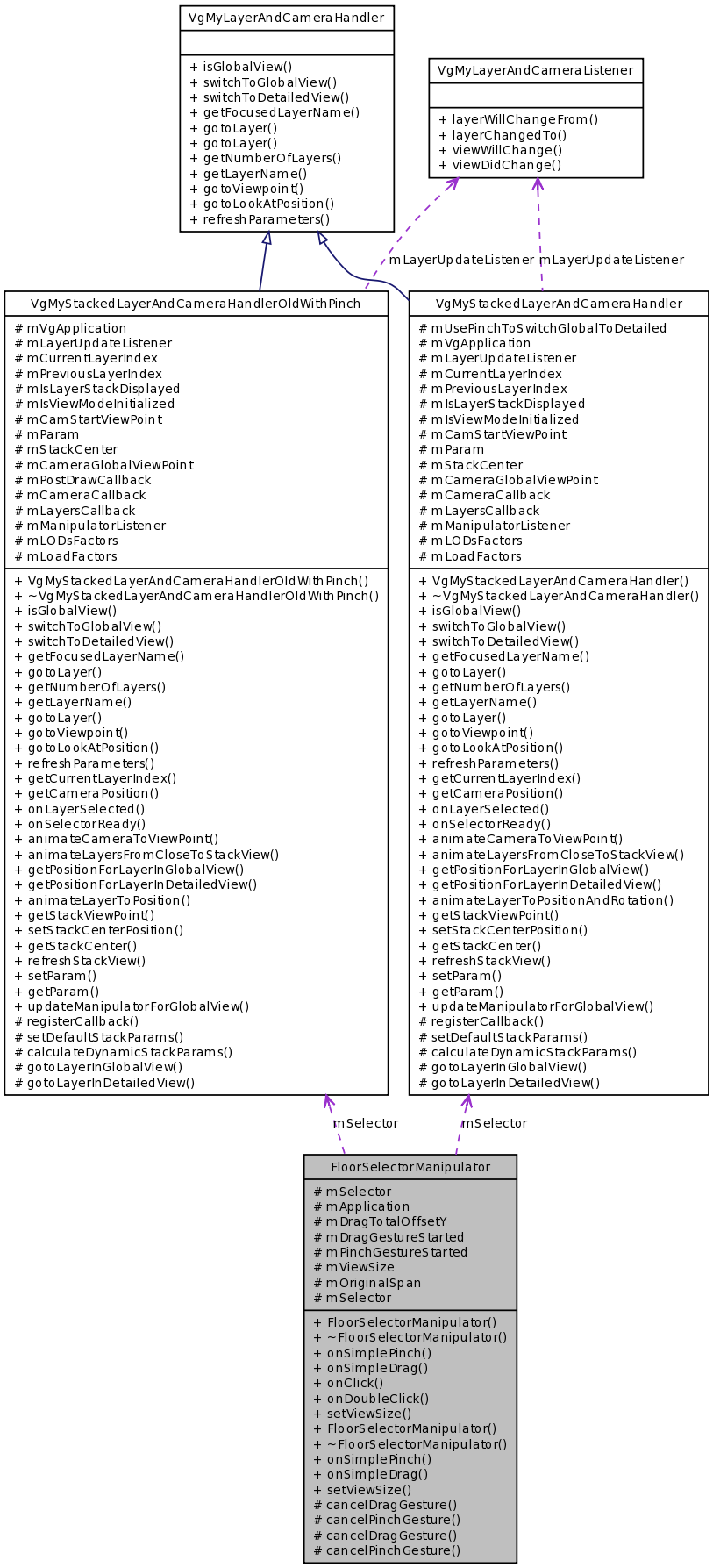

Collaboration diagram for FloorSelectorManipulator:

List of all members.

Public Member Functions
	FloorSelectorManipulator (VgApplication::VgIApplication *pApplication, VgMyStackedLayerAndCameraHandler *pSelector, unsigned int pViewWidthInPixels, unsigned int pViewHeightInPixels)
virtual	~FloorSelectorManipulator ()
virtual void	onSimplePinch (const VgEngine::VgGestureState pState, const float pSpan, const float pVelocity)
	This override triggers the selection of the centered floor if the pinch gesture is a quick zoom-in.
virtual void	onSimpleDrag (const VgEngine::VgGestureState pState, const unsigned int pNbTouch, const float pAverageXOffset, const float pAverageYOffset)
	This override displaces the layers when the user performs a vertical drag.
virtual void	onClick (float x, float y)
virtual void	onDoubleClick (float x, float y)
void	setViewSize (unsigned int pWidth, unsigned int pHeight)
	FloorSelectorManipulator (VgApplication::VgIApplication *pApplication, VgMyStackedLayerAndCameraHandlerOldWithPinch *pSelector, unsigned int pViewWidthInPixels, unsigned int pViewHeightInPixels)
virtual	~FloorSelectorManipulator ()
virtual void	onSimplePinch (const VgEngine::VgGestureState pState, const float pSpan, const float pVelocity)
	This override triggers the selection of the centered floor if the pinch gesture is a quick zoom-in.
virtual void	onSimpleDrag (const VgEngine::VgGestureState pState, const unsigned int pNbTouch, const float pAverageXOffset, const float pAverageYOffset)
	This override displaces the layers when the user performs a vertical drag.
void	setViewSize (unsigned int pWidth, unsigned int pHeight)
Protected Member Functions
void	cancelDragGesture ()
	Cancels a drag gesture by restoring the original camera view.
void	cancelPinchGesture ()
	Cancels a pinch gesture by restoring the original layers positions.
void	cancelDragGesture ()
	Cancels a drag gesture by restoring the original camera view.
void	cancelPinchGesture ()
	Cancels a pinch gesture by restoring the original layers positions.
Protected Attributes
VgMyStackedLayerAndCameraHandler *	mSelector
VgApplication::VgIApplication *	mApplication
int	mDragTotalOffsetY
bool	mDragGestureStarted
bool	mPinchGestureStarted
unsigned int	mViewSize [2]
float	mOriginalSpan
VgMyStackedLayerAndCameraHandlerOldWithPinch *	mSelector

---

Detailed Description

This manipulator handles the user's gestures while the layer selector is active.

The VgApplication::VgISimpleGestureManipulatorListener class allow developers to handle by themselves the gestures. The VgApplication::VgISimpleGestureManipulator is the only manipulator that accept a listener.

See VgApplication::VgISimpleGestureManipulatorListener and VgApplication::VgISimpleGestureManipulator documentation for more details.

---

Constructor & Destructor Documentation

FloorSelectorManipulator::FloorSelectorManipulator	(	VgApplication::VgIApplication *	pApplication,
		VgMyStackedLayerAndCameraHandler *	pSelector,
		unsigned int	pViewWidthInPixels,
		unsigned int	pViewHeightInPixels
	)

virtual FloorSelectorManipulator::~FloorSelectorManipulator

(

)

[virtual]

FloorSelectorManipulator::FloorSelectorManipulator	(	VgApplication::VgIApplication *	pApplication,
		VgMyStackedLayerAndCameraHandlerOldWithPinch *	pSelector,
		unsigned int	pViewWidthInPixels,
		unsigned int	pViewHeightInPixels
	)

virtual FloorSelectorManipulator::~FloorSelectorManipulator

(

)

[virtual]

---

Member Function Documentation

void FloorSelectorManipulator::cancelDragGesture

(

)

[protected]

Cancels a drag gesture by restoring the original camera view.

void FloorSelectorManipulator::cancelDragGesture

(

)

[protected]

Cancels a drag gesture by restoring the original camera view.

void FloorSelectorManipulator::cancelPinchGesture

(

)

[protected]

Cancels a pinch gesture by restoring the original layers positions.

void FloorSelectorManipulator::cancelPinchGesture

(

)

[protected]

Cancels a pinch gesture by restoring the original layers positions.

virtual void FloorSelectorManipulator::onClick	(	float	x,
		float	y
	)		[virtual]

virtual void FloorSelectorManipulator::onDoubleClick	(	float	x,
		float	y
	)		[virtual]

virtual void FloorSelectorManipulator::onSimpleDrag	(	const VgEngine::VgGestureState	pState,
		const unsigned int	pNbTouch,
		const float	pAverageXOffset,
		const float	pAverageYOffset
	)		[virtual]

This override displaces the layers when the user performs a vertical drag.

It triggers the layer change if the drag is above a threshold.

virtual void FloorSelectorManipulator::onSimpleDrag	(	const VgEngine::VgGestureState	pState,
		const unsigned int	pNbTouch,
		const float	pAverageXOffset,
		const float	pAverageYOffset
	)		[virtual]

This override displaces the layers when the user performs a vertical drag.

It triggers the layer change if the drag is above a threshold.

virtual void FloorSelectorManipulator::onSimplePinch	(	const VgEngine::VgGestureState	pState,
		const float	pSpan,
		const float	pVelocity
	)		[virtual]

This override triggers the selection of the centered floor if the pinch gesture is a quick zoom-in.

virtual void FloorSelectorManipulator::onSimplePinch	(	const VgEngine::VgGestureState	pState,
		const float	pSpan,
		const float	pVelocity
	)		[virtual]

This override triggers the selection of the centered floor if the pinch gesture is a quick zoom-in.

void FloorSelectorManipulator::setViewSize	(	unsigned int	pWidth,
		unsigned int	pHeight
	)

void FloorSelectorManipulator::setViewSize	(	unsigned int	pWidth,
		unsigned int	pHeight
	)

---

Member Data Documentation

VgApplication::VgIApplication * FloorSelectorManipulator::mApplication [protected]

bool FloorSelectorManipulator::mDragGestureStarted [protected]

int FloorSelectorManipulator::mDragTotalOffsetY [protected]

float FloorSelectorManipulator::mOriginalSpan [protected]

bool FloorSelectorManipulator::mPinchGestureStarted [protected]

VgMyStackedLayerAndCameraHandler* FloorSelectorManipulator::mSelector [protected]

VgMyStackedLayerAndCameraHandlerOldWithPinch* FloorSelectorManipulator::mSelector [protected]

unsigned int FloorSelectorManipulator::mViewSize [protected]

---

The documentation for this class was generated from the following files:

• VgMyStackedLayerAndCameraHandler.h
• VgMyStackedLayerAndCameraHandlerOldWithPinch.h
