VgMyStackedLayerAndCameraHandler Class Reference

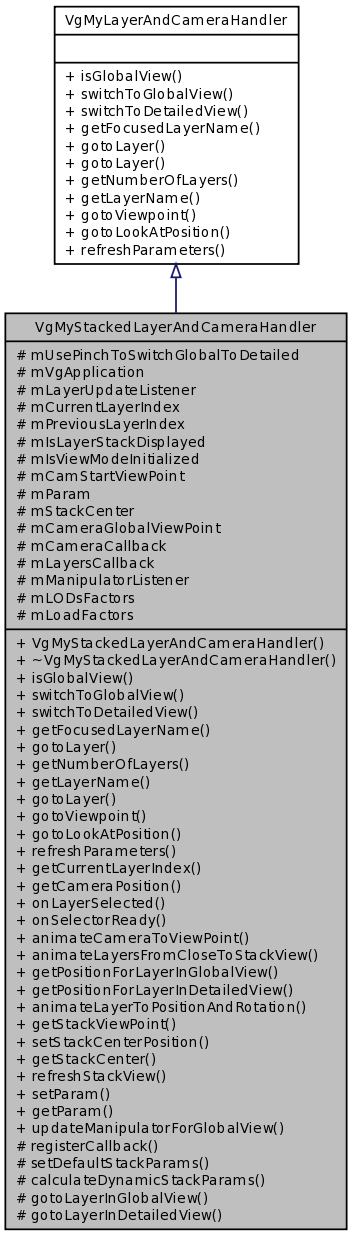

Inheritance diagram for VgMyStackedLayerAndCameraHandler:

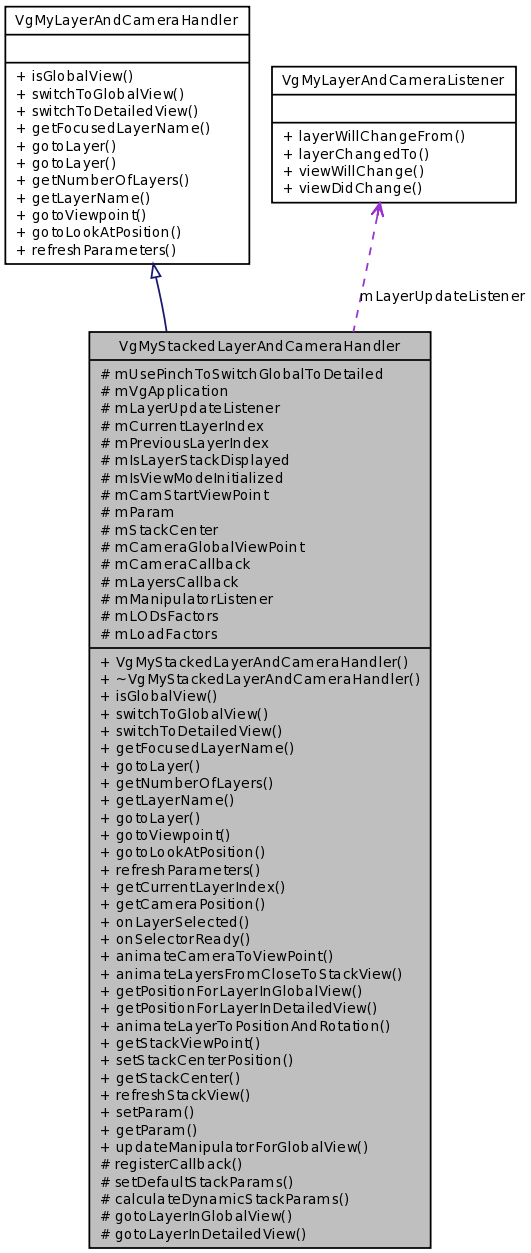

Collaboration diagram for VgMyStackedLayerAndCameraHandler:

List of all members.

Public Types
enum	VgMyConfigurableParam {   eFarAwayHeight, eStackViewHeading, eStackViewPitch, eLayerMaxSize,   eStackViewDistance, eLayerDistance, eLayerDistanceFromCurrent, eAnimateToDetailCameraDuration,   eAnimateToGlobalCameraDuration, eAnimateToGlobalLayerDuration, eAnimateToDetailLayerDuration, eAnimateChangeOfLayerDuration,   eAnimateCancelPinchDuration, eAnimateCancelDragDuration, eAnimateMaxViewPointDuration, eChangeLayerTriggerThreshold,   eStackNonActiveLayerAngle, eStackActiveLayerAngle, eMaxDoubleParams }
enum	eFromToViewEnum { eFromStackToDetailedView, eFromDetailedToStackView, eFromGlobalToGlobaView }
typedef enum VgMyStackedLayerAndCameraHandler::VgMyConfigurableParam	VgMyConfigurableParam
Public Member Functions
	VgMyStackedLayerAndCameraHandler (VgApplication::VgIApplication *pVgApplication, VgMyLayerAndCameraListener *pListener, unsigned int pViewWidthInPixels, unsigned int pViewHeightInPixels)
virtual	~VgMyStackedLayerAndCameraHandler ()
bool	isGlobalView ()
void	switchToGlobalView (bool pIsAnimated=true)
	Switches from the detailledView to the global view.
void	switchToDetailedView (bool pIsAnimated=true)
	Switches from the global to the detailled view.
const std::string &	getFocusedLayerName ()
	Gets the focused layer's name.
void	gotoLayer (const std::string &pLayerName, bool pIsAnimated=true)
	Focus a specific layer.
unsigned int	getNumberOfLayers ()
	Returns the number of layers.
bool	getLayerName (const unsigned int pLayerIndex, std::string &pLayerNameOut)
	Returns the layer name for a given indes.
void	gotoLayer (const unsigned int pLayerIndex, bool pIsAnimated=true)
	Focus a specific layer.
void	gotoViewpoint (const VgEngine::VgIViewPoint &pViewpoint, const std::string &pLayerName, bool pIsAnimated=true)
	Moves the camera to a specific view point.
void	gotoLookAtPosition (const VgEngine::VgPosition &pPosition, const std::string &pLayerName, bool pIsAnimated=true)
	Moves the camera so that it is focused on a given position.
void	refreshParameters (unsigned int pWidth, unsigned int pHeight)
	Refreshes the inner parameters.
unsigned int	getCurrentLayerIndex () const
VgEngine::VgPosition *	getCameraPosition ()
void	onLayerSelected ()
void	onSelectorReady ()
void	animateCameraToViewPoint (const VgEngine::VgIViewPoint &pViewPoint, float pDuration, bool pIsAnimated)
void	animateLayersFromCloseToStackView (eFromToViewEnum pDirection, float pDuration, bool pIsAnimated)
VgEngine::VgPosition	getPositionForLayerInGlobalView (unsigned int pLayerIndex, unsigned int pFocusedLayer)
	Gets the position for a layer when in global view.
VgEngine::VgPosition	getPositionForLayerInDetailedView (unsigned int pLayerIndex, unsigned int pFocusedLayer)
	Gets the position for a layer when in detailed view.
void	animateLayerToPositionAndRotation (VgEngine::VgRefPtr< VgEngine::VgLayer >const &pLayer, const VgEngine::VgPosition &pStartPos, const VgEngine::VgPosition &pEndPos, VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback >const &pCallback, float pDuration, float pStartAngle, float pEndAngle)
	Gets the position for a layer when in detailed view.
VgEngine::VgIViewPoint &	getStackViewPoint ()
void	setStackCenterPosition (const VgEngine::VgPosition &pCenter)
const VgEngine::VgPosition &	getStackCenter ()
	Get the stack center.
void	refreshStackView ()
void	setParam (const VgMyConfigurableParam pParam, const double pDouble)
	Allows application to customise the look and feel of the VgMyStackedLayerAndCameraHandler.
double	getParam (const VgMyConfigurableParam pParam)
	Retrieve a parameter value.
void	updateManipulatorForGlobalView (bool pIsGlobalView)
	Updates the manipulator, according to the stack state.
Protected Member Functions
VgEngine::VgRefPtr < VgEngine::VgIAnimationCallback >	registerCallback (VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback > pCallback, unsigned int pLayerIndex)
void	setDefaultStackParams ()
void	calculateDynamicStackParams ()
void	gotoLayerInGlobalView (const unsigned int pLayerIndex, bool pIsAnimated)
void	gotoLayerInDetailedView (const unsigned int pLayerIndex, bool pIsAnimated)
Protected Attributes
bool	mUsePinchToSwitchGlobalToDetailed
VgApplication::VgIApplication *	mVgApplication
VgMyLayerAndCameraListener *	mLayerUpdateListener
unsigned int	mCurrentLayerIndex
unsigned int	mPreviousLayerIndex
bool	mIsLayerStackDisplayed
bool	mIsViewModeInitialized
VgEngine::VgIViewPoint	mCamStartViewPoint
double	mParam [eMaxDoubleParams]
VgEngine::VgPosition	mStackCenter
VgEngine::VgIViewPoint	mCameraGlobalViewPoint
VgEngine::VgRefPtr < VgEngine::VgIAnimationCallback >	mCameraCallback
std::vector < VgEngine::VgRefPtr < VgEngine::VgIAnimationCallback > >	mLayersCallback
VgEngine::VgRefPtr < FloorSelectorManipulator >	mManipulatorListener
std::hash_map< std::string, float >	mLODsFactors
std::hash_map< std::string, float >	mLoadFactors

---

Member Typedef Documentation

typedef enum VgMyStackedLayerAndCameraHandler::VgMyConfigurableParam VgMyStackedLayerAndCameraHandler::VgMyConfigurableParam

---

Member Enumeration Documentation

enum VgMyStackedLayerAndCameraHandler::eFromToViewEnum

Enumerator:

eFromStackToDetailedView
eFromDetailedToStackView
eFromGlobalToGlobaView

enum VgMyStackedLayerAndCameraHandler::VgMyConfigurableParam

Enumerator:

eFarAwayHeight
eStackViewHeading
eStackViewPitch
eLayerMaxSize
eStackViewDistance
eLayerDistance
eLayerDistanceFromCurrent
eAnimateToDetailCameraDuration
eAnimateToGlobalCameraDuration
eAnimateToGlobalLayerDuration
eAnimateToDetailLayerDuration
eAnimateChangeOfLayerDuration
eAnimateCancelPinchDuration
eAnimateCancelDragDuration
eAnimateMaxViewPointDuration
eChangeLayerTriggerThreshold
eStackNonActiveLayerAngle
eStackActiveLayerAngle
eMaxDoubleParams

---

Constructor & Destructor Documentation

VgMyStackedLayerAndCameraHandler::VgMyStackedLayerAndCameraHandler	(	VgApplication::VgIApplication *	pVgApplication,
		VgMyLayerAndCameraListener *	pListener,
		unsigned int	pViewWidthInPixels,
		unsigned int	pViewHeightInPixels
	)

virtual VgMyStackedLayerAndCameraHandler::~VgMyStackedLayerAndCameraHandler

(

)

[virtual]

---

Member Function Documentation

void VgMyStackedLayerAndCameraHandler::animateCameraToViewPoint	(	const VgEngine::VgIViewPoint &	pViewPoint,
		float	pDuration,
		bool	pIsAnimated
	)

void VgMyStackedLayerAndCameraHandler::animateLayersFromCloseToStackView	(	eFromToViewEnum	pDirection,
		float	pDuration,
		bool	pIsAnimated
	)

void VgMyStackedLayerAndCameraHandler::animateLayerToPositionAndRotation	(	VgEngine::VgRefPtr< VgEngine::VgLayer >const &	pLayer,
		const VgEngine::VgPosition &	pStartPos,
		const VgEngine::VgPosition &	pEndPos,
		VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback >const &	pCallback,
		float	pDuration,
		float	pStartAngle,
		float	pEndAngle
	)

Gets the position for a layer when in detailed view.

Parameters:

pLayer	pointer to layer to manipulate
pStartPos	starting position of layer. If not the same as its current position it will jump.
pEndPos	ending position of layer.
pCallback	callback at end of animation.
pDuration	duration of animation in seconds.
pStartAngle	start angle of layer, used for carrousel mode, otherwise use 0.0f
pEndAngle	start angle of layer, used for carrousel mode, otherwise use 0.0f

void VgMyStackedLayerAndCameraHandler::calculateDynamicStackParams

(

)

[protected]

VgEngine::VgPosition* VgMyStackedLayerAndCameraHandler::getCameraPosition

(

)

unsigned int VgMyStackedLayerAndCameraHandler::getCurrentLayerIndex

(

)

const

const std::string& VgMyStackedLayerAndCameraHandler::getFocusedLayerName

(

)

[virtual]

Gets the focused layer's name.

The "focused" layer is the one that is displayed in the detailled view. if the global view is displayed, the focused layer should be the most visible one.

Returns:

The focused layer's name.

Implements VgMyLayerAndCameraHandler.

bool VgMyStackedLayerAndCameraHandler::getLayerName	(	const unsigned int	pLayerIndex,
		std::string &	pLayerNameOut
	)		[virtual]

Returns the layer name for a given indes.

Parameters:

pLayerIndex	Layer index, should be less than getNumberOfLayers().
pLayerNameOut	string to set with layer name.

Returns:

true if name was set, false if pLayerIndex is greater or equal to getNumberOfLayers().

Implements VgMyLayerAndCameraHandler.

unsigned int VgMyStackedLayerAndCameraHandler::getNumberOfLayers

(

)

[virtual]

Returns the number of layers.

Implements VgMyLayerAndCameraHandler.

double VgMyStackedLayerAndCameraHandler::getParam

(

const VgMyConfigurableParam

pParam )

Retrieve a parameter value.

VgEngine::VgPosition VgMyStackedLayerAndCameraHandler::getPositionForLayerInDetailedView	(	unsigned int	pLayerIndex,
		unsigned int	pFocusedLayer
	)

Gets the position for a layer when in detailed view.

Parameters:

pLayerIndex	The index of the layer whose position is to be calculated
pFocused	Layer The index of the layer which currently has the stacked view focus.

Returns:

The position for the requested layer.

VgEngine::VgPosition VgMyStackedLayerAndCameraHandler::getPositionForLayerInGlobalView	(	unsigned int	pLayerIndex,
		unsigned int	pFocusedLayer
	)

Gets the position for a layer when in global view.

Parameters:

pLayerIndex	The index of the layer whose position is to be calculated
pFocused	Layer The index of the layer which currently has the stacked view focus.

Returns:

The position for the requested layer.

const VgEngine::VgPosition& VgMyStackedLayerAndCameraHandler::getStackCenter

(

)

Get the stack center.

VgEngine::VgIViewPoint& VgMyStackedLayerAndCameraHandler::getStackViewPoint

(

)

void VgMyStackedLayerAndCameraHandler::gotoLayer	(	const std::string &	pLayerName,
		bool	pIsAnimated = true
	)		[virtual]

Focus a specific layer.

Parameters:

pLayerName	Layer that will be focused. keeps current mode.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::gotoLayer	(	const unsigned int	pLayerIndex,
		bool	pIsAnimated = true
	)		[virtual]

Focus a specific layer.

Parameters:

pLayerName	Layer index which is associated with the returned list given by VgLayerManager::getLayers(). keeps current mode.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::gotoLayerInDetailedView	(	const unsigned int	pLayerIndex,
		bool	pIsAnimated
	)		[protected]

void VgMyStackedLayerAndCameraHandler::gotoLayerInGlobalView	(	const unsigned int	pLayerIndex,
		bool	pIsAnimated
	)		[protected]

void VgMyStackedLayerAndCameraHandler::gotoLookAtPosition	(	const VgEngine::VgPosition &	pPosition,
		const std::string &	pLayerName,
		bool	pIsAnimated = true
	)		[virtual]

Moves the camera so that it is focused on a given position.

The camera's view, heading, pitch are always conserved. The altitude of pPosition is automatically set to zero.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note:

If the stack is in global view, the camera will not change.

Parameters:

pPosition	The position to focus on.
pLayerName	The name of the layer associated with the position.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::gotoViewpoint	(	const VgEngine::VgIViewPoint &	pViewPoint,
		const std::string &	pLayerName,
		bool	pIsAnimated = true
	)		[virtual]

Moves the camera to a specific view point.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note:

If the stack is in global view, the camera will not change.

Parameters:

pViewPoint	The view point to associate with the camera
pLayerName	The layer which should be given the focus.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

bool VgMyStackedLayerAndCameraHandler::isGlobalView

(

)

[virtual]

Returns:

TRUE if the Handler displays the global view. FALSE if displaying the detailed view.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::onLayerSelected

(

)

void VgMyStackedLayerAndCameraHandler::onSelectorReady

(

)

void VgMyStackedLayerAndCameraHandler::refreshParameters	(	unsigned int	pWidth,
		unsigned int	pHeight
	)		[virtual]

Refreshes the inner parameters.

Typically, subclasses can use it to recompute their view parameters when the rendering size changes.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::refreshStackView

(

)

VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback > VgMyStackedLayerAndCameraHandler::registerCallback	(	VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback >	pCallback,
		unsigned int	pLayerIndex
	)		[protected]

void VgMyStackedLayerAndCameraHandler::setDefaultStackParams

(

)

[protected]

void VgMyStackedLayerAndCameraHandler::setParam	(	const VgMyConfigurableParam	pParam,
		const double	pDouble
	)

Allows application to customise the look and feel of the VgMyStackedLayerAndCameraHandler.

Parameters:

pParam

The parameter to be set. Please see the VgMyConfigurableParam type to gain an understanding of what each configurable parameter is responsible for.

Note:

If parameters are changed via this method, then it is necessary to call refreshStackView() in order for the global stack view to be updated to reflect the new values.

void VgMyStackedLayerAndCameraHandler::setStackCenterPosition

(

const VgEngine::VgPosition &

pCenter )

void VgMyStackedLayerAndCameraHandler::switchToDetailedView

(

bool

pIsAnimated = true )

[virtual]

Switches from the global to the detailled view.

Do nothing if alrady in detailled view.

Parameters:

pIsAnimated

If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::switchToGlobalView

(

bool

pIsAnimated = true )

[virtual]

Switches from the detailledView to the global view.

Do nothing if already in global view.

Parameters:

pIsAnimated

If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyStackedLayerAndCameraHandler::updateManipulatorForGlobalView

(

bool

pIsGlobalView )

Updates the manipulator, according to the stack state.

Parameters:

pIsGlobalView

True if the stack state is currently the global view. False if the the stack state is detailed view.

---

Member Data Documentation

VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback > VgMyStackedLayerAndCameraHandler::mCameraCallback [protected]

VgEngine::VgIViewPoint VgMyStackedLayerAndCameraHandler::mCameraGlobalViewPoint [protected]

VgEngine::VgIViewPoint VgMyStackedLayerAndCameraHandler::mCamStartViewPoint [protected]

unsigned int VgMyStackedLayerAndCameraHandler::mCurrentLayerIndex [protected]

bool VgMyStackedLayerAndCameraHandler::mIsLayerStackDisplayed [protected]

bool VgMyStackedLayerAndCameraHandler::mIsViewModeInitialized [protected]

std::vector<VgEngine::VgRefPtr< VgEngine::VgIAnimationCallback > > VgMyStackedLayerAndCameraHandler::mLayersCallback [protected]

VgMyLayerAndCameraListener* VgMyStackedLayerAndCameraHandler::mLayerUpdateListener [protected]

std::hash_map<std::string, float> VgMyStackedLayerAndCameraHandler::mLoadFactors [protected]

std::hash_map<std::string, float> VgMyStackedLayerAndCameraHandler::mLODsFactors [protected]

VgEngine::VgRefPtr< FloorSelectorManipulator > VgMyStackedLayerAndCameraHandler::mManipulatorListener [protected]

double VgMyStackedLayerAndCameraHandler::mParam[eMaxDoubleParams] [protected]

unsigned int VgMyStackedLayerAndCameraHandler::mPreviousLayerIndex [protected]

VgEngine::VgPosition VgMyStackedLayerAndCameraHandler::mStackCenter [protected]

bool VgMyStackedLayerAndCameraHandler::mUsePinchToSwitchGlobalToDetailed [protected]

VgApplication::VgIApplication* VgMyStackedLayerAndCameraHandler::mVgApplication [protected]

---

The documentation for this class was generated from the following file:

• VgMyStackedLayerAndCameraHandler.h
