The VgPoint object can be associated with a layer within the 3D view. More...

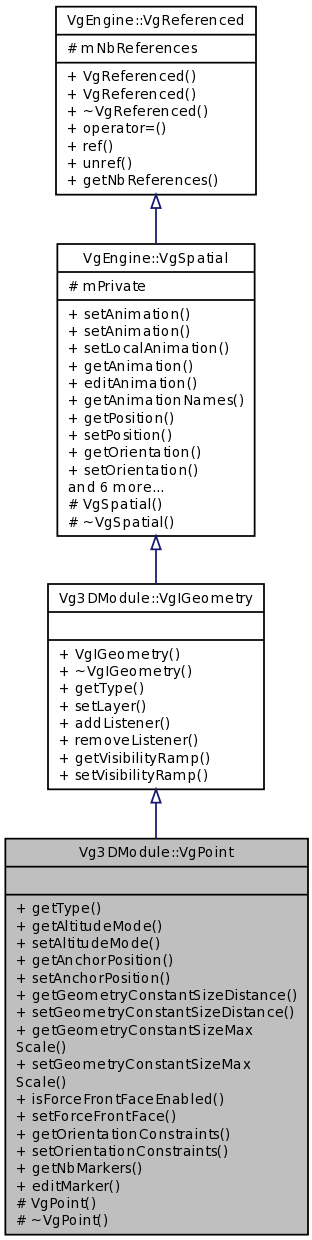

Inheritance diagram for Vg3DModule::VgPoint:

Public Types
typedef VgPointDescriptor	Descriptor

Public Member Functions
Vg3DModule::VgIGeometryType	getType () const

VgEngine::VgAltitudeMode	getAltitudeMode () const

void	setAltitudeMode (const VgEngine::VgAltitudeMode &pAltitudeMode)
	Sets the altitude mode. More...

VgEngine::VgAnchorMode	getAnchorPosition () const

void	setAnchorPosition (const VgEngine::VgAnchorMode &pAnchorMode)
	Sets the anchor position. More...

float	getGeometryConstantSizeDistance () const

void	setGeometryConstantSizeDistance (float pDistanceInMeters)
	Sets the distance at which the VgPoint does not become bigger as you approach it. More...

float	getGeometryConstantSizeMaxScale () const

void	setGeometryConstantSizeMaxScale (float pMaxScale)
	Sets the scale of the VgPoint when viewed from a distance equal to mGeometryConstantSizeDistance. More...

bool	isForceFrontFaceEnabled () const

void	setForceFrontFace (bool pEnable)
	Sets a flag to force the front face behavior. More...

VgEngine::VgOrientationConstraints	getOrientationConstraints () const

void	setOrientationConstraints (const VgEngine::VgOrientationConstraints &pConstraints)
	Sets new orientation constraints. More...

unsigned int	getNbMarkers () const

VgEngine::VgRefPtr< VgMarker >	editMarker (unsigned int pIndex)

Public Member Functions inherited from Vg3DModule::VgIGeometry
	VgIGeometry ()
	Constructor. More...

virtual	~VgIGeometry ()
	Destructor. More...

virtual void	setLayer (VgEngine::VgRefPtr< VgEngine::VgLayer > pLayer, bool pHaveGeographicCoherence=true)
	Sets the associated layer. More...

virtual void	addListener (VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback > pCallback)
	Adds a listener to the geometry object. More...

virtual void	removeListener (VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback > pCallback)
	Removes a listener from the geometry object. More...

const VgEngine::VgVisibilityRamp	getVisibilityRamp () const

void	setVisibilityRamp (const VgEngine::VgVisibilityRamp &pRamp)
	Sets the visibility ramp. More...

Public Member Functions inherited from VgEngine::VgSpatial
void	setAnimation (const std::string &pAnimationName, VgEngine::VgRefPtr< VgEngine::VgAnimation > &pAnimation)
	Sets an animation on this spatial. More...

void	setAnimation (VgEngine::VgRefPtr< VgEngine::VgAnimation > pAnimation)
	Sets an animation with an empty name on this spatial. More...

void	setLocalAnimation (VgEngine::VgRefPtr< VgEngine::VgAnimation > pAnimation)
	Sets an animation on this spatial. More...

VgConstRefPtr< VgAnimation >	getAnimation (const std::string &pName) const
	Gets an animation from the spatial's animation map. More...

VgRefPtr< VgAnimation >	editAnimation (const std::string &pName)
	Edits an animation from the spatial's animation map. More...

void	getAnimationNames (std::list< std::string > &pNameList) const
	Gets the list of the stored animation names. More...

VgEngine::VgPosition	getPosition () const
	Gets spatial's position. More...

virtual void	setPosition (const VgEngine::VgPosition &pPosition, bool pHaveGeographicCoherence=true)
	Sets the spatial position. More...

VgEngine::VgOrientation	getOrientation () const
	Gets spatial's orientation. More...

void	setOrientation (const VgEngine::VgOrientation &pOrientation)
	Sets the spatial orientation. More...

float	getScale () const

void	setScale (float pScale)
	Sets the spatial's scale. More...

int	getZIndex () const

void	setZIndex (int pZIndex)
	Sets the Z Index. More...

bool	isDrawnOnTop () const

void	setDrawOnTop (bool pEnable)
	Sets the drawOnTop flag. More...

Public Member Functions inherited from VgEngine::VgReferenced
	VgReferenced ()
	Constructor. More...

	VgReferenced (const VgReferenced &pThis)
	Copy constructor. More...

virtual	~VgReferenced ()
	Destructor. More...

VgReferenced &	operator= (const VgReferenced &pThis)
	Assignment operator. More...

void	ref () const
	This method is used to add a reference to this object. More...

void	unref () const
	This method is used to remove a reference to this object. More...

int	getNbReferences () const
	Retrieves the number of references to this object. More...

Protected Member Functions
	VgPoint ()
	Constructor. More...

virtual	~VgPoint ()
	Destructor. More...

Protected Member Functions inherited from VgEngine::VgSpatial
	VgSpatial ()
	Default constructor. More...

virtual	~VgSpatial ()
	Destructor. More...

Friends
class	VgEngine::VgInstanceFactory

class	VgEngine::VgObjectBridge

Additional Inherited Members
Protected Attributes inherited from VgEngine::VgSpatial
Private *	mPrivate
	Private. More...

Protected Attributes inherited from VgEngine::VgReferenced
int	mNbReferences
	The number of references to this object. More...

Detailed Description

The VgPoint object can be associated with a layer within the 3D view.

When the associated layer is visible, so to will the VgPoint. The VgPoint is located at a specified geographical position and is represented as a textured square.

To use a VgPoint, one must first create it (using Vg3DModule::VgInstanceFactory::instantiate) and then associate it with a layer (using setLayer).

...
VgApplication::VgIApplication* mVgApplication;
Vg3DModule::VgPointDescriptor lPointDesc;
...

// Instantiate the VgPoint object.
VgEngine::VgRefPtr< Vg3DModule::VgPoint > lPoint = mVgApplication->editEngine()->editInstanceFactory()->instantiate(lPointDesc);
const VgEngine::VgLayerManager::LayerList& lLayers = mVgApplication->editEngine()->editLayerManager()->getLayers();
// Choose the first layer.
VgEngine::VgRefPtr< VgEngine::VgLayer > lLayer = lLayers.at(0);
// Note: The Point will only be seen if the associated layer is visible.  See VgEngine::VgVgLayer for more information.
lPoint->setLayer(lLayer);
// To remove the Point from the layer.
lPoint->setLayer(NULL);
// If the point is no longer required, then we can release it's memory.
// But since it is reference counted we don't delete, we null-out the VgRefPtr.
lPoint = NULL;

Subclassing

It's possible to subclass VgPoint in order to add custom data. This is demonstrated by the following code snippet:

// Custom VgPoint class to encapsulate some additional information (just a simple string mName in this case)
class MyPoint : public Vg3DModule::VgPoint
{
public:
MyPoint(VgEngine::VgRefPtr< Vg3DModule::VgPoint >& pPoint, const std::string& pName)
   : mPoint(pPoint)
   , mName(pName)
{}
virtual ~MyPoint()
{
   mPoint = NULL;
}
virtual Vg3DModule::VgIGeometryType getType () const
{
   return mPoint->getType();
}
virtual const Vg3DModule::VgPointDescriptor& getDescriptor () const
{
   return mPoint->getDescriptor();
}
VgEngine::VgRefPtr< Vg3DModule::VgPoint > getPoint () const
{
   return mPoint;
}
const std::string& getName () const
{
   return mName;
}
protected:
VgEngine::VgRefPtr< Vg3DModule::VgPoint > mPoint;
// MyPoint specific information below
const std::string mName;
};

Once the Point is created, it can be wrapped by MyPoint and associated with a layer.

...
VgApplication::VgIApplication* mVgApplication;
Vg3DModule::VgPointDescriptor lPointDesc;
...
VgEngine::VgRefPtr< Vg3DModule::VgPoint > lPoint = mApplication->editEngine()->editInstanceFactory()->instantiate(lPointDescr);
MyPoint* lMyPoint = new MyPoint(lPoint.get());
lMyPoint->getPoint()->setLayer(lLayerName);

Version: 2.0

Member Typedef Documentation

typedef VgPointDescriptor Vg3DModule::VgPoint::Descriptor

Constructor & Destructor Documentation

Vg3DModule::VgPoint::VgPoint ( )

protected

Constructor.

virtual Vg3DModule::VgPoint::~VgPoint ( )

protectedvirtual

Destructor.

Member Function Documentation

VgEngine::VgRefPtr< VgMarker > Vg3DModule::VgPoint::editMarker ( unsigned int pIndex )

Returns: The marker attached to this point at the specified index. NULL if there is no marker at this index.

Version: 2.0.9263

VgEngine::VgAltitudeMode Vg3DModule::VgPoint::getAltitudeMode ( ) const

Returns: Altitude mode.

Version: 2.0.9263

VgEngine::VgAnchorMode Vg3DModule::VgPoint::getAnchorPosition ( ) const

Returns: the anchor position.

Version: 2.0.9263

float Vg3DModule::VgPoint::getGeometryConstantSizeDistance ( ) const

Returns: the distance at which the VgPoint does not become bigger as you approach it. When the camera is within this distance of the VgPoint, the visible size of the VgPoint on the screen will be the same as what it looked like when it was mGeometryConstantSizeDistance meters away. If set to 0.0, the size of the POI will be determined by mScale, regardless of it's distance from the camera. The default value of this property is 700.0.

Version: 2.0.9263

float Vg3DModule::VgPoint::getGeometryConstantSizeMaxScale ( ) const

Returns: the scale of the VgPoint when viewed from a distance equal to mGeometryConstantSizeDistance. The default value of this property is 1.0.

Version: 2.0.9263

unsigned int Vg3DModule::VgPoint::getNbMarkers ( ) const

Returns: Number of markers attached to this point.

Version: 2.0.9263

VgEngine::VgOrientationConstraints Vg3DModule::VgPoint::getOrientationConstraints ( ) const

Returns: Orientation constraints

Version: 2.0.9263

Vg3DModule::VgIGeometryType Vg3DModule::VgPoint::getType ( ) const

virtual

Returns: The geometry type.

Reimplemented from Vg3DModule::VgIGeometry.

bool Vg3DModule::VgPoint::isForceFrontFaceEnabled ( ) const

Returns: True if the front face behavior is forced.

Version: 2.0.9263

void Vg3DModule::VgPoint::setAltitudeMode ( const VgEngine::VgAltitudeMode & pAltitudeMode )

Sets the altitude mode.

Version: 2.0.9263

void Vg3DModule::VgPoint::setAnchorPosition ( const VgEngine::VgAnchorMode & pAnchorMode )

Sets the anchor position.

Version: 2.0.9263

void Vg3DModule::VgPoint::setForceFrontFace ( bool pEnable )

Sets a flag to force the front face behavior.

In cases where the camera can view the poi from behind, our engine will not display the label. For example this will happen if the VgPoint has a fixed orientation (it will not happen if it is always camera facing). Default value is false. Setting this to true will allow to view fixed VgPoints from behind.

Version: 2.0.9263

void Vg3DModule::VgPoint::setGeometryConstantSizeDistance ( float pDistanceInMeters )

Sets the distance at which the VgPoint does not become bigger as you approach it.

When the camera is within this distance of the VgPoint, the visible size of the VgPoint on the screen will be the same as what it looked like when it was mGeometryConstantSizeDistance meters away. If set to 0.0, the size of the POI will be determined by mScale, regardless of it's distance from the camera. The default value of this property is 700.0.

Version: 2.0.9263

void Vg3DModule::VgPoint::setGeometryConstantSizeMaxScale ( float pMaxScale )

Sets the scale of the VgPoint when viewed from a distance equal to mGeometryConstantSizeDistance.

The default value of this property is 1.0.

Version: 2.0.9263

void Vg3DModule::VgPoint::setOrientationConstraints ( const VgEngine::VgOrientationConstraints & pConstraints )

Sets new orientation constraints.

Version: 2.0.9263

Friends And Related Function Documentation

friend class VgEngine::VgInstanceFactory

friend

friend class VgEngine::VgObjectBridge

friend

The documentation for this class was generated from the following file:

VgPoint.h
