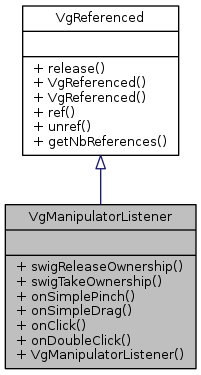

Inheritance diagram for VgManipulatorListener:

Public Member Functions
void	swigReleaseOwnership ()

void	swigTakeOwnership ()

void	onSimplePinch (VgGestureState pState, float pSpan, float pVelocity)

void	onSimpleDrag (VgGestureState pState, long pNbTouch, float pAverageXOffset, float pAverageYOffset)

void	onClick (float x, float y)

void	onDoubleClick (float x, float y)

	VgManipulatorListener ()

Public Member Functions inherited from VgReferenced
synchronized void	release ()

	VgReferenced ()

	VgReferenced (VgReferenced pThis)

void	ref ()

int	unref ()

int	getNbReferences ()

Detailed Description

Listener of simple gestures. It is a convenience class to ease simple gestures handling.

Version: 2.0; 2.1.19 Renamed from VgISimpleGestureManipulatorListener to VgManipulatorListener.

Constructor & Destructor Documentation

VgManipulatorListener.VgManipulatorListener ( )

void VgManipulatorListener.onClick	(	float	x,
		float	y
	)

Callback on a click gesture. This gesture has no state.

Parameters

x	normalized screen coordinate. 0.0f is left of screen, 1.0f is right.
y	normalized screen coordinate. 0.0f is top, 1.0f is bottom.

void VgManipulatorListener.onDoubleClick	(	float	x,
		float	y
	)

Callback on a double click gesture. This gesture has no state.

Remarks: these are the same parameters for VgICamera::pickGeographicPoint; there is no filtering of "onClick" events on a double click event, meaning each onDoubleClick event will be preceded by two onClick events.

Parameters

x	normalized screen coordinate. 0.0f is left of screen, 1.0f is right.
y	normalized screen coordinate. 0.0f is top, 1.0f is bottom.

void VgManipulatorListener.onSimpleDrag	(	VgGestureState	pState,
		long	pNbTouch,
		float	pAverageXOffset,
		float	pAverageYOffset
	)

Callback on a drag gesture.

Remarks: This callback handles dragging gestures up to 2 fingers at the same time. With 3 fingers or more, this callback won't be triggered.

Parameters

pState	The state associated with the gesture.
pNbTouch	Number of fingers on the touchpad.
pAverageXOffset	Average dragging offset in pixels since previous callback. The offset is computed as an average of each finger's offset.
pAverageYOffset	Average dragging offset in pixels since previous callback. The offset is computed as an average of each finger's offset.

void VgManipulatorListener.onSimplePinch	(	VgGestureState	pState,
		float	pSpan,
		float	pVelocity
	)

Callback on a pinch gesture with two fingers.

Parameters

pState	The state associated with the gesture.
pSpan	Distance in pixels between the two fingers.
pVelocity	Speed in pixels per milliseconds.

void VgManipulatorListener.swigReleaseOwnership ( )

void VgManipulatorListener.swigTakeOwnership ( )

The documentation for this class was generated from the following file:
