VgMyRoutingHelper Class Reference

Provides common operation on routes. More...

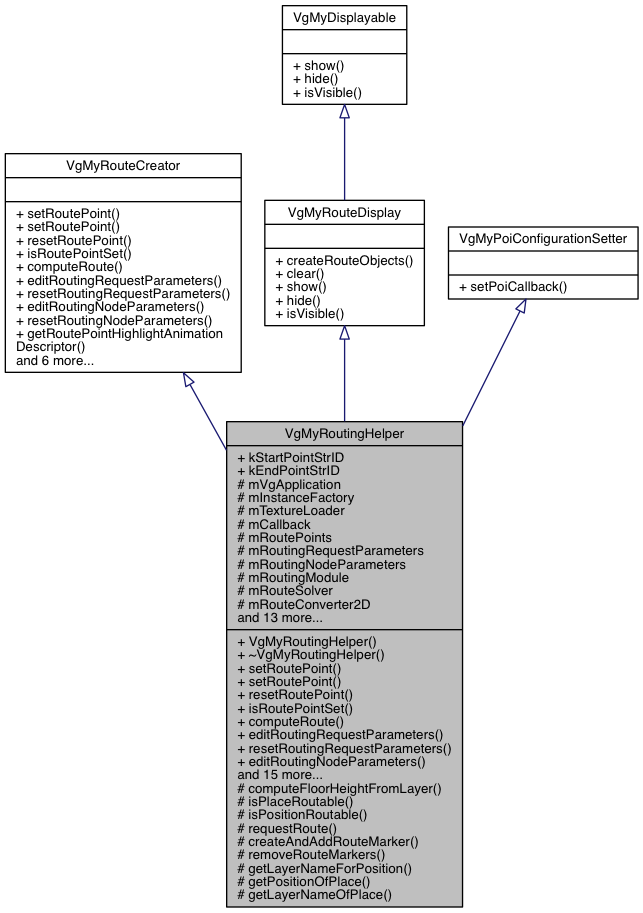

Inheritance diagram for VgMyRoutingHelper:

Classes
struct	LineObject
	Holds information on Lines to ease show/hide. More...
struct	PointObject
	Holds information on Points to ease show/hide. More...

Public Member Functions
	VgMyRoutingHelper (VgApplication::VgIApplication *pVgApplication, VgMyTextureLoader *pTextureLoader, VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback >const &pCallback, VgMyLayerAndCameraHandler *pLayerAndCamerHandler)
	Constructor. More...
virtual	~VgMyRoutingHelper ()
virtual bool	setRoutePoint (VgMyRouteCreator::RoutePoint pPoint, const std::string &pPlaceID)
	Implementation of interface : VgMyRouteCreator. More...
virtual bool	setRoutePoint (RoutePoint pPoint, const VgEngine::VgPosition &pPosition)
	Sets a RoutePoint to a position within the map. More...
virtual void	resetRoutePoint (VgMyRouteCreator::RoutePoint pPoint)
	Resets the place ID associated with a point. More...
virtual bool	isRoutePointSet (VgMyRouteCreator::RoutePoint pPoint)
virtual void	computeRoute ()
	Computes a route. More...
virtual VgRoutingModule::VgIRouteRequestParameters *	editRoutingRequestParameters ()
	Returns a reference to the routing request parameters that computeRoute uses. More...
virtual void	resetRoutingRequestParameters ()
	Resets the routing request parameters to their initial state. More...
virtual VgRoutingModule::VgIRoutingNodeParameters *	editRoutingNodeParameters ()
	Returns a reference to the routing node parameters that getRoutingNode for a position uses. More...
virtual void	resetRoutingNodeParameters ()
	Resets the routing node parameters to their initial state. More...
virtual void	setAvoidStairs (bool pDisabledFriendly)
	Sets up the routing request parameters to include/exclude non disabled-friendly attributes. More...
VgEngine::VgRefPtr < VgEngine::VgAnimationDescriptor >	getRoutePointHighlightAnimationDescriptor ()
	Returns the descriptor of an animation intended to emphasize routing points. More...
void	setRouteStyle (VgMyRouteStyler::RouteStyle pRouteStyle, bool pRecomputeRoute=true)
	Change the routing style of lines generated by the routing helper. More...
VgMyRouteStyler::RouteStyle	getRouteStyle () const
	get the current route style More...
void	setRouteWidth (float pWidth)
	Determines the width of the created route. More...
float	getRouteWidth ()
	Returns the current width of the created route. More...
void	setRouteMarkerHeight (float pHeight)
	Set route marker height. More...
bool	createRouteObjects (VgEngine::VgConstRefPtr< VgRoutingModule::VgIRoute > const &pRoute)
	Implementation of interface : VgMyRouteDisplay. More...
void	clear ()
	Clears the object. More...
void	show ()
	Declaration from interface : VgMyDisplayable. More...
void	hide ()
	Hides this Object. More...
bool	isVisible ()
void	setPoiCallback (const std::string &pIdentifier, VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback >const &pCallback)
	Implementation of interface : VgMyPoiConfigurationSetter. More...
bool	setRoutePoint (RoutePoint pPoint, const VgEngine::VgPosition &pPosition, const std::string &pLayerName)
	Sets a RoutePoint to a position and layer within the map. More...

Static Public Attributes
static const std::string	kStartPointStrID
static const std::string	kEndPointStrID

Protected Types
typedef std::map< std::string, VgEngine::VgRefPtr < Vg3DModule::VgIGeometryCallback > >	POICallbackMap

Protected Member Functions
double	computeFloorHeightFromLayer (const std::string &pLayer) const
bool	isPlaceRoutable (const std::string &pID)
bool	isPositionRoutable (const VgEngine::VgPosition &pPosition)
void	requestRoute (const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode > pOrigin, const std::vector< VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode > > &pDestinations)
	Requests a route from the routing module given some routing nodes. More...
void	createAndAddRouteMarker (VgMyRouteCreator::RoutePoint pPoint, const VgEngine::VgPosition &pPosition, const std::string &pLayerName)
	Add a route marker to the map. More...
void	removeRouteMarkers ()
std::string	getLayerNameForPosition (const VgEngine::VgPosition &pPosition)
VgEngine::VgPosition	getPositionOfPlace (const std::string &pPlaceId)
std::string	getLayerNameOfPlace (const std::string &pPlaceId)

Protected Attributes
VgApplication::VgIApplication *	mVgApplication
VgEngine::VgInstanceFactory *	mInstanceFactory
VgMyTextureLoader *	mTextureLoader
VgEngine::VgRefPtr < VgRoutingModule::VgIRouteCallback >	mCallback
std::map < VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr < VgRoutingModule::VgIRoutingNode > >	mRoutePoints
VgRoutingModule::VgIRouteRequestParameters	mRoutingRequestParameters
VgRoutingModule::VgIRoutingNodeParameters	mRoutingNodeParameters
VgRoutingModule::VgIRoutingModule *	mRoutingModule
VgRoutingModule::VgIRoutingSolver *	mRouteSolver
VgRoutingModule::VgIRouteConverter *	mRouteConverter2D
VgMapModule::VgIMapModule *	mMapModule
std::map < VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr < Vg3DModule::VgPoint > >	mHighlightedRoutePoints
bool	mIsRouteVisible
VgMyRouteStyler::RouteStyle	mRouteStyle
std::vector< PointObject >	mPoints
std::list< VgEngine::VgRefPtr < Vg3DModule::VgLink > >	mLinks
std::vector< LineObject >	mLines
POICallbackMap	mRoutePoiCallbacks
float	mObjectHeightOffset
float	mRouteWidth
VgMyLayerAndCameraHandler *	mLayerAndCameraHandler
VgEngine::VgRefPtr < VgEngine::VgAnimationDescriptor >	mHighlightedRoutePointsAnimationDescr
VgMyRouteStyler	mRouteStyler

Additional Inherited Members
Public Types inherited from VgMyRouteCreator
enum	RoutePoint {   eStart, eStop0, eStop1, eStop2,   eStop3, eStop4, eStop5, eStopMax = 7,   eEnd }
	The points that a route may have. More...

Detailed Description

Provides common operation on routes.

This helper simplifies the task of managing a route and showing/hiding it when changing floors (layers).

IMPLEMENTATION TIPS: In this class, you can configure :

• The image used for the route.
• The starting&ending POIs (images, callback etc etc)

Member Typedef Documentation

typedef std::map<std::string, VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback > > VgMyRoutingHelper::POICallbackMap

protected

Constructor & Destructor Documentation

VgMyRoutingHelper::VgMyRoutingHelper	(	VgApplication::VgIApplication *	pVgApplication,
		VgMyTextureLoader *	pTextureLoader,
		VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback >const &	pCallback,
		VgMyLayerAndCameraHandler *	pLayerAndCamerHandler
	)

Constructor.

You can customize the textures here.

virtual VgMyRoutingHelper::~VgMyRoutingHelper ( )

virtual

Member Function Documentation

void VgMyRoutingHelper::clear ( )

virtual

Clears the object.

Implements VgMyRouteDisplay.

double VgMyRoutingHelper::computeFloorHeightFromLayer ( const std::string &  pLayer ) const

protected

virtual void VgMyRoutingHelper::computeRoute ( )

virtual

Computes a route.

Remarks

Works only if both end points are set.

Calling this method often will result in poor performance of the map.

Implements VgMyRouteCreator.

void VgMyRoutingHelper::createAndAddRouteMarker ( VgMyRouteCreator::RoutePoint  pPoint, const VgEngine::VgPosition &  pPosition, const std::string &  pLayerName  )

protected

Add a route marker to the map.

Uses a RoutePoint to determine if it is start or end. Uses the position to place the point. Uses the pLayerName to determine which layer to put point, if the pLayerName is empty it will use the altitude of the pPosition to determine the layer. Use the pLayerName to reduce the computation or to select the right layer on maps that have multiple layers at the same height (e.g. multibuilding scenarios)

Parameters

pPoint	routing node either start or end
pPosition	to place point
pLayerName	optional layername of point if known.

Version

2.1.2

bool VgMyRoutingHelper::createRouteObjects ( VgEngine::VgConstRefPtr< VgRoutingModule::VgIRoute > const &  pRoute )

virtual

Implementation of interface : VgMyRouteDisplay.

Creates the routes and its associated POIs

You can customize the route display as well as its starting&ending points.

Implements VgMyRouteDisplay.

virtual VgRoutingModule::VgIRoutingNodeParameters* VgMyRoutingHelper::editRoutingNodeParameters ( )

virtual

Returns a reference to the routing node parameters that getRoutingNode for a position uses.

Used for special configurations, for example you may want to use eRoutingNodeOptionsOnEdge and exclude the modality "shuttle" on edges.

Returns

a reference to the routing node parameters to be used on the next getRoutingNode for a position.

Implements VgMyRouteCreator.

virtual VgRoutingModule::VgIRouteRequestParameters* VgMyRoutingHelper::editRoutingRequestParameters ( )

virtual

Returns a reference to the routing request parameters that computeRoute uses.

Returns

a reference to the routing request parameters to be used on the next computeRoute.

Implements VgMyRouteCreator.

std::string VgMyRoutingHelper::getLayerNameForPosition ( const VgEngine::VgPosition &  pPosition )

protected

std::string VgMyRoutingHelper::getLayerNameOfPlace ( const std::string &  pPlaceId )

protected

VgEngine::VgPosition VgMyRoutingHelper::getPositionOfPlace ( const std::string &  pPlaceId )

protected

VgEngine::VgRefPtr< VgEngine::VgAnimationDescriptor > VgMyRoutingHelper::getRoutePointHighlightAnimationDescriptor ( )

virtual

Returns the descriptor of an animation intended to emphasize routing points.

Implements VgMyRouteCreator.

VgMyRouteStyler::RouteStyle VgMyRoutingHelper::getRouteStyle ( ) const

virtual

get the current route style

Returns

current route style.

Implements VgMyRouteCreator.

float VgMyRoutingHelper::getRouteWidth ( )

virtual

Returns the current width of the created route.

Returns

The current width in meters

Implements VgMyRouteCreator.

void VgMyRoutingHelper::hide ( )

virtual

Hides this Object.

No effect if it is already hidden.

Implements VgMyRouteDisplay.

bool VgMyRoutingHelper::isPlaceRoutable ( const std::string &  pID )

protected

Returns

true if the pID is routable

bool VgMyRoutingHelper::isPositionRoutable ( const VgEngine::VgPosition &  pPosition )

protected

Returns

true if the pPosition is routable, uses its altitude to figure out floor.

virtual bool VgMyRoutingHelper::isRoutePointSet ( VgMyRouteCreator::RoutePoint  pPoint )

virtual

Parameters

pPoint

RoutePoint to test.

Returns

True if the specified point is already set.

Implements VgMyRouteCreator.

bool VgMyRoutingHelper::isVisible ( )

virtual

Returns

TRUE if this Object is visible (i.e. shown). FALSE otherwise.

Implements VgMyRouteDisplay.

void VgMyRoutingHelper::removeRouteMarkers ( )

protected

void VgMyRoutingHelper::requestRoute ( const VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode >  pOrigin, const std::vector< VgEngine::VgRefPtr< VgRoutingModule::VgIRoutingNode > > &  pDestinations  )

protected

Requests a route from the routing module given some routing nodes.

Parameters

pOrigin	routing node to start from
pDestinations	array of at least size 1 of routing nodes.

virtual void VgMyRoutingHelper::resetRoutePoint ( VgMyRouteCreator::RoutePoint  pPoint )

virtual

Resets the place ID associated with a point.

Parameters

pPoint

RoutePoint to reset.

Implements VgMyRouteCreator.

virtual void VgMyRoutingHelper::resetRoutingNodeParameters ( )

virtual

Resets the routing node parameters to their initial state.

Implements VgMyRouteCreator.

virtual void VgMyRoutingHelper::resetRoutingRequestParameters ( )

virtual

Resets the routing request parameters to their initial state.

Implements VgMyRouteCreator.

virtual void VgMyRoutingHelper::setAvoidStairs ( bool  pDisabledFriendly )

virtual

Sets up the routing request parameters to include/exclude non disabled-friendly attributes.

Parameters

pDisabledFriendly

True if disabled friendly routing is wanted, false if not

Implements VgMyRouteCreator.

void VgMyRoutingHelper::setPoiCallback ( const std::string &  pIdentifier, VgEngine::VgRefPtr< Vg3DModule::VgIGeometryCallback >const &  pCallback  )

virtual

Implementation of interface : VgMyPoiConfigurationSetter.

Implements VgMyPoiConfigurationSetter.

void VgMyRoutingHelper::setRouteMarkerHeight ( float  pHeight )

virtual

Set route marker height.

Adjust so that the marker appears to be anchored to the top of desired surface.

Parameters

pHeight

The height of the route markers in meters.

Implements VgMyRouteCreator.

virtual bool VgMyRoutingHelper::setRoutePoint ( VgMyRouteCreator::RoutePoint  pPoint, const std::string &  pPlaceID  )

virtual

Implementation of interface : VgMyRouteCreator.

Implements VgMyRouteCreator.

virtual bool VgMyRoutingHelper::setRoutePoint ( RoutePoint  pPoint, const VgEngine::VgPosition &  pPosition  )

virtual

Sets a RoutePoint to a position within the map.

Finds the closest routing node from the routing network to the given position.

• pPosition.getMZOrAltitude() is used to determine what layer the position is associated to.
• Use the method VgMapModule::VgIMapModule::getHeightRangeForLayer() to find the appropriate altitude value for pPosition. For example:

  ...
  double lFloorHeight = 0.0;

  float pHeightMax;
  float pHeightMin;
  std::sring lLayerName = "0";
  if ( mMapModule->getHeightRangeForLayer(pLayer, pHeightMax, pHeightMin))
  {
      lFloorHeight = ((pHeightMax + pHeightMin) / 2);
  }

  lPosition.mZOrAltitude = lFloorHeight;
  ...

  Parameters

  pPoint	RoutePoint to set
  pPosition	Position to associates with pPoint.

  Returns

  False if the pPosition is not routable.

Implements VgMyRouteCreator.

bool VgMyRoutingHelper::setRoutePoint	(	RoutePoint	pPoint,
		const VgEngine::VgPosition &	pPosition,
		const std::string &	pLayerName
	)

Sets a RoutePoint to a position and layer within the map.

Used when the layername for a given position cannot be deduced from its altitude, for example multiple building's.

Parameters

pPoint	RoutePoint to set
pPosition	Position to associates with pPoint.
pLayerName	where the position is, pPosition.mZOrAltitude should be within the minimum and maximum heights for the layer

Version

2.1.2

Returns

False if the pPosition is not routable.

void VgMyRoutingHelper::setRouteStyle ( VgMyRouteStyler::RouteStyle  pRouteStyle, bool  pRecomputeRoute = true  )

virtual

Change the routing style of lines generated by the routing helper.

Parameters

pRouteStyle	route style
pRecomputeRoute

Implements VgMyRouteCreator.

void VgMyRoutingHelper::setRouteWidth ( float  pWidth )

virtual

Determines the width of the created route.

Parameters

pWidth

The width of the route in meters

Implements VgMyRouteCreator.

void VgMyRoutingHelper::show ( )

virtual

Declaration from interface : VgMyDisplayable.

Implements VgMyRouteDisplay.

Member Data Documentation

const std::string VgMyRoutingHelper::kEndPointStrID

static

const std::string VgMyRoutingHelper::kStartPointStrID

static

VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback > VgMyRoutingHelper::mCallback

protected

std::map<VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr< Vg3DModule::VgPoint > > VgMyRoutingHelper::mHighlightedRoutePoints

protected

VgEngine::VgRefPtr< VgEngine::VgAnimationDescriptor > VgMyRoutingHelper::mHighlightedRoutePointsAnimationDescr

protected

VgEngine::VgInstanceFactory* VgMyRoutingHelper::mInstanceFactory

protected

bool VgMyRoutingHelper::mIsRouteVisible

protected

VgMyLayerAndCameraHandler* VgMyRoutingHelper::mLayerAndCameraHandler

protected

std::vector< LineObject > VgMyRoutingHelper::mLines

protected

std::list< VgEngine::VgRefPtr< Vg3DModule::VgLink > > VgMyRoutingHelper::mLinks

protected

VgMapModule::VgIMapModule* VgMyRoutingHelper::mMapModule

protected

float VgMyRoutingHelper::mObjectHeightOffset

protected

std::vector< PointObject > VgMyRoutingHelper::mPoints

protected

VgRoutingModule::VgIRouteConverter* VgMyRoutingHelper::mRouteConverter2D

protected

POICallbackMap VgMyRoutingHelper::mRoutePoiCallbacks

protected

std::map<VgMyRouteCreator::RoutePoint, VgEngine::VgRefPtr<VgRoutingModule::VgIRoutingNode> > VgMyRoutingHelper::mRoutePoints

protected

VgRoutingModule::VgIRoutingSolver* VgMyRoutingHelper::mRouteSolver

protected

VgMyRouteStyler::RouteStyle VgMyRoutingHelper::mRouteStyle

protected

VgMyRouteStyler VgMyRoutingHelper::mRouteStyler

protected

float VgMyRoutingHelper::mRouteWidth

protected

VgRoutingModule::VgIRoutingModule* VgMyRoutingHelper::mRoutingModule

protected

VgRoutingModule::VgIRoutingNodeParameters VgMyRoutingHelper::mRoutingNodeParameters

protected

VgRoutingModule::VgIRouteRequestParameters VgMyRoutingHelper::mRoutingRequestParameters

protected

VgMyTextureLoader* VgMyRoutingHelper::mTextureLoader

protected

VgApplication::VgIApplication* VgMyRoutingHelper::mVgApplication

protected

---

The documentation for this class was generated from the following file:

• VgMyRoutingHelper.h
