Interface for Objects that handle the display of the layers, the camera and their respective animations. More...

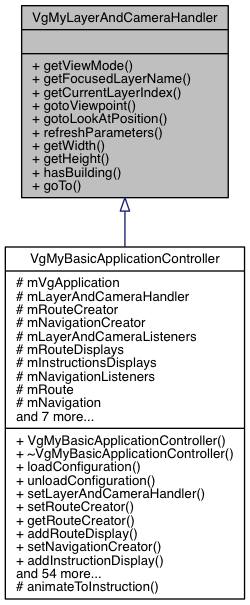

Inheritance diagram for VgMyLayerAndCameraHandler:

Public Types
enum	eVgViewMode { eVgViewModeGlobal, eVgViewModeBuilding, eVgViewModeFloor }
	View mode used to display a the map. More...

Public Member Functions
virtual eVgViewMode	getViewMode () const =0

virtual const std::string &	getFocusedLayerName ()=0
	Gets the focused layer's name. More...

virtual unsigned int	getCurrentLayerIndex () const =0
	Gets the focused layer's index. More...

virtual void	gotoViewpoint (const VgEngine::VgIViewPoint &pViewPoint, const std::string &pLayerName, bool pIsAnimated=true)=0
	Moves the camera to a specific view point. More...

virtual void	gotoLookAtPosition (const VgEngine::VgPosition &pPosition, const std::string &pLayerName, bool pIsAnimated=true)=0
	Moves the camera so that it is focused on a given position. More...

virtual void	refreshParameters (unsigned int pWidth, unsigned int pHeight)=0
	Refreshes the inner parameters. More...

virtual unsigned int	getWidth ()=0
	Retrieves the map view's width. More...

virtual unsigned int	getHeight ()=0
	Retrieves the map view's height. More...

virtual bool	hasBuilding (const std::string &pBuildingId) const =0

virtual void	goTo (eVgViewMode pMode, const std::string &pBuilding, const std::string &pFloorName, bool pIsAnimated)=0
	Moves the camera and floors according to a specific visualization mode. More...

Detailed Description

Interface for Objects that handle the display of the layers, the camera and their respective animations.

It basically handles 3 layer views : global, building and floor view. A Global View displays multiple layers. A Detailed View displays only one layer.

Member Enumeration Documentation

enum VgMyLayerAndCameraHandler::eVgViewMode

View mode used to display a the map.

Enumerator
eVgViewModeGlobal
eVgViewModeBuilding
eVgViewModeFloor

Member Function Documentation

virtual unsigned int VgMyLayerAndCameraHandler::getCurrentLayerIndex ( ) const

pure virtual

Gets the focused layer's index.

The "focused" layer is the one that is displayed in the detailled view. if the global view is displayed, the focused layer should be the most visible one.

Returns: The focused layer's index.

Implemented in VgMyBasicApplicationController.

virtual const std::string& VgMyLayerAndCameraHandler::getFocusedLayerName ( )

pure virtual

Gets the focused layer's name.

The "focused" layer is the one that is displayed in the detailled view. if the global view is displayed, the focused layer should be the most visible one.

Returns: The focused layer's name.

Implemented in VgMyBasicApplicationController.

virtual unsigned int VgMyLayerAndCameraHandler::getHeight ( )

pure virtual

Retrieves the map view's height.

Implemented in VgMyBasicApplicationController.

virtual eVgViewMode VgMyLayerAndCameraHandler::getViewMode ( ) const

pure virtual

Returns: the current view mode.

Implemented in VgMyBasicApplicationController.

virtual unsigned int VgMyLayerAndCameraHandler::getWidth ( )

pure virtual

Retrieves the map view's width.

Implemented in VgMyBasicApplicationController.

virtual void VgMyLayerAndCameraHandler::goTo	(	eVgViewMode	pMode,
		const std::string &	pBuilding,
		const std::string &	pFloorName,
		bool	pIsAnimated
	)

pure virtual

Moves the camera and floors according to a specific visualization mode.

When passing Global view mode, both building and floor values are ignored When passing Building view mode, the floor name is optional. If not specified, it will display the given building's ground floor. When passing Floor view mode, pBuilding should contains the given floor. If it is not the case, the ground floor of the given vuilding will be displaed instead.

Parameters

pMode	View mode to enable
pBuilding	Building to go to. (optional if the view mode is global)
pFloorName	Floor to go to. (optional if the view mode is global or building)
pIsAnimated	Pass true if you want both Camera and Layers to be animated from their actual position to their target state.

Implemented in VgMyBasicApplicationController.

virtual void VgMyLayerAndCameraHandler::gotoLookAtPosition	(	const VgEngine::VgPosition &	pPosition,
		const std::string &	pLayerName,
		bool	pIsAnimated = `true`
	)

pure virtual

Moves the camera so that it is focused on a given position.

The camera's view, heading, pitch are always conserved. The altitude of pPosition is automatically set to zero.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note: If the stack is in global view, the camera will not change.

Parameters

pPosition	The position to focus on.
pLayerName	The name of the layer associated with the position.
pIsAnimated	If true then animates the transition, otherwise does not.

Implemented in VgMyBasicApplicationController.

virtual void VgMyLayerAndCameraHandler::gotoViewpoint	(	const VgEngine::VgIViewPoint &	pViewPoint,
		const std::string &	pLayerName,
		bool	pIsAnimated = `true`
	)

pure virtual

Moves the camera to a specific view point.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note: If the stack is in global view, the camera will not change.

Parameters

pViewPoint	The view point to associate with the camera
pLayerName	The layer which should be given the focus.
pIsAnimated	If true then animates the transition, otherwise does not.

Implemented in VgMyBasicApplicationController.

virtual bool VgMyLayerAndCameraHandler::hasBuilding ( const std::string & pBuildingId ) const

pure virtual

Parameters

pBuildingId The unique building identifier

Returns: true if the handler has a building with this id. If the map does not support buildings, returns false.

Implemented in VgMyBasicApplicationController.

virtual void VgMyLayerAndCameraHandler::refreshParameters	(	unsigned int	pWidth,
		unsigned int	pHeight
	)

pure virtual

Refreshes the inner parameters.

Typically, subclasses can use it to recompute their view parameters when the rendering size changes.

Implemented in VgMyBasicApplicationController.

The documentation for this class was generated from the following file:

VgMyLayerAndCameraHandler.h
