VgMyBasicApplicationController Class Reference

Implements a basic logic to handle the map display & behaviour. More...

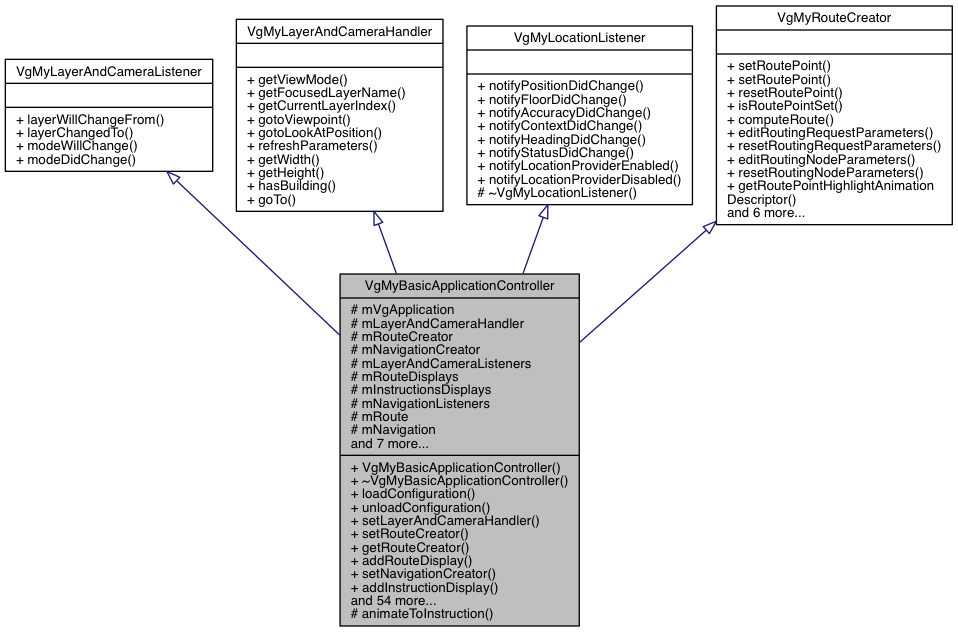

Inheritance diagram for VgMyBasicApplicationController:

Public Member Functions
	VgMyBasicApplicationController (VgApplication::VgIApplication &pApplication, VgMyTextureLoader *pTextureLoader)
virtual	~VgMyBasicApplicationController ()
bool	loadConfiguration (const std::string &pConfiguration, const unsigned int pSecretKey, const std::string &pLicenseURL, const int pDataset=0)
void	unloadConfiguration ()
void	setLayerAndCameraHandler (VgMyLayerAndCameraHandler *pHandler)
void	setRouteCreator (VgMyRouteCreator *pCreator)
VgMyRouteCreator *	getRouteCreator () const
void	addRouteDisplay (VgMyRouteDisplay *pDisplay)
void	setNavigationCreator (VgMyNavigationCreator *pCreator)
void	addInstructionDisplay (VgMyInstructionDisplay *pDisplay)
void	removeInstructionDisplay (VgMyInstructionDisplay *pDisplay)
void	addNavigationListener (VgMyNavigationListener *pListener)
	Add navigation listener in order to receive navigation related notifications. More...
void	removeNavigationListener (VgMyNavigationListener *pListener)
	Add navigation listener in order to receive navigation related notifications. More...
bool	has3DModule () const
bool	hasMapModule () const
bool	hasRoutingModule () const
bool	hasNavigationModule () const
void	addLayerAndCameraListener (VgMyLayerAndCameraListener *pListener)
void	removeLayerAndCameraListener (VgMyLayerAndCameraListener *pListener)
void	deleteRoute ()
bool	setRoutePoint (VgMyRouteCreator::RoutePoint pPoint, const std::string &pPlaceID)
	Implementation of interface : VgMyRouteCreator. More...
bool	setRoutePoint (VgMyRouteCreator::RoutePoint pPoint, const VgEngine::VgPosition &pPosition)
	Sets a RoutePoint to a position within the map. More...
void	resetRoutePoint (VgMyRouteCreator::RoutePoint pPoint)
	Resets the place ID associated with a point. More...
bool	isRoutePointSet (VgMyRouteCreator::RoutePoint pPoint)
void	computeRoute ()
	Computes a route. More...
VgRoutingModule::VgIRouteRequestParameters *	editRoutingRequestParameters ()
	Returns a reference to the routing request parameters that computeRoute uses. More...
void	resetRoutingRequestParameters ()
	Resets the routing request parameters to their initial state. More...
VgRoutingModule::VgIRoutingNodeParameters *	editRoutingNodeParameters ()
	Returns a reference to the routing node parameters that getRoutingNode for a position uses. More...
void	resetRoutingNodeParameters ()
	Resets the routing node parameters to their initial state. More...
VgEngine::VgRefPtr < VgEngine::VgAnimationDescriptor >	getRoutePointHighlightAnimationDescriptor ()
	Returns the descriptor of an animation intended to emphasize routing points. More...
void	setAvoidStairs (bool pDisabledFriendly)
	Sets up the routing request parameters to include/exclude non disabled-friendly attributes. More...
void	setRouteWidth (float pWidth)
	Determines the width of the created route. More...
float	getRouteWidth ()
	Returns the current width of the created route. More...
void	setRouteMarkerHeight (float pHeight)
	Set route marker height. More...
void	layerWillChangeFrom (VgMyLayerAndCameraHandler *pSender, const std::string &pFloorFrom, const std::string &pFloorTo)
	Notification that the layer focus is about to change. More...
void	layerChangedTo (VgMyLayerAndCameraHandler *pSender, const std::string &pFloorFrom, const std::string &pFloorTo)
	Notification that the layer focus did change. More...
void	modeWillChange (VgMyLayerAndCameraHandler *pSender, VgMyLayerAndCameraHandler::eVgViewMode pTargetMode)
	Notification that the mode will change. More...
void	modeDidChange (VgMyLayerAndCameraHandler *pSender, VgMyLayerAndCameraHandler::eVgViewMode pTargetMode)
	Notification that the mode has changed. More...
eVgViewMode	getViewMode () const
const std::string &	getFocusedLayerName ()
	Gets the focused layer's name. More...
void	gotoViewpoint (const VgEngine::VgIViewPoint &pViewPoint, const std::string &pLayerName, bool pIsAnimated=true)
	Moves the camera to a specific view point. More...
void	gotoLookAtPosition (const VgEngine::VgPosition &pPosition, const std::string &pLayerName, bool pIsAnimated=true)
	Moves the camera so that it is focused on a given position. More...
void	refreshParameters (unsigned int pWidth, unsigned int pHeight)
	Refreshes the inner parameters. More...
unsigned int	getWidth ()
	Retrieves the map view's width. More...
unsigned int	getHeight ()
	Retrieves the map view's height. More...
unsigned int	getCurrentLayerIndex () const
	Gets the focused layer's index. More...
bool	hasBuilding (const std::string &pBuildingId) const
void	goTo (eVgViewMode pMode, const std::string &pBuilding, const std::string &pFloorName, bool pIsAnimated)
	Moves the camera and floors according to a specific visualization mode. More...
virtual void	notifyRouteComputed (VgRoutingModule::VgRouteRequestStatus pStatus, VgEngine::VgRefPtr< VgRoutingModule::VgIRoute > const &pRoute)
virtual bool	notifyNavigationComputed (VgNavigationModule::VgNavigationRequestStatus pStatus, VgEngine::VgRefPtr< VgNavigationModule::VgINavigation > const &pNavigation)
virtual void	notifyPositionUpdated (VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &pNavigation, const VgEngine::VgPosition &pPosition, double pTime)
virtual void	notifyNewInstruction (VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &pNavigation, unsigned int pIndex)
virtual void	notifyPositionDidChange (const std::string &pProvider, const VgEngine::VgPosition &pPosition)
	Called when the location has changed. More...
virtual void	notifyFloorDidChange (const std::string &pProvider, const std::string &pFloor)
	Called when the floor has changed. More...
virtual void	notifyAccuracyDidChange (const std::string &pProvider, double pAccuracy)
	Called when the accuracy has changed. More...
virtual void	notifyContextDidChange (const std::string &pProvider, int pContext)
	Called when the context has changed. More...
virtual void	notifyHeadingDidChange (const std::string &pProvider, double pHeading)
	Called when the heading has changed. More...
virtual void	notifyStatusDidChange (const std::string &pProvider, int pStatus)
	Called when the status has changed. More...
virtual void	notifyLocationProviderEnabled (const std::string &pProvider)
	Called when the provider is enabled. More...
virtual void	notifyLocationProviderDisabled (const std::string &pProvider)
	Called when the provider is disabled. More...
VgEngine::VgRefPtr < VgRoutingModule::VgIRouteCallback >	getRouteCallback ()
void	setRouteStyle (VgMyRouteStyler::RouteStyle pRouteStyle, bool pRecomputeRoute=true)
	Change the routing style of lines generated by the routing helper. More...
VgMyRouteStyler::RouteStyle	getRouteStyle () const
	get the current route style More...
void	goToInstruction (const unsigned int pInstructionIndex)

Protected Member Functions
void	animateToInstruction (VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &pNavigation, unsigned int pIndex)
Protected Member Functions inherited from VgMyLocationListener
virtual	~VgMyLocationListener ()

Protected Attributes
VgApplication::VgIApplication &	mVgApplication
VgMyLayerAndCameraHandler *	mLayerAndCameraHandler
VgMyRouteCreator *	mRouteCreator
VgMyNavigationCreator *	mNavigationCreator
std::list < VgMyLayerAndCameraListener * >	mLayerAndCameraListeners
std::list< VgMyRouteDisplay * >	mRouteDisplays
std::list < VgMyInstructionDisplay * >	mInstructionsDisplays
std::list < VgMyNavigationListener * >	mNavigationListeners
VgEngine::VgRefPtr < VgRoutingModule::VgIRoute >	mRoute
	Current Route of NULL if no route request succeed. More...
VgEngine::VgRefPtr < VgNavigationModule::VgINavigation >	mNavigation
	Current Navigation of NULL if no route request succeed. More...
unsigned int	mMaximumInstructionNumber
VgMyTextureLoader *	mTextureLoader
VgEngine::VgRefPtr < VgMyBasicRouteCallback >	mRouteCallback
VgEngine::VgRefPtr < VgMyBasicNavigationCallback >	mNavigationCallback
VgEngine::VgRefPtr < VgMyBasicNavigationListener >	mNavigationListener
std::string	mCurrentPhysicalFloor
	Used in conjuction with a position provider. More...
VgEngine::VgPosition	mCurrentPhysicalPosition
	Current physical position. More...

Additional Inherited Members
Public Types inherited from VgMyLayerAndCameraHandler
enum	eVgViewMode { eVgViewModeGlobal, eVgViewModeBuilding, eVgViewModeFloor }
	View mode used to display a the map. More...
Public Types inherited from VgMyRouteCreator
enum	RoutePoint {   eStart, eStop0, eStop1, eStop2,   eStop3, eStop4, eStop5, eStopMax = 7,   eEnd }
	The points that a route may have. More...

Detailed Description

Implements a basic logic to handle the map display & behaviour.

This helper class eases the common operations onto maps. Customize it at will to fit your own application.

This controller inherits from main listeners to act as a dispatcher. All objects related to the map management should somehow be registred to this controller.

Constructor & Destructor Documentation

VgMyBasicApplicationController::VgMyBasicApplicationController	(	VgApplication::VgIApplication &	pApplication,
		VgMyTextureLoader *	pTextureLoader
	)

virtual VgMyBasicApplicationController::~VgMyBasicApplicationController ( )

virtual

Member Function Documentation

void VgMyBasicApplicationController::addInstructionDisplay

(

VgMyInstructionDisplay *

pDisplay

)

void VgMyBasicApplicationController::addLayerAndCameraListener

(

VgMyLayerAndCameraListener *

pListener

)

void VgMyBasicApplicationController::addNavigationListener

(

VgMyNavigationListener *

pListener

)

Add navigation listener in order to receive navigation related notifications.

Parameters

pListener

Navigation listener to receive

void VgMyBasicApplicationController::addRouteDisplay

(

VgMyRouteDisplay *

pDisplay

)

void VgMyBasicApplicationController::animateToInstruction ( VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &  pNavigation, unsigned int  pIndex  )

protected

void VgMyBasicApplicationController::computeRoute ( )

virtual

Computes a route.

Remarks

Works only if both end points are set.

Calling this method often will result in poor performance of the map.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::deleteRoute

(

)

VgRoutingModule::VgIRoutingNodeParameters* VgMyBasicApplicationController::editRoutingNodeParameters ( )

virtual

Returns a reference to the routing node parameters that getRoutingNode for a position uses.

Used for special configurations, for example you may want to use eRoutingNodeOptionsOnEdge and exclude the modality "shuttle" on edges.

Returns

a reference to the routing node parameters to be used on the next getRoutingNode for a position.

Implements VgMyRouteCreator.

VgRoutingModule::VgIRouteRequestParameters* VgMyBasicApplicationController::editRoutingRequestParameters ( )

virtual

Returns a reference to the routing request parameters that computeRoute uses.

Returns

a reference to the routing request parameters to be used on the next computeRoute.

Implements VgMyRouteCreator.

unsigned int VgMyBasicApplicationController::getCurrentLayerIndex ( ) const

virtual

Gets the focused layer's index.

The "focused" layer is the one that is displayed in the detailled view. if the global view is displayed, the focused layer should be the most visible one.

Returns

The focused layer's index.

Implements VgMyLayerAndCameraHandler.

const std::string& VgMyBasicApplicationController::getFocusedLayerName ( )

virtual

Gets the focused layer's name.

The "focused" layer is the one that is displayed in the detailled view. if the global view is displayed, the focused layer should be the most visible one.

Returns

The focused layer's name.

Implements VgMyLayerAndCameraHandler.

unsigned int VgMyBasicApplicationController::getHeight ( )

virtual

Retrieves the map view's height.

Implements VgMyLayerAndCameraHandler.

VgEngine::VgRefPtr< VgRoutingModule::VgIRouteCallback > VgMyBasicApplicationController::getRouteCallback ( )

inline

References mRouteCallback.

VgMyRouteCreator* VgMyBasicApplicationController::getRouteCreator

(

)

const

VgEngine::VgRefPtr< VgEngine::VgAnimationDescriptor > VgMyBasicApplicationController::getRoutePointHighlightAnimationDescriptor ( )

virtual

Returns the descriptor of an animation intended to emphasize routing points.

Implements VgMyRouteCreator.

VgMyRouteStyler::RouteStyle VgMyBasicApplicationController::getRouteStyle ( ) const

virtual

get the current route style

Returns

current route style.

Implements VgMyRouteCreator.

float VgMyBasicApplicationController::getRouteWidth ( )

virtual

Returns the current width of the created route.

Returns

The current width in meters

Implements VgMyRouteCreator.

eVgViewMode VgMyBasicApplicationController::getViewMode ( ) const

virtual

Returns

the current view mode.

Implements VgMyLayerAndCameraHandler.

unsigned int VgMyBasicApplicationController::getWidth ( )

virtual

Retrieves the map view's width.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::goTo ( eVgViewMode  pMode, const std::string &  pBuilding, const std::string &  pFloorName, bool  pIsAnimated  )

virtual

Moves the camera and floors according to a specific visualization mode.

When passing Global view mode, both building and floor values are ignored When passing Building view mode, the floor name is optional. If not specified, it will display the given building's ground floor. When passing Floor view mode, pBuilding should contains the given floor. If it is not the case, the ground floor of the given vuilding will be displaed instead.

Parameters

pMode	View mode to enable
pBuilding	Building to go to. (optional if the view mode is global)
pFloorName	Floor to go to. (optional if the view mode is global or building)
pIsAnimated	Pass true if you want both Camera and Layers to be animated from their actual position to their target state.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::goToInstruction

(

const unsigned int

pInstructionIndex

)

void VgMyBasicApplicationController::gotoLookAtPosition ( const VgEngine::VgPosition &  pPosition, const std::string &  pLayerName, bool  pIsAnimated = true  )

virtual

Moves the camera so that it is focused on a given position.

The camera's view, heading, pitch are always conserved. The altitude of pPosition is automatically set to zero.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note

If the stack is in global view, the camera will not change.

Parameters

pPosition	The position to focus on.
pLayerName	The name of the layer associated with the position.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::gotoViewpoint ( const VgEngine::VgIViewPoint &  pViewPoint, const std::string &  pLayerName, bool  pIsAnimated = true  )

virtual

Moves the camera to a specific view point.

If the pLayerName isn't the currently focused layer, then before any camera movement is invoked, pLayerName becomes the focused layer.

Note

If the stack is in global view, the camera will not change.

Parameters

pViewPoint	The view point to associate with the camera
pLayerName	The layer which should be given the focus.
pIsAnimated	If true then animates the transition, otherwise does not.

Implements VgMyLayerAndCameraHandler.

bool VgMyBasicApplicationController::has3DModule

(

)

const

bool VgMyBasicApplicationController::hasBuilding ( const std::string &  pBuildingId ) const

virtual

Parameters

pBuildingId

The unique building identifier

Returns

true if the handler has a building with this id. If the map does not support buildings, returns false.

Implements VgMyLayerAndCameraHandler.

bool VgMyBasicApplicationController::hasMapModule

(

)

const

bool VgMyBasicApplicationController::hasNavigationModule

(

)

const

bool VgMyBasicApplicationController::hasRoutingModule

(

)

const

bool VgMyBasicApplicationController::isRoutePointSet ( VgMyRouteCreator::RoutePoint  pPoint )

virtual

Parameters

pPoint

RoutePoint to test.

Returns

True if the specified point is already set.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::layerChangedTo ( VgMyLayerAndCameraHandler *  pSender, const std::string &  pFloorFrom, const std::string &  pFloorTo  )

virtual

Notification that the layer focus did change.

Parameters

pSender
pFloorFrom	The layer which previously had the focus.
pFloorTo	The layer which currently has the focus.

Remarks

do not use, as it is not called yet, use layerWillChangeFrom.

Implements VgMyLayerAndCameraListener.

void VgMyBasicApplicationController::layerWillChangeFrom ( VgMyLayerAndCameraHandler *  pSender, const std::string &  pFloorFrom, const std::string &  pFloorTo  )

virtual

Notification that the layer focus is about to change.

Parameters

pSender
pFloorFrom	The layer which currently has focus
pFloorTo	The layer which will soon have the focus

Implements VgMyLayerAndCameraListener.

bool VgMyBasicApplicationController::loadConfiguration	(	const std::string &	pConfiguration,
		const unsigned int	pSecretKey,
		const std::string &	pLicenseURL,
		const int	pDataset = 0
	)

void VgMyBasicApplicationController::modeDidChange ( VgMyLayerAndCameraHandler *  pSender, VgMyLayerAndCameraHandler::eVgViewMode  pTargetMode  )

virtual

Notification that the mode has changed.

Parameters

pSender
pTargetMode	The mode which which is currently active.

Implements VgMyLayerAndCameraListener.

void VgMyBasicApplicationController::modeWillChange ( VgMyLayerAndCameraHandler *  pSender, VgMyLayerAndCameraHandler::eVgViewMode  pTargetMode  )

virtual

Notification that the mode will change.

Parameters

pSender
pTargetMode	The mode which will soon be activated.

Implements VgMyLayerAndCameraListener.

virtual void VgMyBasicApplicationController::notifyAccuracyDidChange ( const std::string &  pProvider, double  pAccuracy  )

virtual

Called when the accuracy has changed.

Parameters

pProvider	The location provider responsible for sending the notification.
pAccuracy	The new accuracy

Implements VgMyLocationListener.

virtual void VgMyBasicApplicationController::notifyContextDidChange ( const std::string &  pProvider, int  pContext  )

virtual

Called when the context has changed.

Parameters

pProvider	The location provider responsible for sending the notification.
pContext	The new context

Implements VgMyLocationListener.

virtual void VgMyBasicApplicationController::notifyFloorDidChange ( const std::string &  pProvider, const std::string &  pFloor  )

virtual

Called when the floor has changed.

Parameters

pProvider	The location provider responsible for sending the notification.
pFloor	The new floor

Implements VgMyLocationListener.

virtual void VgMyBasicApplicationController::notifyHeadingDidChange ( const std::string &  pProvider, double  pHeading  )

virtual

Called when the heading has changed.

Heading is the horizontal direction of travel of this device, and is not related to the device orientation.

Parameters

pProvider	The location provider responsible for sending the notification.
pHeading	The new heading. The valid range for the heading is [0.0, 360.0]. Where 0.0 is North, and increasing values starts towards the East.

Implements VgMyLocationListener.

virtual void VgMyBasicApplicationController::notifyLocationProviderDisabled ( const std::string &  pProvider )

virtual

Called when the provider is disabled.

Parameters

pProvider

The location provider responsible for sending the notification.

Implements VgMyLocationListener.

virtual void VgMyBasicApplicationController::notifyLocationProviderEnabled ( const std::string &  pProvider )

virtual

Called when the provider is enabled.

Parameters

pProvider

The location provider responsible for sending the notification.

Implements VgMyLocationListener.

virtual bool VgMyBasicApplicationController::notifyNavigationComputed ( VgNavigationModule::VgNavigationRequestStatus  pStatus, VgEngine::VgRefPtr< VgNavigationModule::VgINavigation > const &  pNavigation  )

virtual

virtual void VgMyBasicApplicationController::notifyNewInstruction ( VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &  pNavigation, unsigned int  pIndex  )

virtual

virtual void VgMyBasicApplicationController::notifyPositionDidChange ( const std::string &  pProvider, const VgEngine::VgPosition &  pPosition  )

virtual

Called when the location has changed.

Parameters

pProvider	The location provider responsible for sending the notification
pPosition	The new position

Implements VgMyLocationListener.

virtual void VgMyBasicApplicationController::notifyPositionUpdated ( VgEngine::VgConstRefPtr< VgNavigationModule::VgINavigation > const &  pNavigation, const VgEngine::VgPosition &  pPosition, double  pTime  )

virtual

virtual void VgMyBasicApplicationController::notifyRouteComputed ( VgRoutingModule::VgRouteRequestStatus  pStatus, VgEngine::VgRefPtr< VgRoutingModule::VgIRoute > const &  pRoute  )

virtual

virtual void VgMyBasicApplicationController::notifyStatusDidChange ( const std::string &  pProvider, int  pStatus  )

virtual

Called when the status has changed.

Parameters

pProvider	The location provider responsible for sending the notification.
pStatus	The new status.

See Also

VgMyLocationProvider for available values.

Implements VgMyLocationListener.

void VgMyBasicApplicationController::refreshParameters ( unsigned int  pWidth, unsigned int  pHeight  )

virtual

Refreshes the inner parameters.

Typically, subclasses can use it to recompute their view parameters when the rendering size changes.

Implements VgMyLayerAndCameraHandler.

void VgMyBasicApplicationController::removeInstructionDisplay

(

VgMyInstructionDisplay *

pDisplay

)

void VgMyBasicApplicationController::removeLayerAndCameraListener

(

VgMyLayerAndCameraListener *

pListener

)

void VgMyBasicApplicationController::removeNavigationListener

(

VgMyNavigationListener *

pListener

)

Add navigation listener in order to receive navigation related notifications.

Parameters

pListener

Navigation listener to receive

void VgMyBasicApplicationController::resetRoutePoint ( VgMyRouteCreator::RoutePoint  pPoint )

virtual

Resets the place ID associated with a point.

Parameters

pPoint

RoutePoint to reset.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::resetRoutingNodeParameters ( )

virtual

Resets the routing node parameters to their initial state.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::resetRoutingRequestParameters ( )

virtual

Resets the routing request parameters to their initial state.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::setAvoidStairs ( bool  pDisabledFriendly )

virtual

Sets up the routing request parameters to include/exclude non disabled-friendly attributes.

Parameters

pDisabledFriendly

True if disabled friendly routing is wanted, false if not

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::setLayerAndCameraHandler

(

VgMyLayerAndCameraHandler *

pHandler

)

void VgMyBasicApplicationController::setNavigationCreator

(

VgMyNavigationCreator *

pCreator

)

void VgMyBasicApplicationController::setRouteCreator

(

VgMyRouteCreator *

pCreator

)

void VgMyBasicApplicationController::setRouteMarkerHeight ( float  pHeight )

virtual

Set route marker height.

Adjust so that the marker appears to be anchored to the top of desired surface.

Parameters

pHeight

The height of the route markers in meters.

Implements VgMyRouteCreator.

bool VgMyBasicApplicationController::setRoutePoint ( VgMyRouteCreator::RoutePoint  pPoint, const std::string &  pPlaceID  )

virtual

Implementation of interface : VgMyRouteCreator.

Implements VgMyRouteCreator.

bool VgMyBasicApplicationController::setRoutePoint ( VgMyRouteCreator::RoutePoint  pPoint, const VgEngine::VgPosition &  pPosition  )

virtual

Sets a RoutePoint to a position within the map.

Finds the closest routing node from the routing network to the given position.

• pPosition.getMZOrAltitude() is used to determine what layer the position is associated to.
• Use the method VgMapModule::VgIMapModule::getHeightRangeForLayer() to find the appropriate altitude value for pPosition. For example:

  ...
  double lFloorHeight = 0.0;

  float pHeightMax;
  float pHeightMin;
  std::sring lLayerName = "0";
  if ( mMapModule->getHeightRangeForLayer(pLayer, pHeightMax, pHeightMin))
  {
      lFloorHeight = ((pHeightMax + pHeightMin) / 2);
  }

  lPosition.mZOrAltitude = lFloorHeight;
  ...

  Parameters

  pPoint	RoutePoint to set
  pPosition	Position to associates with pPoint.

  Returns

  False if the pPosition is not routable.

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::setRouteStyle ( VgMyRouteStyler::RouteStyle  pRouteStyle, bool  pRecomputeRoute = true  )

virtual

Change the routing style of lines generated by the routing helper.

Parameters

pRouteStyle	route style
pRecomputeRoute

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::setRouteWidth ( float  pWidth )

virtual

Determines the width of the created route.

Parameters

pWidth

The width of the route in meters

Implements VgMyRouteCreator.

void VgMyBasicApplicationController::unloadConfiguration

(

)

Member Data Documentation

std::string VgMyBasicApplicationController::mCurrentPhysicalFloor

protected

Used in conjuction with a position provider.

Records the last received floor change notification.

VgEngine::VgPosition VgMyBasicApplicationController::mCurrentPhysicalPosition

protected

Current physical position.

Note the altitude is relative to the ground, and not the current floor. So from this position it's possible to determine the floor.

std::list<VgMyInstructionDisplay*> VgMyBasicApplicationController::mInstructionsDisplays

protected

VgMyLayerAndCameraHandler* VgMyBasicApplicationController::mLayerAndCameraHandler

protected

std::list<VgMyLayerAndCameraListener*> VgMyBasicApplicationController::mLayerAndCameraListeners

protected

unsigned int VgMyBasicApplicationController::mMaximumInstructionNumber

protected

VgEngine::VgRefPtr< VgNavigationModule::VgINavigation > VgMyBasicApplicationController::mNavigation

protected

Current Navigation of NULL if no route request succeed.

Remarks

Only this controller delete this object

VgEngine::VgRefPtr< VgMyBasicNavigationCallback > VgMyBasicApplicationController::mNavigationCallback

protected

VgMyNavigationCreator* VgMyBasicApplicationController::mNavigationCreator

protected

VgEngine::VgRefPtr< VgMyBasicNavigationListener > VgMyBasicApplicationController::mNavigationListener

protected

std::list<VgMyNavigationListener*> VgMyBasicApplicationController::mNavigationListeners

protected

VgEngine::VgRefPtr< VgRoutingModule::VgIRoute > VgMyBasicApplicationController::mRoute

protected

Current Route of NULL if no route request succeed.

Remarks

Only this controller delete this object

VgEngine::VgRefPtr< VgMyBasicRouteCallback > VgMyBasicApplicationController::mRouteCallback

protected

Referenced by getRouteCallback().

VgMyRouteCreator* VgMyBasicApplicationController::mRouteCreator

protected

std::list<VgMyRouteDisplay*> VgMyBasicApplicationController::mRouteDisplays

protected

VgMyTextureLoader* VgMyBasicApplicationController::mTextureLoader

protected

VgApplication::VgIApplication& VgMyBasicApplicationController::mVgApplication

protected

---

The documentation for this class was generated from the following file:

• VgMyBasicApplicationController.h
