VgEngine::VgSinusoidalVectorOffsetFunctorDescriptor Class Reference

This class implements descriptors for sinusoidal animation of vectors. More...

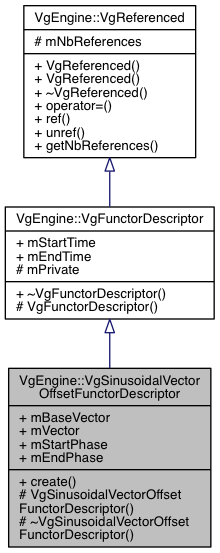

Inheritance diagram for VgEngine::VgSinusoidalVectorOffsetFunctorDescriptor:

Static Public Member Functions
static VgRefPtr < VgSinusoidalVectorOffsetFunctorDescriptor >	create ()
	This static method returns a new heap-allocated descriptor. More...

Public Attributes
float	mBaseVector [3]
	The base vector. More...
float	mVector [3]
	The vector along which we will animate (in local metric frame). More...
double	mStartPhase
	The sine function start phase (in radians). More...
double	mEndPhase
	The sine function end phase (in radians). More...
Public Attributes inherited from VgEngine::VgFunctorDescriptor
float	mStartTime
	The functor start time (relative to the animation's start time). More...
float	mEndTime
	The functor's end time (relative to the animation's start time). More...

Protected Member Functions
	VgSinusoidalVectorOffsetFunctorDescriptor ()
	Class constructor. More...
virtual	~VgSinusoidalVectorOffsetFunctorDescriptor ()
	Class destructor. More...
Protected Member Functions inherited from VgEngine::VgFunctorDescriptor
	VgFunctorDescriptor ()
	This class constructor is protected to prevent instantiation. More...

Friends
class	VgObjectBridge

Additional Inherited Members
Public Member Functions inherited from VgEngine::VgFunctorDescriptor
virtual	~VgFunctorDescriptor ()
	Class destructor. More...
Public Member Functions inherited from VgEngine::VgReferenced
	VgReferenced ()
	Constructor. More...
	VgReferenced (const VgReferenced &pThis)
	Copy constructor. More...
virtual	~VgReferenced ()
	Destructor. More...
VgReferenced &	operator= (const VgReferenced &pThis)
	Assignment operator. More...
void	ref () const
	This method is used to add a reference to this object. More...
int	unref () const
	This method is used to remove a reference to this object. More...
int	getNbReferences () const
	Retrieves the number of references to this object. More...
Protected Attributes inherited from VgEngine::VgFunctorDescriptor
Private *	mPrivate
Protected Attributes inherited from VgEngine::VgReferenced
int	mNbReferences
	The number of references to this object. More...

Detailed Description

This class implements descriptors for sinusoidal animation of vectors.

The sinusoidal vector animation will apply an offset vector weighted by a sinusoidal time-dependent function. The functors described by this class can be used for all animations channels that manage vectors as values. Formula is the following : f(t) = mBaseVector + sin(mStartPhase + t/mDuration * (mEndPhase-mStartPhase)) * mOffsetVector.

Note

There is no period (or frequency) parameter in this descriptor, because it will be deduced from the start/end phase and the animation duration.

The valid range for phase parameters is [-inf, +inf], but the precision will be (a lot) better for values around 0. To get a full sine cycle start phase should be 0 and the end phase 2 * Pi. To get more pulsations the range should be widened, but it is better to use [-phase, +phase] than [0, 2*phase]

Version

2.0.7729

Constructor & Destructor Documentation

VgEngine::VgSinusoidalVectorOffsetFunctorDescriptor::VgSinusoidalVectorOffsetFunctorDescriptor ( )

protected

Class constructor.

This can't be called publicly, instances must be obtained through the VgSinusoidalVectorOffsetFunctorDescriptor::create method.

virtual VgEngine::VgSinusoidalVectorOffsetFunctorDescriptor::~VgSinusoidalVectorOffsetFunctorDescriptor ( )

protectedvirtual

Class destructor.

Member Function Documentation

static VgRefPtr< VgSinusoidalVectorOffsetFunctorDescriptor > VgEngine::VgSinusoidalVectorOffsetFunctorDescriptor::create ( )

static

This static method returns a new heap-allocated descriptor.

It is the only method that should be used to instantiate new descriptors. It is a way to make sure no one will delete it, except the last VgRefPtr pointing to it.

Friends And Related Function Documentation

friend class VgObjectBridge

friend

Member Data Documentation

float VgEngine::VgSinusoidalVectorOffsetFunctorDescriptor::mBaseVector[3]

The base vector.

double VgEngine::VgSinusoidalVectorOffsetFunctorDescriptor::mEndPhase

The sine function end phase (in radians).

double VgEngine::VgSinusoidalVectorOffsetFunctorDescriptor::mStartPhase

The sine function start phase (in radians).

float VgEngine::VgSinusoidalVectorOffsetFunctorDescriptor::mVector[3]

The vector along which we will animate (in local metric frame).

---

The documentation for this class was generated from the following file:

• VgSinusoidalVectorOffsetFunctorDescriptor.h
